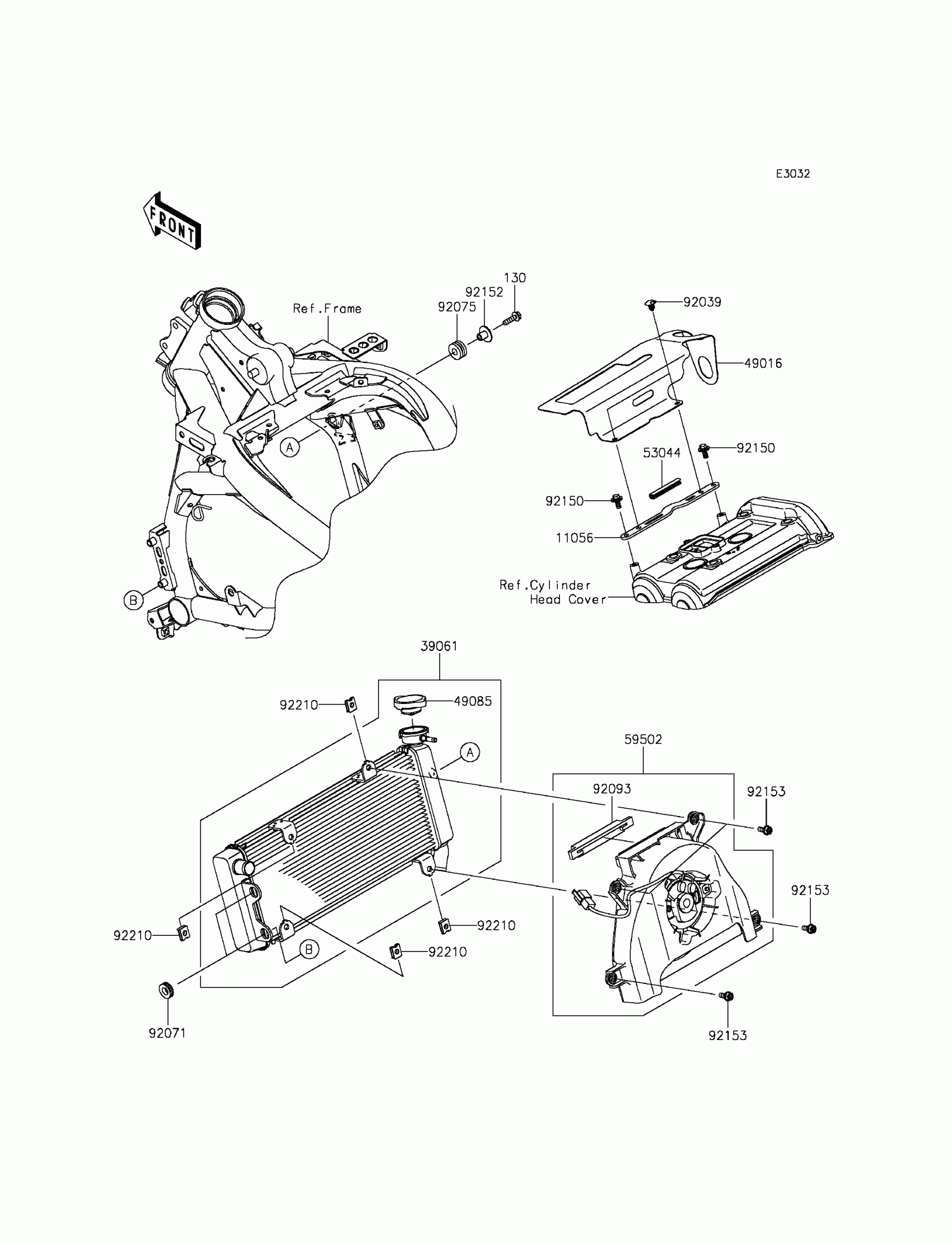

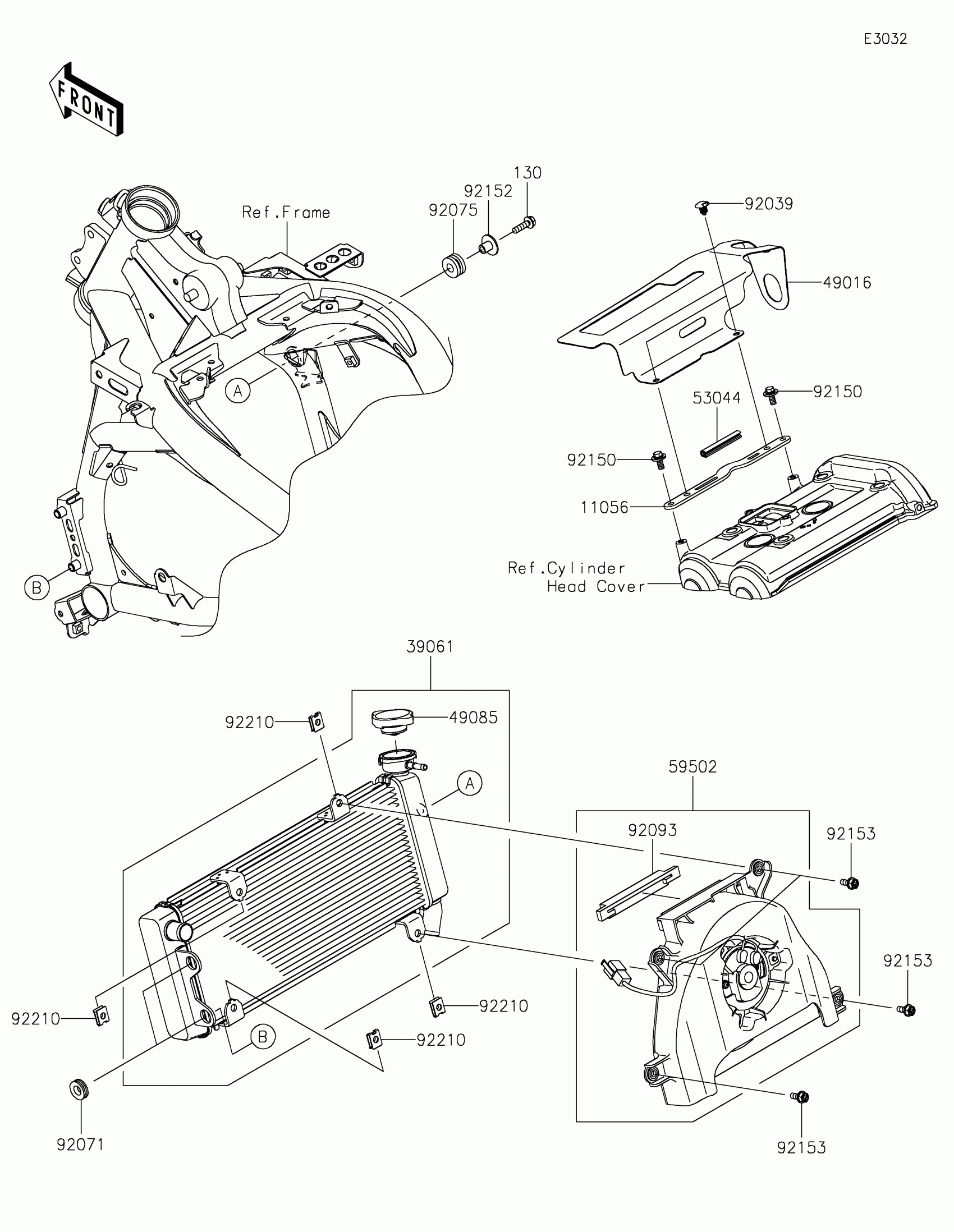

Kawasaki VERSYS® 650 ABS Radiator Diagram

Description

Price

11056

BRACKET

11056-7316

$6.24

130

BOLT-FLANGED,6X22

130BA0622

$1.29

39061

RADIATOR-ASSY

39061-0712

$861.42

49016

COVER-SEAL

49016-0632

$26.85

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

53044

TRIM

53044-0565

$3.35

59502

FAN-ASSY

59502-0603

$352.61

92039

RIVET

92039-0722

$1.63

92071

GROMMET

92071-1115

$5.46

92075

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL

92093-0636

$7.64

92150

BOLT,FLANGED,6X14

92150-1689

$3.94

92152

COLLAR,6.5X10X13.1

92152-0910

$1.63

92153

BOLT

92153-0531

$2.61

92210

NUT

92210-1323

$4.18
