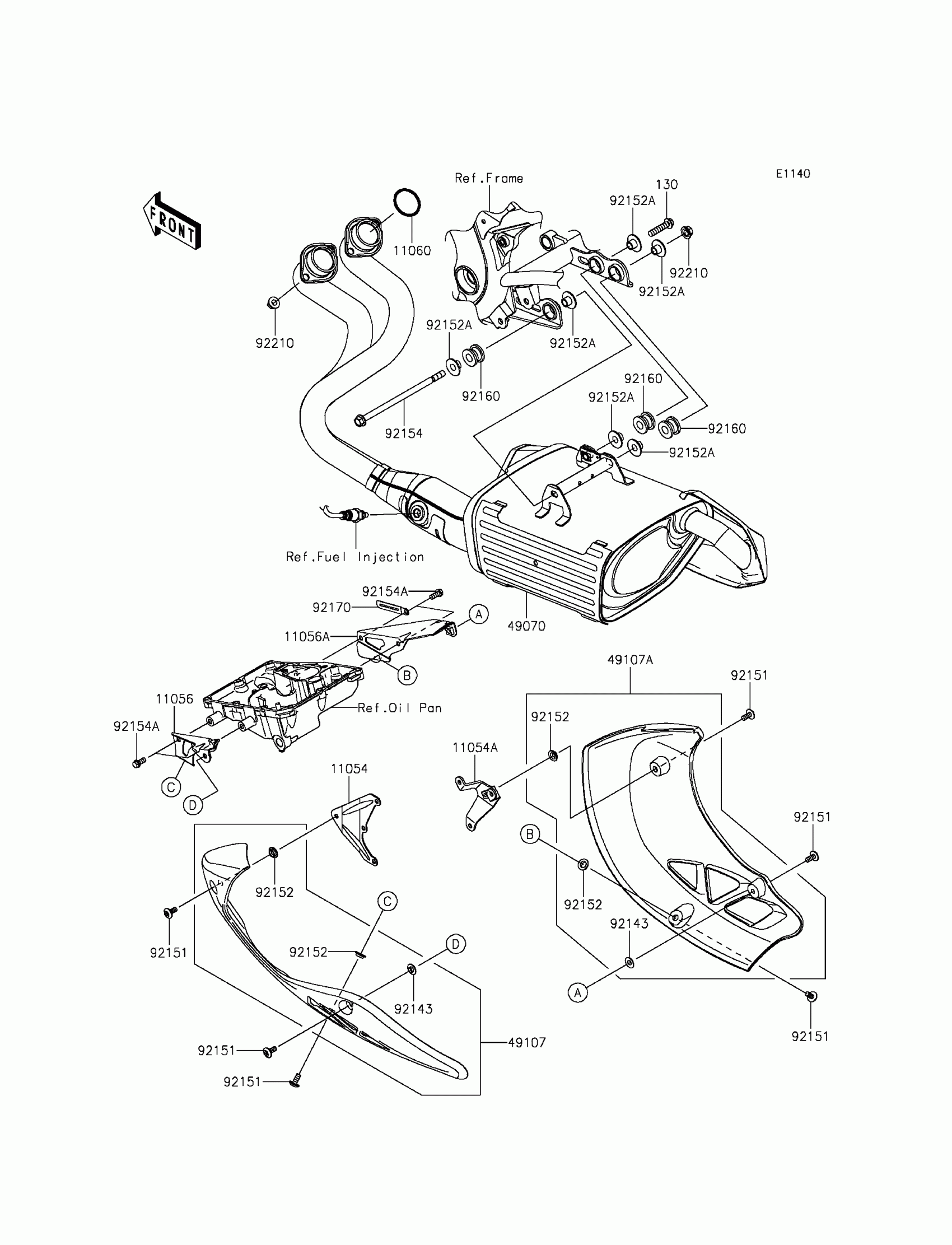

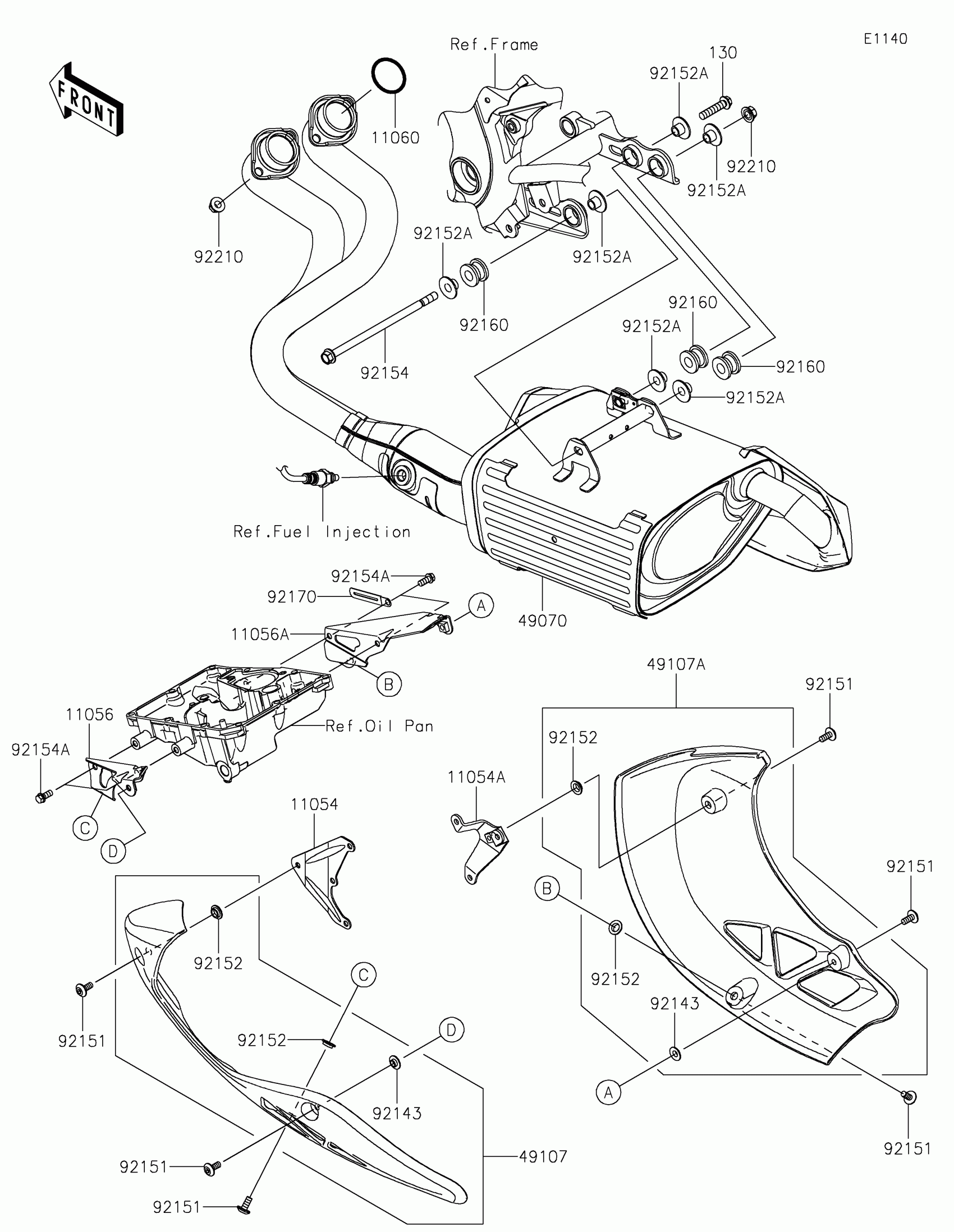

Kawasaki VERSYS® 650 ABS Muffler(s) Diagram

Description

Price

11054

BRACKET,EX.COVER,UPP,LH

11054-0420

$9.67

11054A

BRACKET,EX.COVER,UPP,RH

11054-0421

$11.93

11056

BRACKET,EX.COVER,LWR,LH

11056-3927

$11.77

11056A

BRACKET,EX.COVER,LWR,RH

11056-4298

$20.41

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$7.88

130

BOLT-FLANGED,8X35

130CD0835

$2.80

49070

MUFFLER-COMP

49070-0782

$1,009.01

49107

COVER-EXHAUST PIPE,LH,F.BLACK

49107-0081-6Z

$88.65

49107A

COVER-EXHAUST PIPE,RH,F.BLACK

49107-0082-6Z

$88.65

92143

COLLAR

92143-1087

$4.31

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-1692

$9.73

92154

BOLT,FLANGED,8X165

92154-0189

$10.05

92154A

BOLT,FLANGED,6X14

92154-0777

$2.67

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92170

CLAMP

92170-1514

$4.31

92210

NUT,8MM

92210-1114

$2.46
