- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2021
- VERSYS® 650 ABS
Ignition Switch

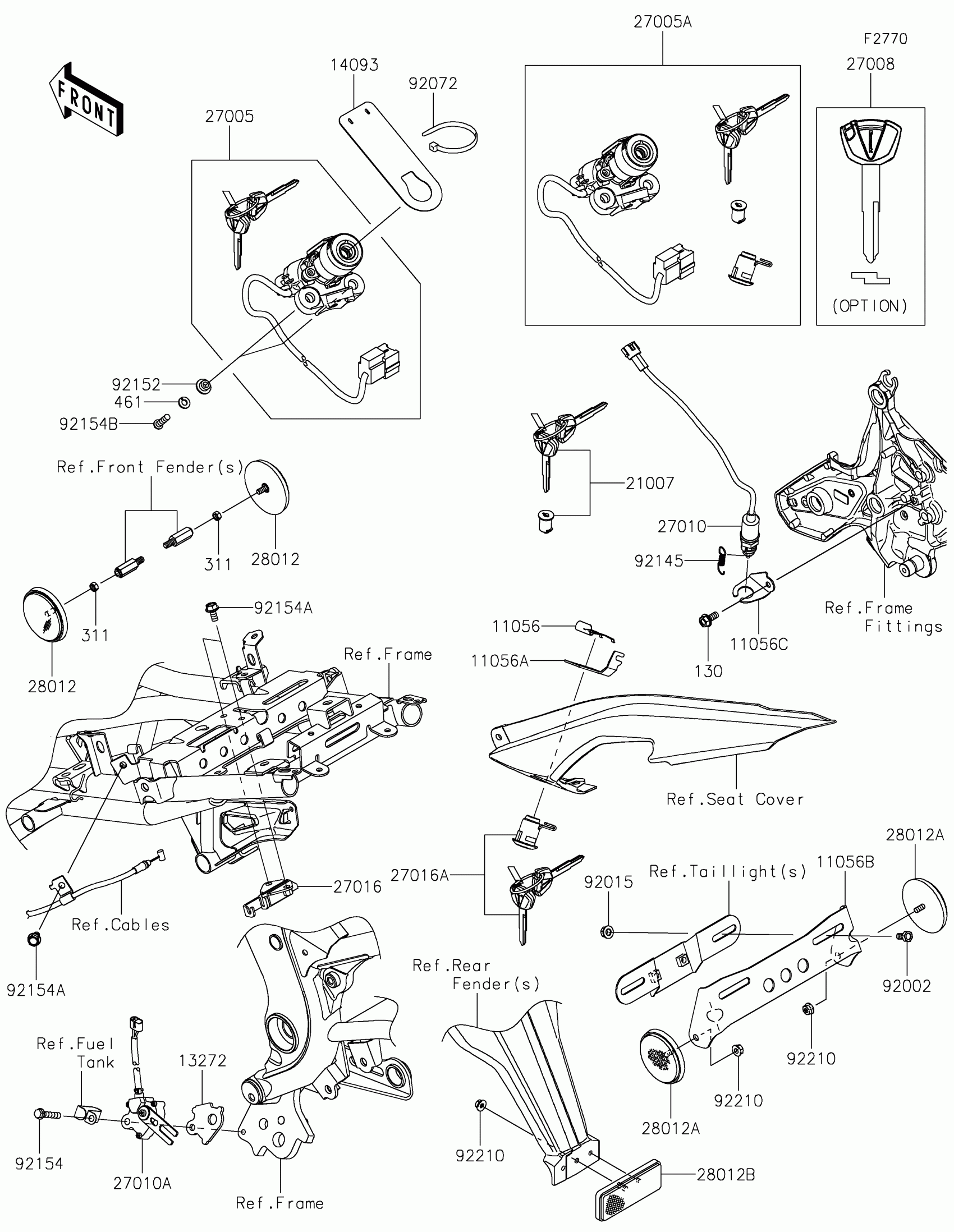

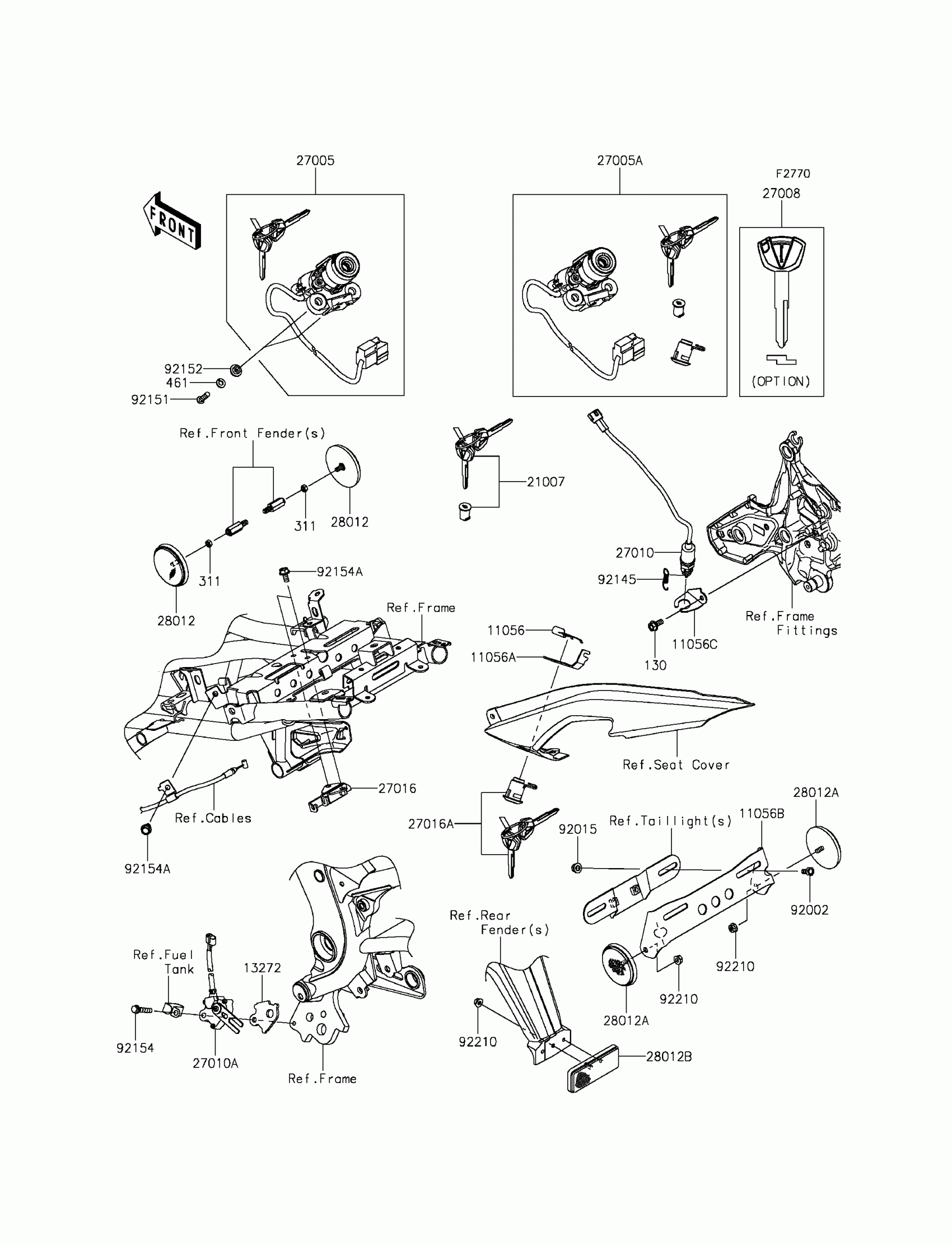

Kawasaki VERSYS® 650 ABS Ignition Switch Diagram
#
Description
Price
11056
BRACKET,CLASP
11056-0238
$6.00
11056A
BRACKET,SEAT LOCK
11056-2119
$4.41
11056B
BRACKET,REFLECTOR
11056-2773
$14.90
11056C
BRACKET,RR BRAKE SW.
11056-3974
$1.97
130
BOLT-FLANGED,6X14
130BB0614
$2.49
13272
PLATE
13272-1330
$3.71
14093
COVER,IGNITION SWITCH
14093-1044
$10.11
21007
ROTOR,LOCK,TANK CAP
21007-5077
$123.53
27005
SWITCH-ASSY-IGNITION
27005-0592
$179.84
27005A
SWITCH-ASSY-IGNITION
27005-5153
$409.41
27008
KEY-LOCK,BLANK
27008-0596
$21.89
27010
SWITCH,REAR BRAKE
27010-0095
$28.74
27010A
SWITCH,SIDE STAND
27010-0722
$115.66
27016
LOCK-ASSY,SEAT STRIKER
27016-0008
$14.90
27016A
LOCK-ASSY,SEAT
27016-5386
$90.37
28012
REFLECTOR-REFLEX,FR,SIDE
28012-0001
$24.14
28012A
REFLECTOR-REFLEX
28012-0002
$24.14
28012B
REFLECTOR-REFLEX
28012-1077
$23.25
311
NUT-HEX,5MM
311AB0500
$0.43
461
WASHER-SPRING,6MM
461DA0600
$0.71
92002
BOLT,6X12
92002-1132
$1.49
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92072
BAND,L=365
92072-1197
$7.84
92145
SPRING,REAR BRAKE SWITCH
92145-0724
Unavailable
92152
COLLAR,6.15X10.15X6
92152-1535
$3.74
92154
BOLT,FLANGED,6X30
92154-1040
$2.67
92154A
BOLT,FLANGED,6X12
92154-1050
$1.97
92154B
BOLT,TORX,6X22
92154-1858
$3.94
92210
NUT,FLANGED,5MM
92210-0007
$2.70
