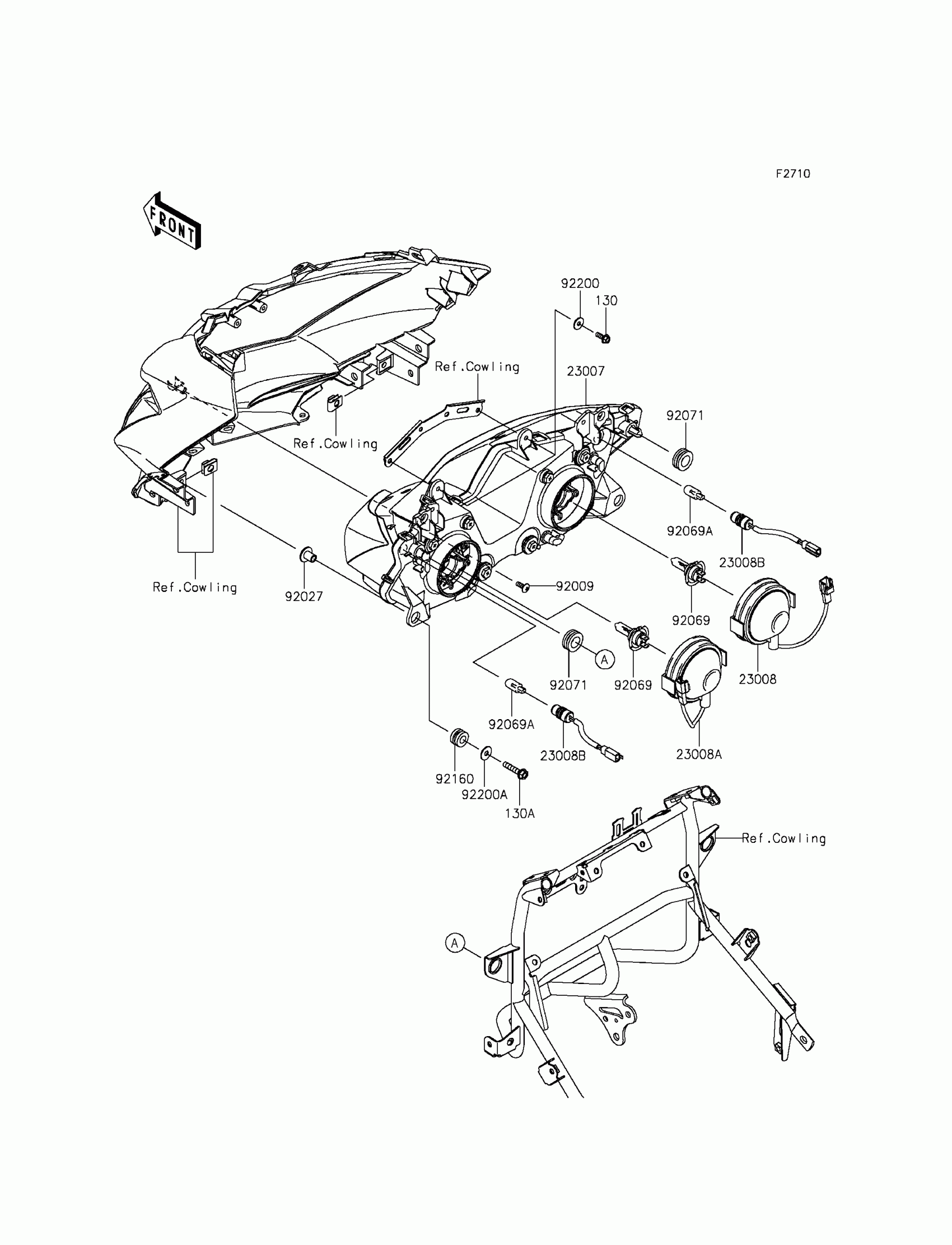

Kawasaki VERSYS® 650 ABS Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,5X14

130BA0514

$2.06

130A

BOLT-FLANGED,6X30

130BA0630

$1.46

23007

LENS-COMP

23007-0174

$361.58

23008

SOCKET-ASSY,LO BEAM

23008-0135

$49.63

23008A

SOCKET-ASSY,HI BEAM

23008-0136

$49.63

23008B

SOCKET-ASSY,POSITION LAMP

23008-0152

$82.89

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92069

BULB,12V 55W,H7

92069-0053

$42.86

92069A

BULB,12V 5W

92069-1016

$6.52

92071

GROMMET

92071-1131

$7.77

92160

DAMPER,10X20X12

92160-1167

$4.69

92200

WASHER,5.2X16X1.2

92200-0583

$1.94

92200A

WASHER,6.2X18X1.2

92200-1643

$0.72
