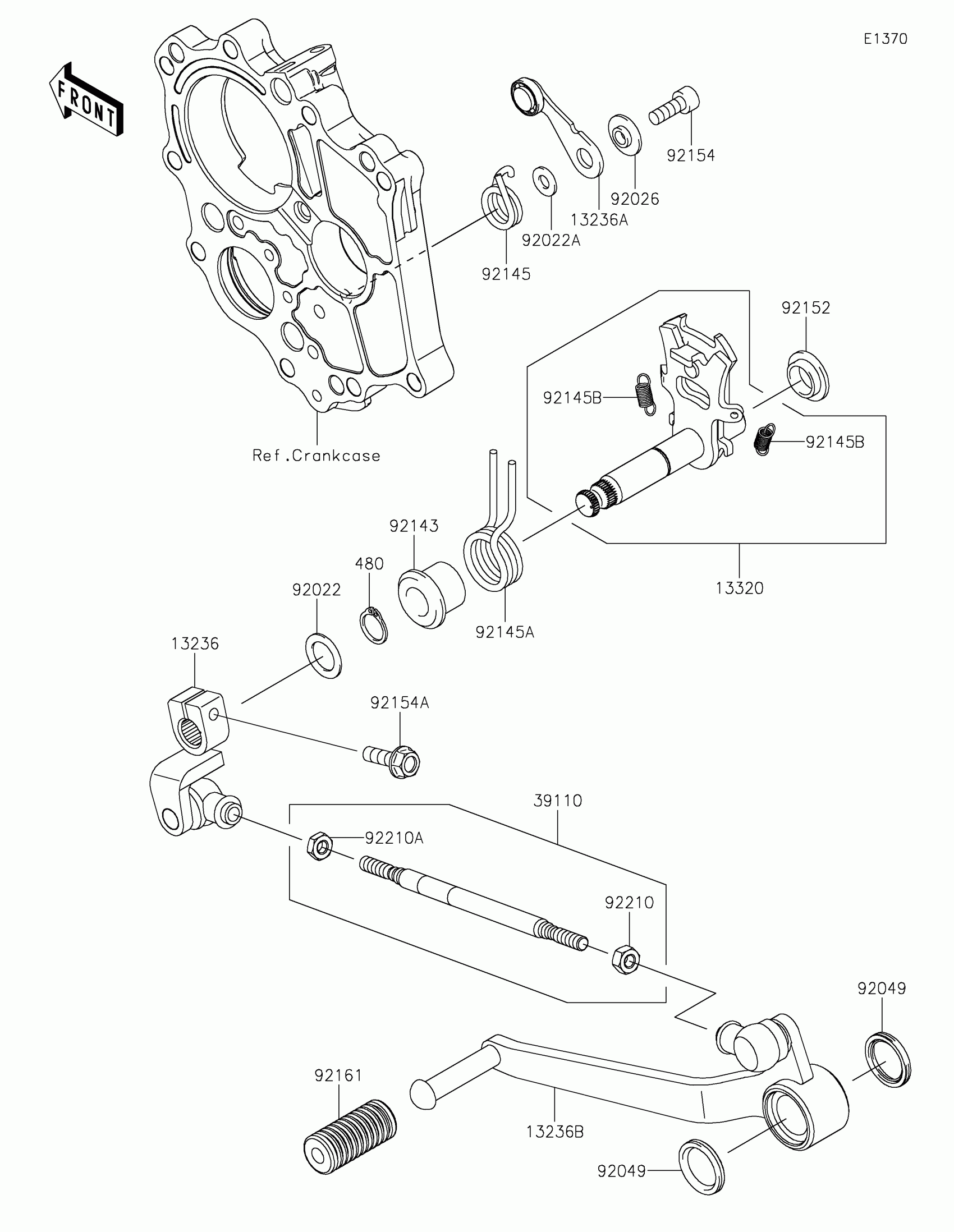

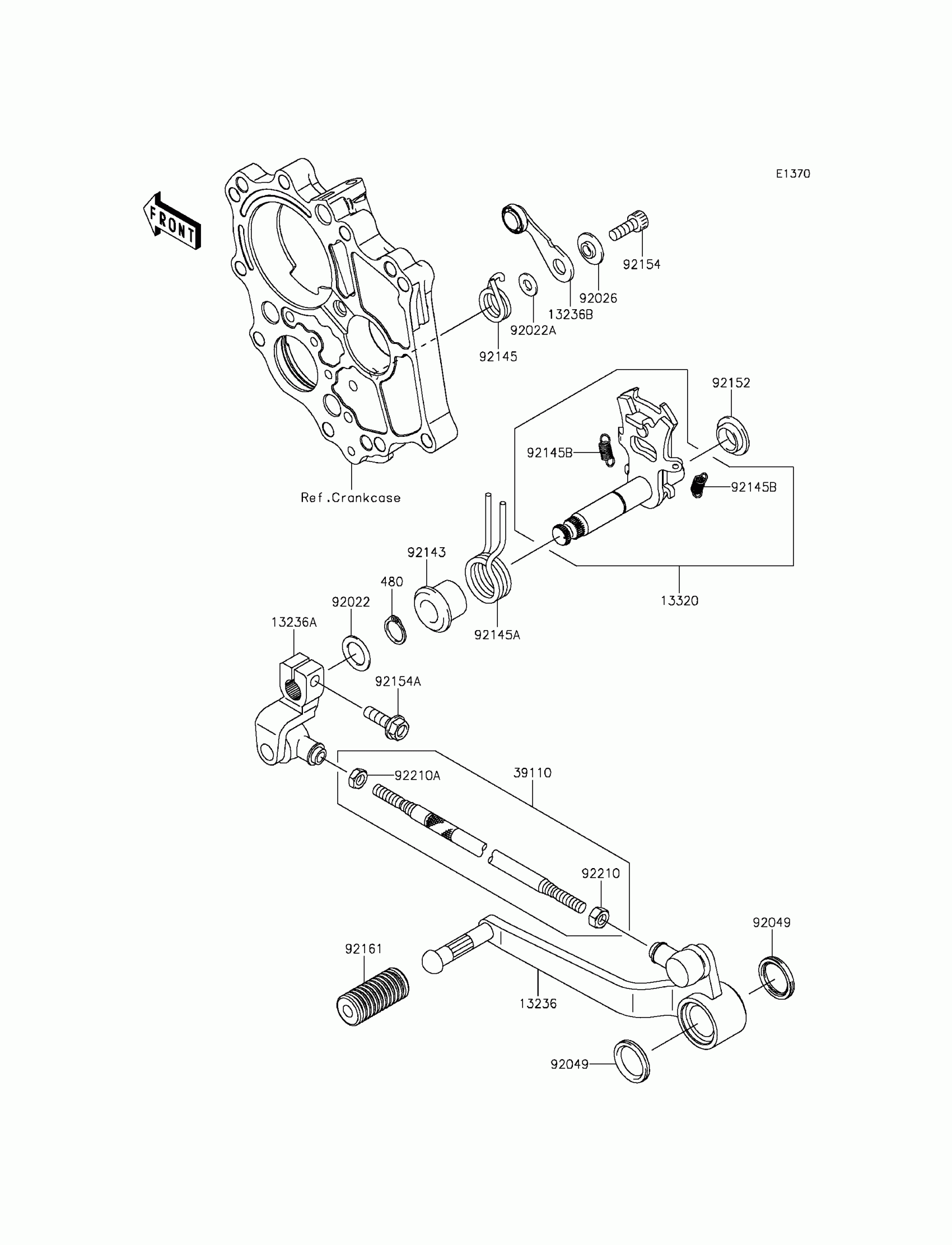

Kawasaki VERSYS® 650 ABS Gear Change Mechanism Diagram

Description

Price

13236

LEVER-COMP

13236-0137

$57.29

13236A

LEVER-COMP,POSITION

13236-0170

$9.31

13236B

LEVER-COMP,PEDAL

13236-0831

$74.80

13320

LEVER-ASSY,CHANGE SHAFT

13320-0032

$64.50

39110

ROD-ASSY-TIE

39110-0033

$23.97

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92049

SEAL-OIL

92049-0103

$7.75

92143

COLLAR,RETURN SPRING

92143-1498

$10.65

92145

SPRING,POSITION

92145-0304

$3.87

92145A

SPRING,RETURN

92145-0326

$6.02

92145B

SPRING,5.5X0.7X18

92145-0703

$3.67

92152

COLLAR

92152-1075

$4.18

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92154A

BOLT,FLANGED,6X20

92154-0786

$3.02

92161

DAMPER,CHANGE PEDAL

92161-2389

$6.18

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
