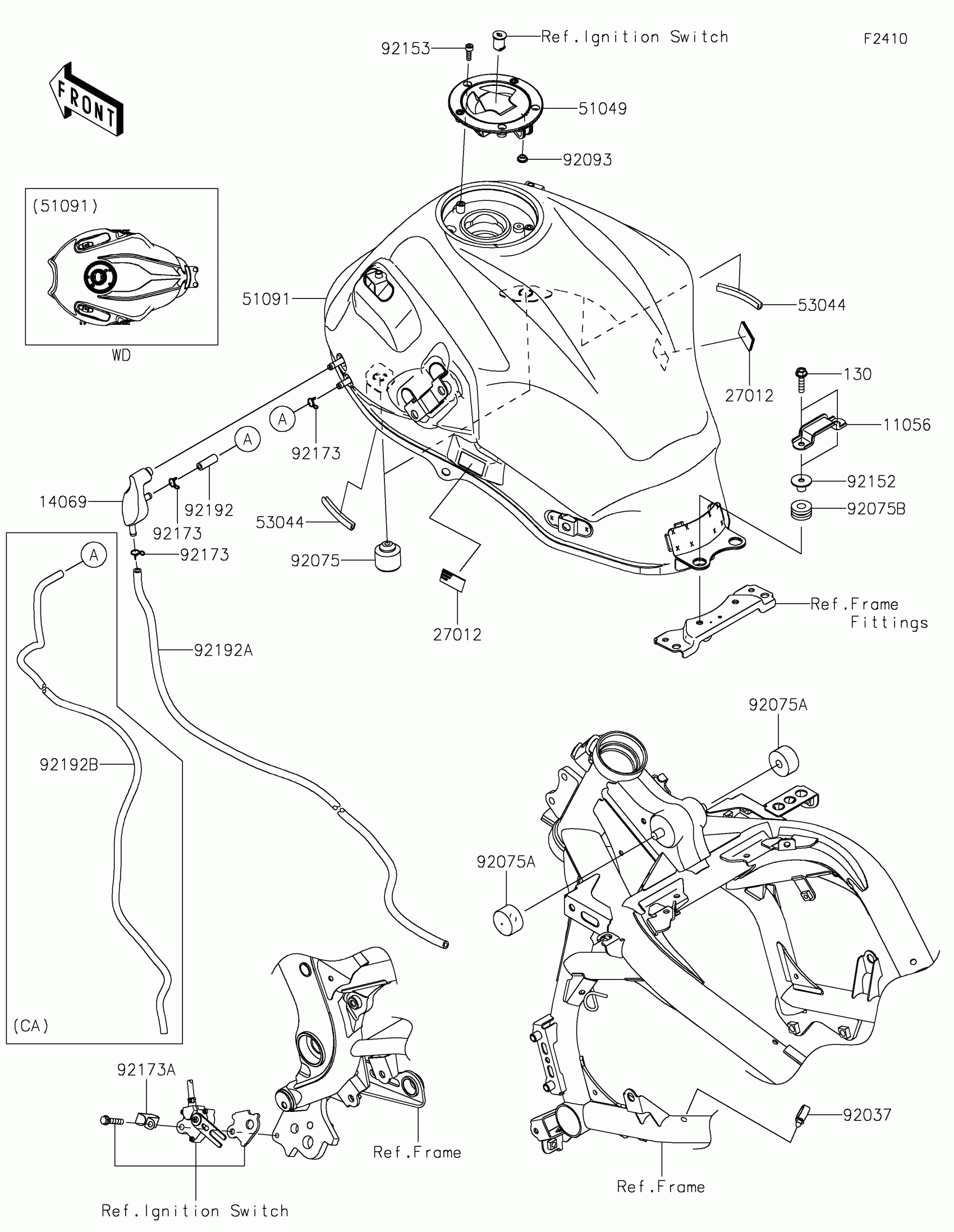

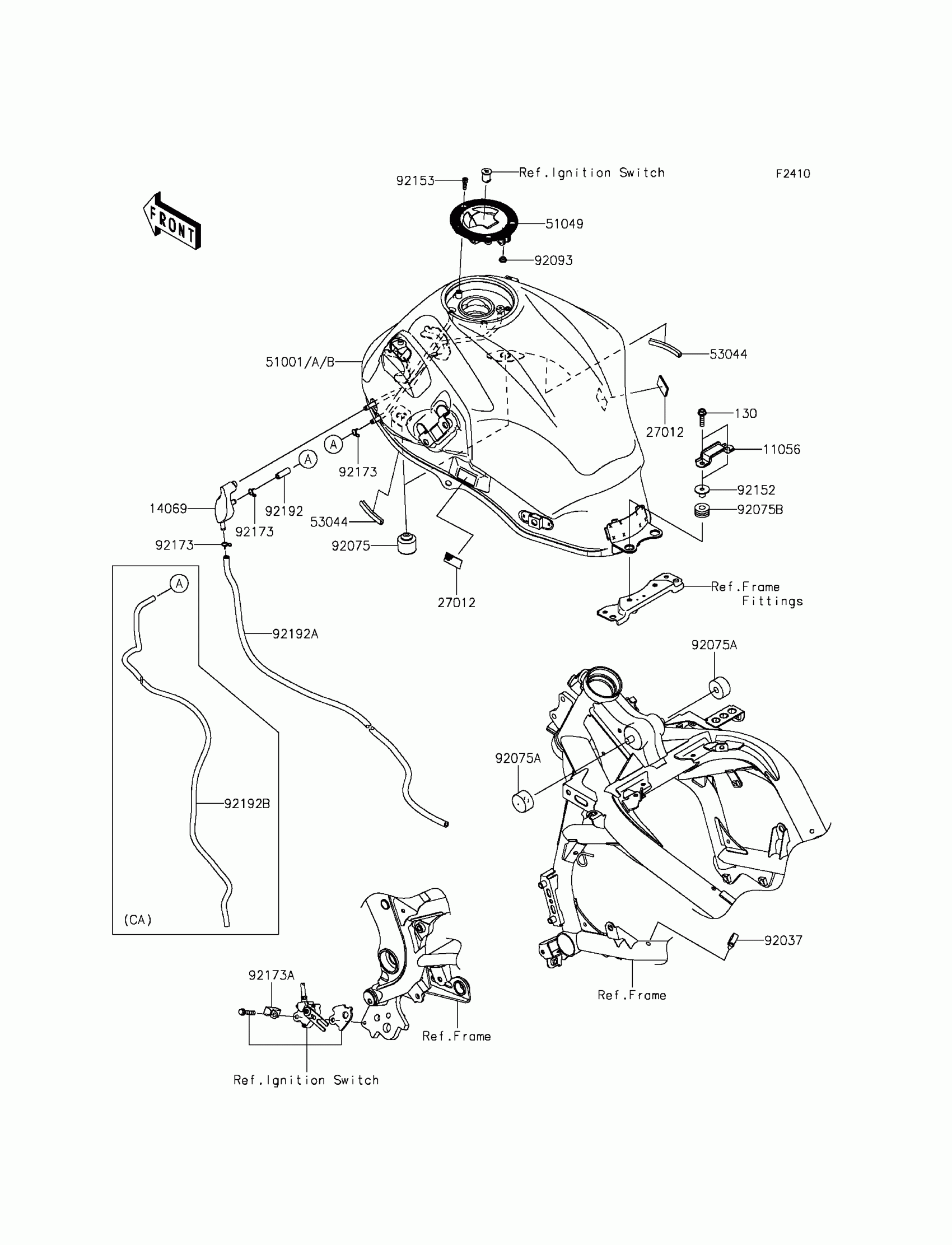

Kawasaki VERSYS® 650 ABS Fuel Tank Diagram

Description

Price

11056

BRACKET,SEAT

11056-0361

$6.26

130

BOLT-FLANGED,6X25

130BA0625

$1.20

27012

HOOK,DUAL LOCK FASTENER,20X30

27012-0784

$6.24

51049

CAP-TANK,FUEL

51049-0749

$136.31

51091

TANK-COMP-FUEL,M.S.BLACK

51091-5390-660

$1,148.18

53044

TRIM,L=60

53044-1249

$6.57

92037

CLAMP,HOSE

92037-1827

$7.45

92075

DAMPER

92075-1002

$6.22

92075A

DAMPER,FUEL TANK

92075-125

$6.22

92075B

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.5X10X13.1

92152-0910

$1.63

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92173A

CLAMP

92173-0833

$3.74
