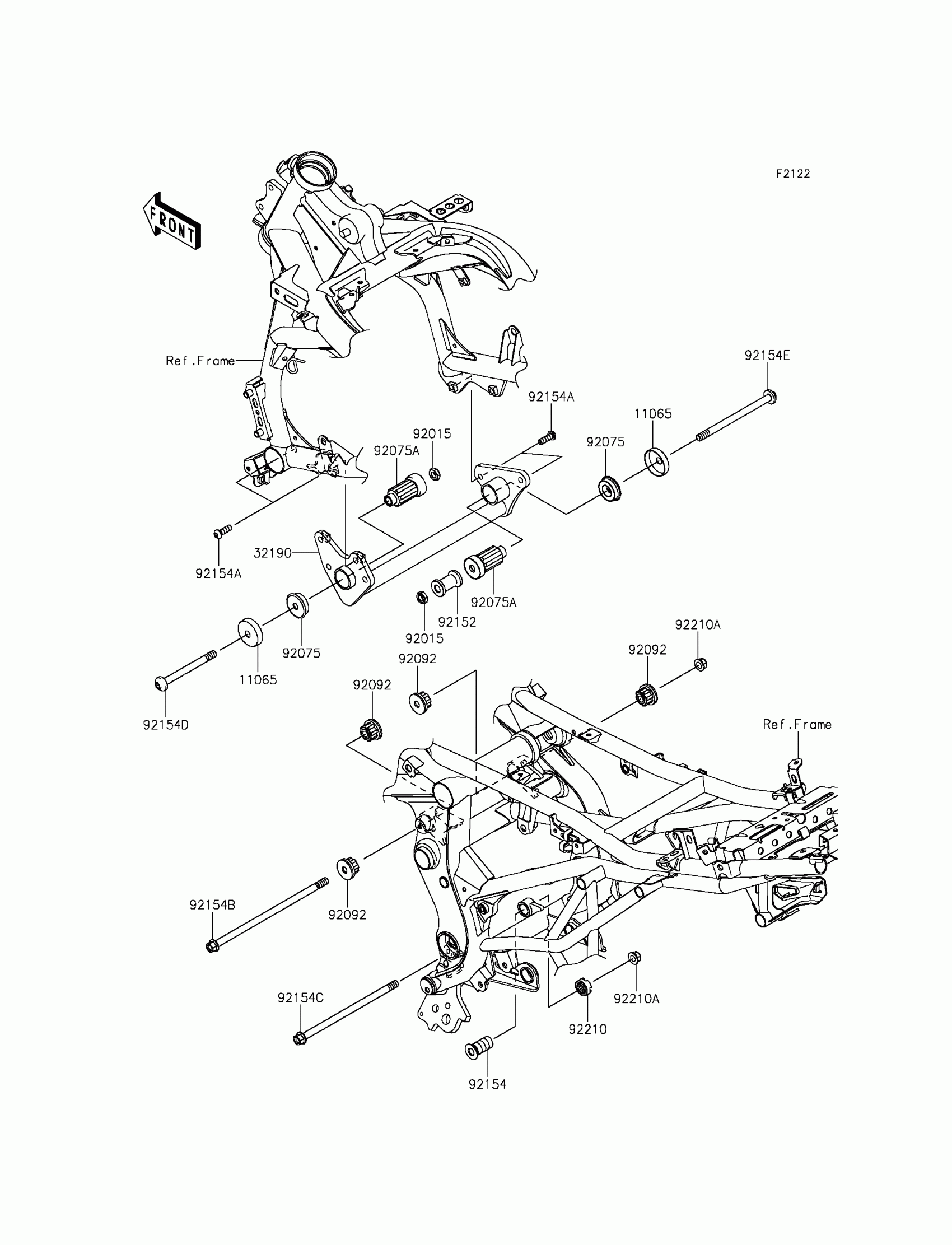

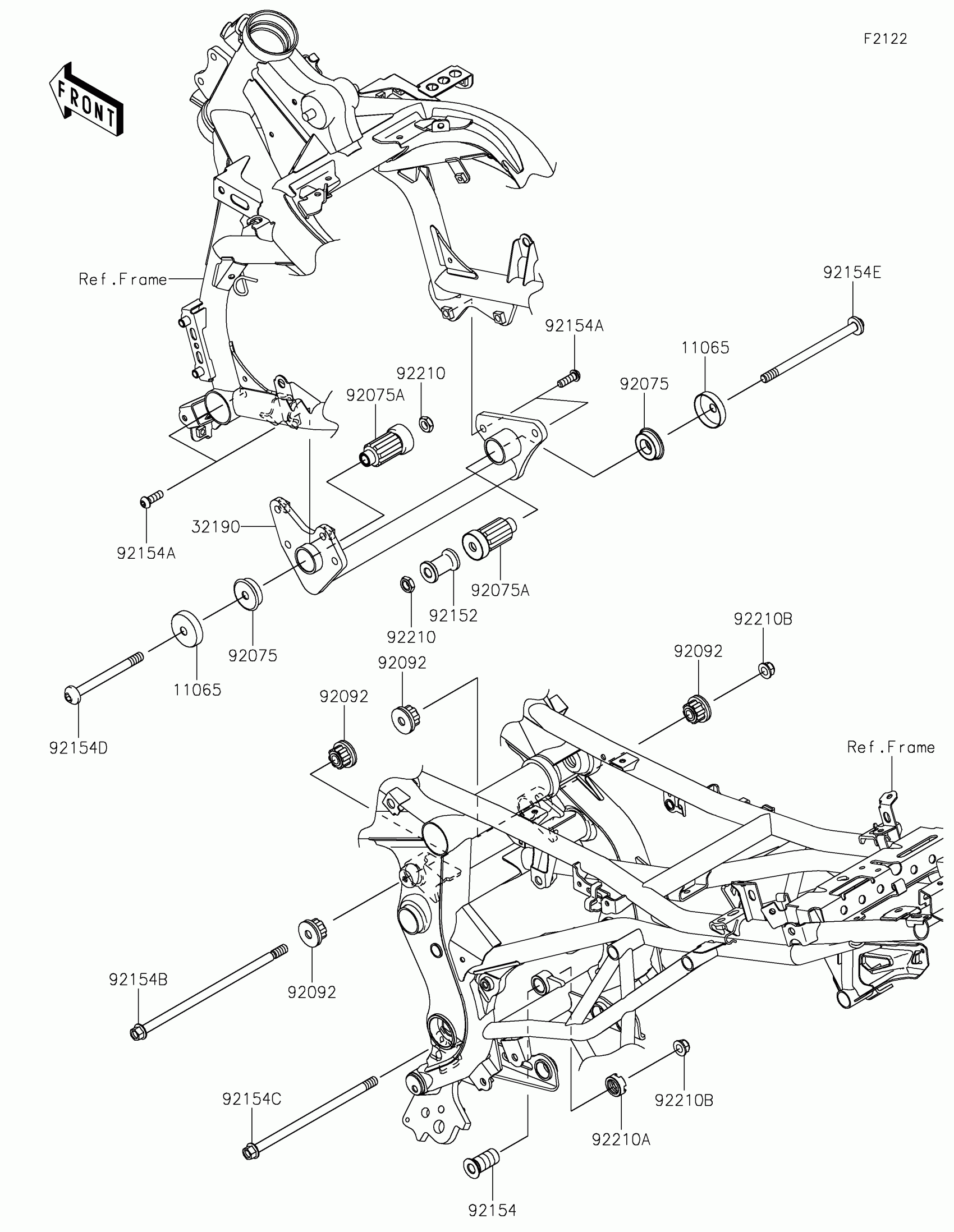

Kawasaki VERSYS® 650 ABS Engine Mount Diagram

Description

Price

11065

CAP,10.5X43X10

11065-0871

$3.74

32190

BRACKET-ENGINE,FR

32190-0667

$105.88

92075

DAMPER,ENGINE MOUNT

92075-1738

$23.47

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

$31.88

92092

BUSHING-RUBBER

92092-0021

$13.06

92152

COLLAR,10.5X26X40

92152-1878

$17.65

92154

BOLT,ENGINE MOUNT,18MM

92154-0249

$30.15

92154A

BOLT,SOCKET,8X25

92154-1485

$2.75

92154B

BOLT,FLANGED,10X237

92154-1505

$30.36

92154C

BOLT,FLANGED,10X200

92154-1660

$31.97

92154D

BOLT,SOCKET,10X110

92154-1671

$10.72

92154E

BOLT,SOCKET,10X150

92154-1672

$17.91

92210

NUT,LOCK,10MM

92210-0784

$5.98

92210A

NUT,CASTLE,18MM

92210-0963

$41.43

92210B

NUT,LOCK,FLANGED,10MM

92210-1081

$12.35
