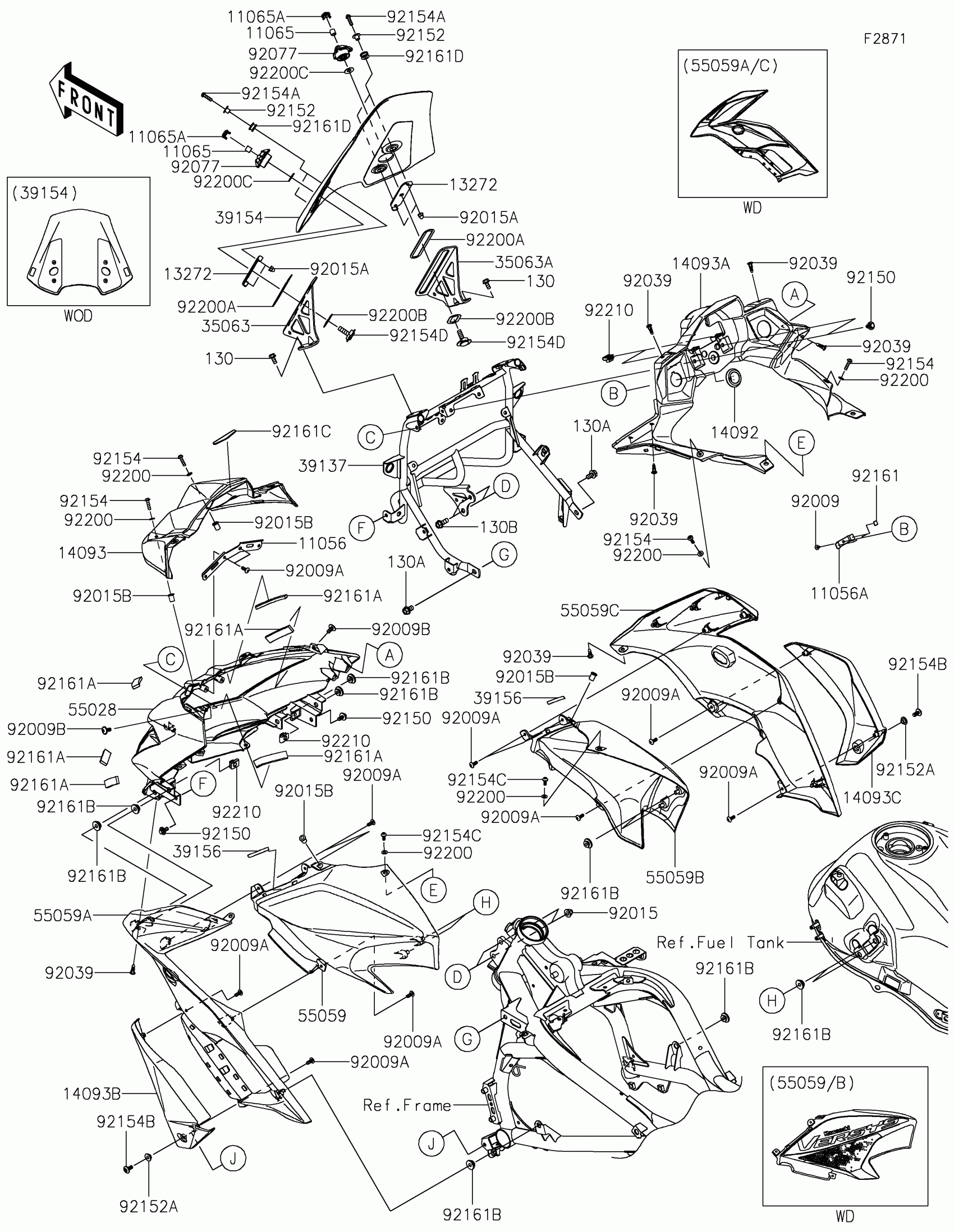

Kawasaki VERSYS® 650 ABS Cowling Diagram
#
11056
BRACKET,HEAD LAMP
11056-3975
$6.77
11056A
BRACKET,CAP COVER
11056-4313
$1.19
11065
CAP
11065-0156
$2.13
11065A
CAP,KNOB
11065-0734
$5.29
13272
PLATE,WINDSHIELD
13272-2333
$4.69
14092
COVER,DC SOCKET
14092-0214
$6.57
14093
COVER,METER,UPP
14093-0093
$135.69
14093A
COVER,METER
14093-0094
$131.51
14093B
COVER,RADIATOR,LH
14093-0095
$59.26
14093C
COVER,RADIATOR RH
14093-0096
$59.26
35063
STAY,WINDSHIELD,LH
35063-1321
$29.29
35063A
STAY,WINDSHIELD,RH
35063-1322
$29.29
39137
STAY-COMP,UPP COWL.
39137-0669
$176.71
39154
WINDSHIELD
39154-0361
$179.94
39156
PAD,6X70
39156-1920
$1.84
55028
COWLING,UPP,M.M.GRAY
55028-0514-25X
$257.95
55059
COWLING,TANK SIDE,LH,M.S.BLACK
55059-5347-660
$359.65
55059A
COWLING,SIDE,LH,M.S.BLACK
55059-5348-660
$340.38
55059B
COWLING,TANK SIDE,RH,M.S.BLACK
55059-5350-660
$382.29
55059C
COWLING,SIDE,RH,M.S.BLACK
55059-5351-660
$364.76
92009
SCREW,TAPPING,4X8
92009-1155
$2.97
92009A
SCREW,TAPPING,5X14
92009-1197
$3.92
92009B
SCREW,6X14
92009-1662
$3.92
92015
NUT,CAP,8MM
92015-1151
$5.00
92015A
NUT,LOCK,FLANGE CAP,5MM
92015-1263
$6.57
92015B
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0709
$2.67
92077
KNOB,ADJUSTERS
92077-0034
$12.80
92150
BOLT,FLANGED,6X14
92150-1689
$3.94
92152
COLLAR
92152-0092
$6.61
92152A
COLLAR,6.5X10X5.6
92152-0445
$4.92
92154
BOLT,SOCKET,5X20
92154-0216
$2.12
92154A
BOLT,SOCKET,5X20
92154-0919
Unavailable
92154B
BOLT,SOCKET,6X14
92154-0932
$1.97
92154C
BOLT,SOCKET,5X12
92154-1421
$0.95
92154D
BOLT,PLATE,8X30
92154-1438
$14.13
92161
DAMPER
92161-0816
$3.21
92161A
DAMPER,15X70X5
92161-1380
$3.02
92161B
DAMPER
92161-1531
$3.02
92161C
DAMPER,10X65X2
92161-1758
$1.19
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,8X14
130BA0814
$2.16
130B
BOLT-FLANGED,8X20
130BA0820
$4.14
92161D
DAMPER
92161-1938
$2.49
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92200A
WASHER
92200-0801
$4.41
92200B
WASHER,23.5X32X1
92200-0802
$3.02
92200C
WASHER,8.2X20X1
92200-1751
$5.98
92210
NUT,CLIP,6MM
92210-0933
$2.26
