Chassis Electrical Equipment

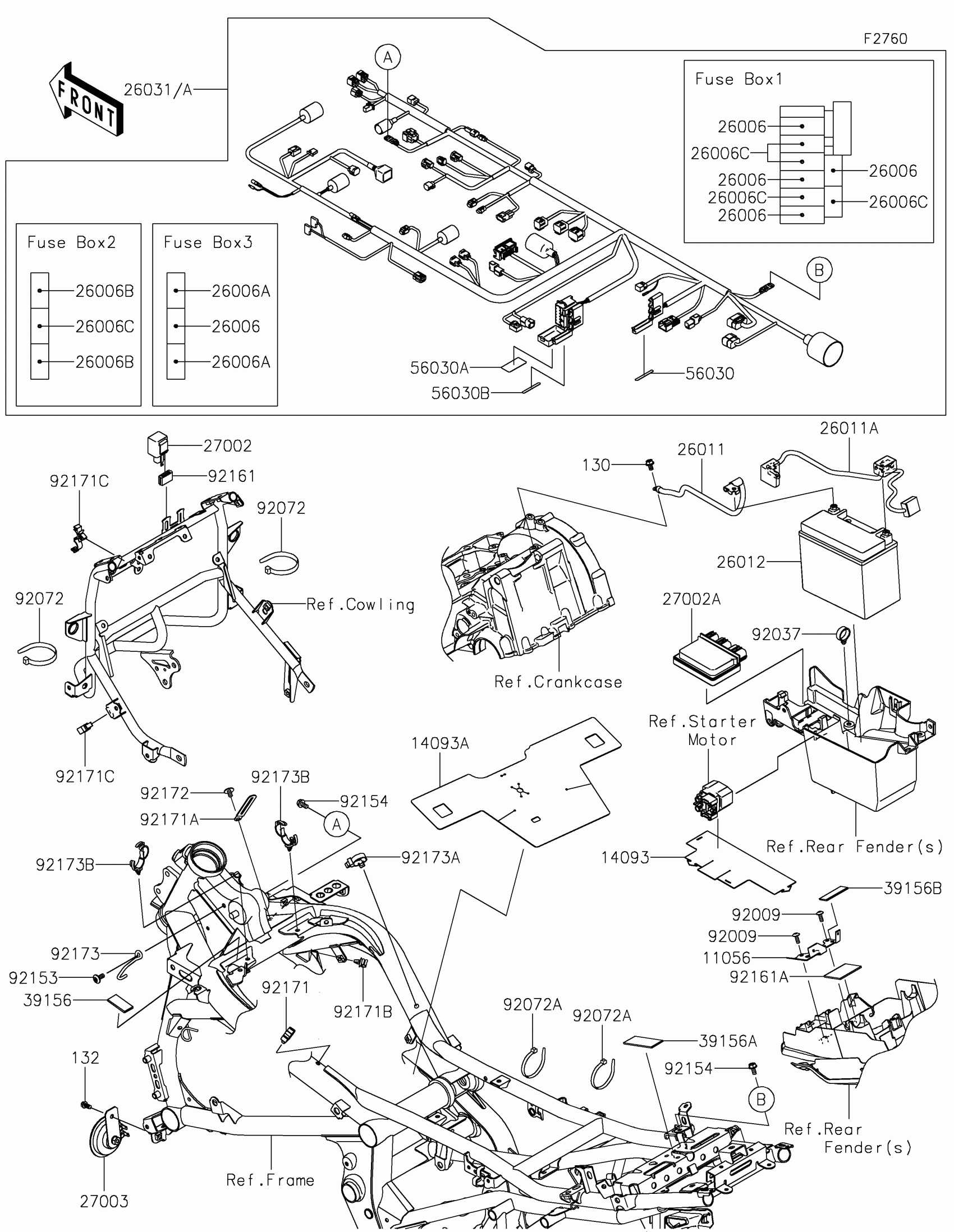

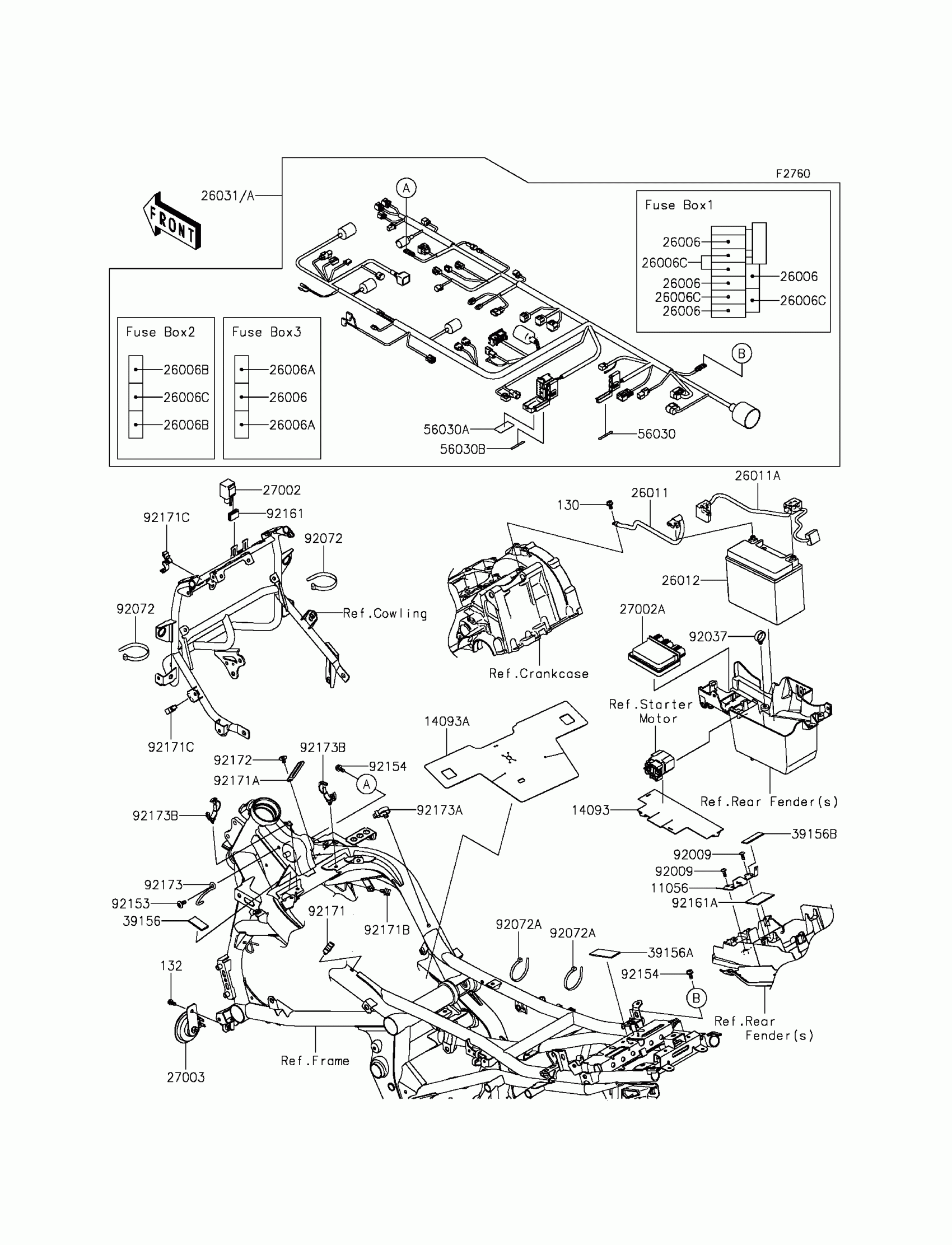

Kawasaki VERSYS® 650 ABS Chassis Electrical Equipment Diagram
#
11056
BRACKET,HARNESS
11056-4346
$3.94
130
BOLT-FLANGED,6X10
130BA0610
$1.20
14093
COVER,MG. SWITCH
14093-0251
$20.99
14093A
COVER,HEAT SHIELD
14093-0309
$53.03
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,25A,NATURAL
26006-0020
$6.57
26006B
FUSE,MINI BLADE,5A,TAN
26006-1077
$4.87
26006C
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26011
WIRE-LEAD,BATTERY(-)
26011-0301
$27.80
26011A
WIRE-LEAD,BATTERY(+)
26011-0876
$76.03
26012
BATTERY,FTX12-BS,12V 10AH
26012-0606
Unavailable
27002
RELAY-ASSY,SIGNAL LAMP
27002-0006
$54.81
27002A
RELAY-ASSY
27002-0050
$143.14
27003
HORN
27003-0056
$68.20
39156
PAD,20X40X3
39156-0831
$1.18
39156A
PAD,70X27X2
39156-1908
$2.99
39156B
PAD,50X18X2
39156-1909
$3.56
56030
LABEL,FUSE BOX3
56030-0400
$4.37
56030A
LABEL,FUSE BOX1
56030-0705
$4.37
56030B
LABEL,FUSE BOX2
56030-0879
$3.29
92009
SCREW,TAPPING,5X14
92009-1197
$3.92
92037
CLAMP,HOSE
92037-1827
$7.45
92072
BAND,L=202
92072-1195
$1.56
92072A
BAND,L=365
92072-1197
$7.84
92153
BOLT,SOCKET,6X14
92153-1446
$2.15
92154
BOLT,FLANGED,6X12
92154-1050
$1.97
92161
DAMPER,15X25X8.5
92161-1443
$1.94
92161A
DAMPER,40X50X2
92161-1757
$1.48
92171
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171A
CLAMP
92171-0462
$4.92
92171B
CLAMP
92171-0640
$3.90
92171C
CLAMP
92171-0782
$3.90
92172
SCREW,6X10
92172-0005
$2.41
92173
CLAMP,HEAD GUSSET,LH
92173-1329
$3.02
92173A
CLAMP,CABLE STRAP
92173-1336
$2.49
92173B
CLAMP,20MM DIA.
92173-1394
$2.26
132
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
