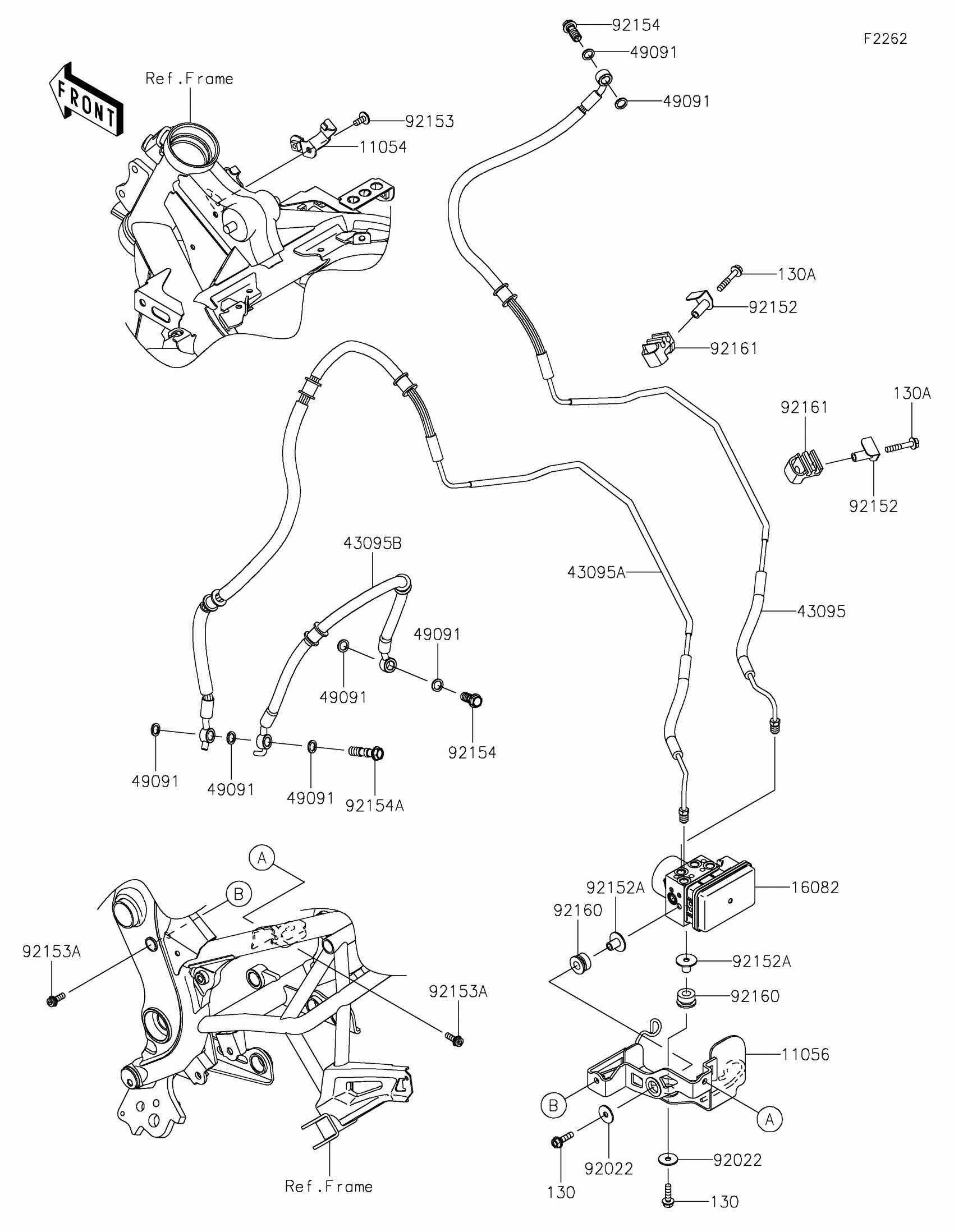

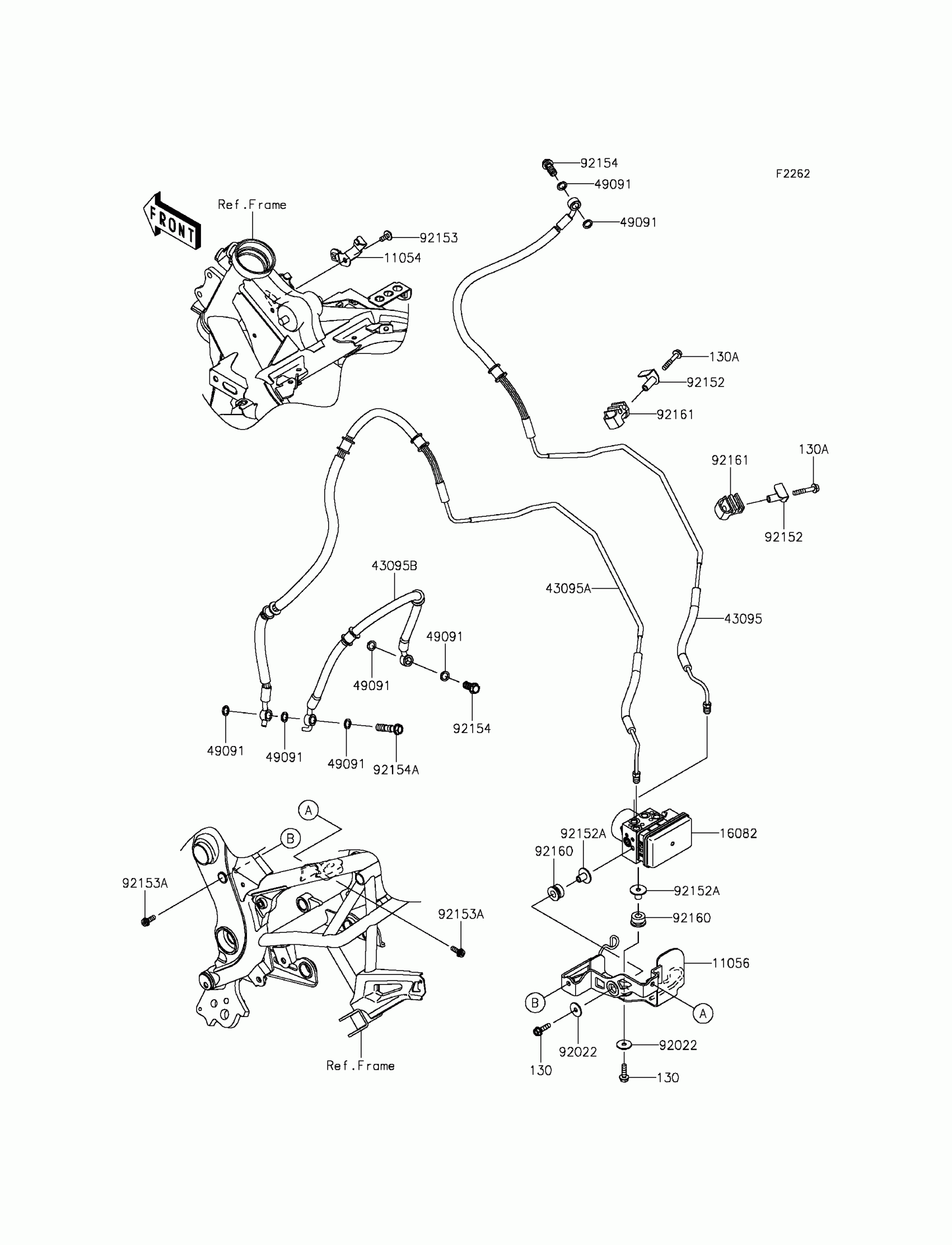

Kawasaki VERSYS® 650 ABS Brake Piping Diagram

Description

Price

11054

BRACKET,BRAKE PIPE

11054-0408

$14.47

11056

BRACKET,ABS UNIT

11056-3977

$52.47

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X35

130BB0635

$4.76

16082

PUMP-ASSY-OIL,ABS

16082-0783

$1,306.07

43095

HOSE-BRAKE,FR M/C-ABS UNIT

43095-0818

$301.89

43095A

HOSE-BRAKE,ABS UNIT-FR CAL.

43095-0820

$326.73

43095B

HOSE-BRAKE,525MM

43095-0822

$153.00

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92152

COLLAR

92152-0409

$18.64

92152A

COLLAR,6.5X10X14.6

92152-0965

$3.24

92153

BOLT,SOCKET,6X14

92153-1446

$2.15

92153A

BOLT,SOCKET,6X16

92153-1517

$2.61

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,FLANGED,10X37

92154-0733

$9.17

92160

DAMPER

92160-1141

$4.69

92161

DAMPER,BRAKE PIPE

92161-0347

$5.38
