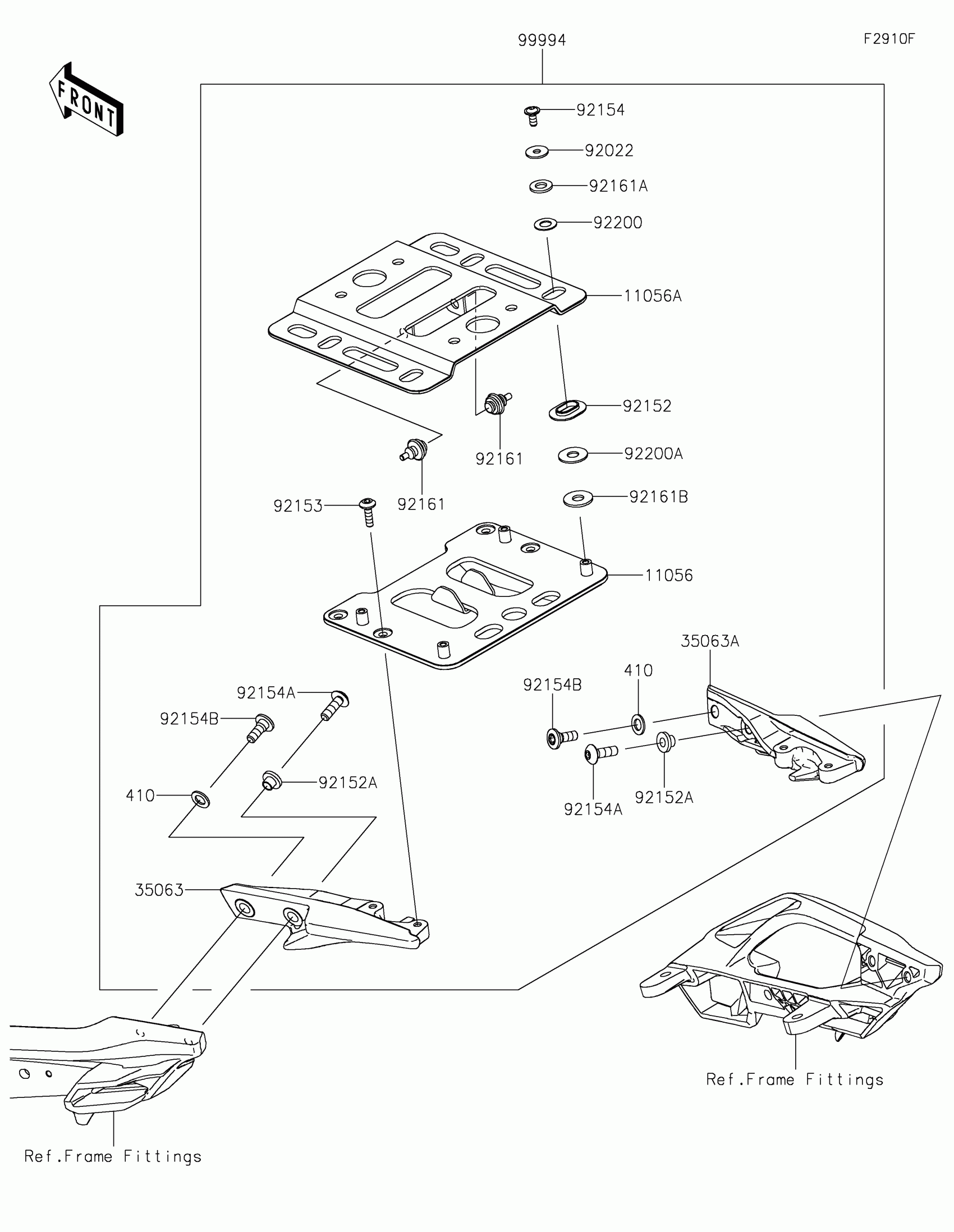

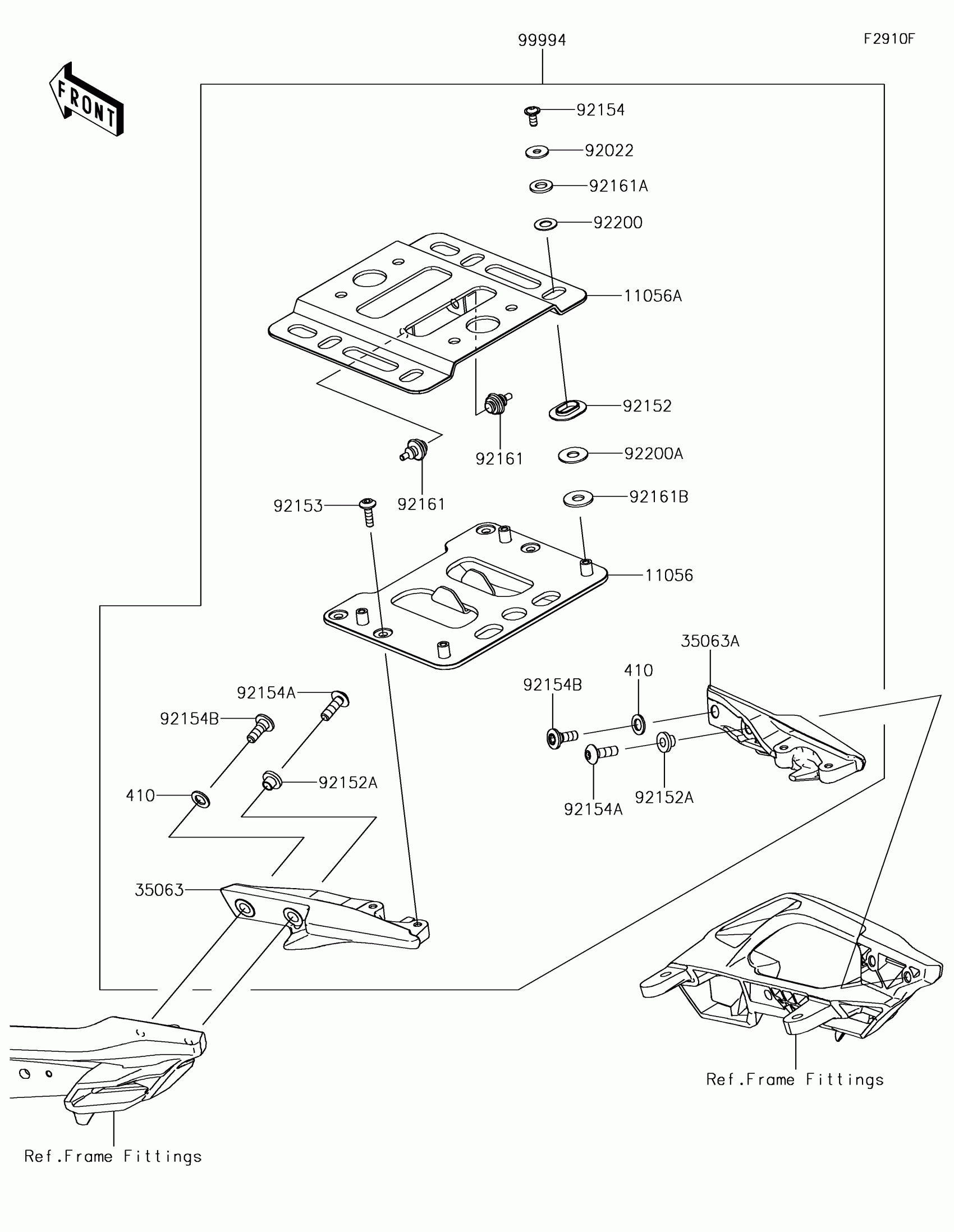

Kawasaki VERSYS® 650 ABS Accessory(Topcase Bracket) Diagram

Description

Price

11056

BRACKET,TOPCASE,LWR

11056-7239

$191.71

11056A

BRACKET,TOPCASE,UPP

11056-7240

$91.81

35063

STAY,CARRIER,LH,F.S.BLACK

35063-0971-18R

$87.31

35063A

STAY,CARRIER,RH,F.S.BLACK

35063-0972-18R

$87.31

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92152

COLLAR,20.5X36X4.7

92152-1983

$2.75

92152A

COLLAR,8X10X10

92152-2134

$7.58

92153

BOLT,SOCKET,6X22

92153-1792

$3.90

92154

BOLT,SOCKET,6X14

92154-0856

$1.94

92154A

BOLT,TORX,8X26

92154-1897

$6.77

92154B

BOLT,SOCKET,8X23

92154-1901

$3.63

92161

DAMPER,STEP

92161-0766

$5.29

92161A

DAMPER,10.3X20X2

92161-1750

$1.48

92161B

DAMPER,10.3X26X2

92161-1751

$1.71

92200

WASHER,10.3X20X1

92200-0414

$5.65

92200A

WASHER,10.3X26X1.5

92200-1697

$1.48

99994

KIT-ACCESSORY,TOPCASE BKT

99994-0842

$257.19
