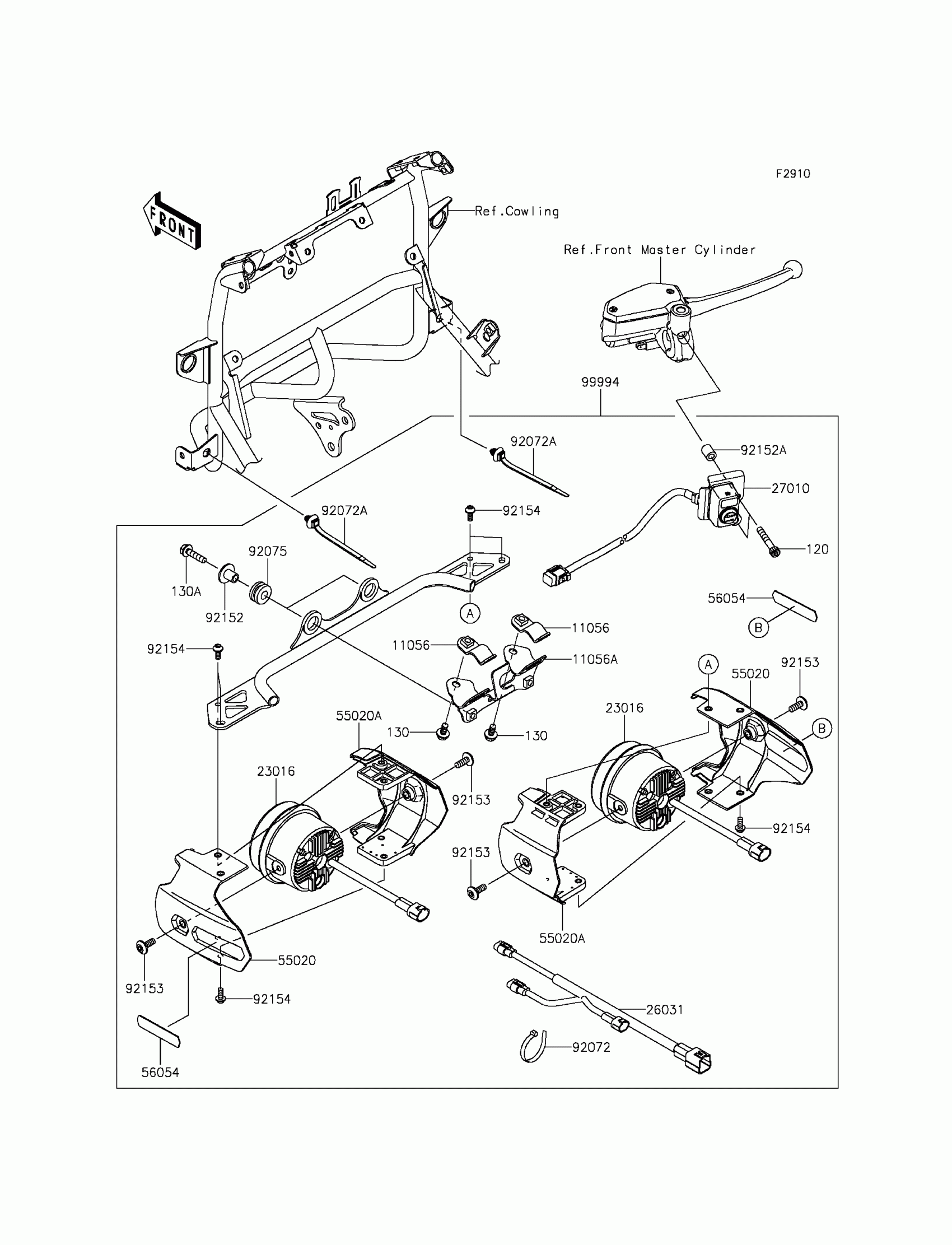

Kawasaki VERSYS® 650 ABS Accessory(Fog Lamp) Diagram

Description

Price

11056

BRACKET,UPP

11056-3978

$13.85

11056A

BRACKET,LWR

11056-3979

$4.69

120

BOLT-SOCKET,6X40

120CB0640

$1.52

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

23016

LAMP-ASSY,FOG LAMP,LED

23016-0571

$393.88

26031

HARNESS

26031-1737

$82.76

27010

SWITCH,SUB LAMP

27010-0761

$76.43

55020

GUARD,OUTER

55020-1825

$14.76

55020A

GUARD,INNER

55020-1826

$5.85

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$12.56

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92075

DAMPER,CASE

92075-222

$7.34

92152

COLLAR,6.3X11X14

92152-1965

$5.79

92152A

COLLAR,6.8X10X13.5

92152-2507

$20.77

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

99994

KIT-ACCESSORY,FOG LAMP

99994-1127

$766.86
