Description

Price

16073

INSULATOR

16073-0848

$11.51

16163

THROTTLE-ASSY

16163-1315

$1,750.91

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0714

$85.93

49033

NOZZLE-INJECTION

49033-0563

$124.66

49056

PIPE-INJECTION,LH

49056-0569

$100.71

49056A

PIPE-INJECTION,RH

49056-0570

$92.07

92005

FITTING

92005-1380

$16.65

92005A

FITTING

92005-1475

$16.15

92005B

FITTING

92005-1476

$14.47

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-0761

$7.40

92055B

RING-O

92055-0840

$2.06

92055C

RING-O

92055-1758

$14.82

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92191

TUBE,3.2X7.4X30

92191-1550

$2.39

92191A

TUBE,3.2X7.4X40

92191-1551

$2.78

92191B

TUBE,3.2X7.4X70

92191-1552

$4.14

92192

TUBE,3.2X7.4X90

92192-1265

$15.89

92192A

TUBE,3.5X7.5X40

92192-1494

$9.84

92192B

TUBE,3.2X7.4X80

92192-2727

$10.28

92192C

TUBE,3.2X7.4X125

92192-2729

$10.28

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

220

SCREW-PAN-CROS,5X16

220AA0516

$2.06

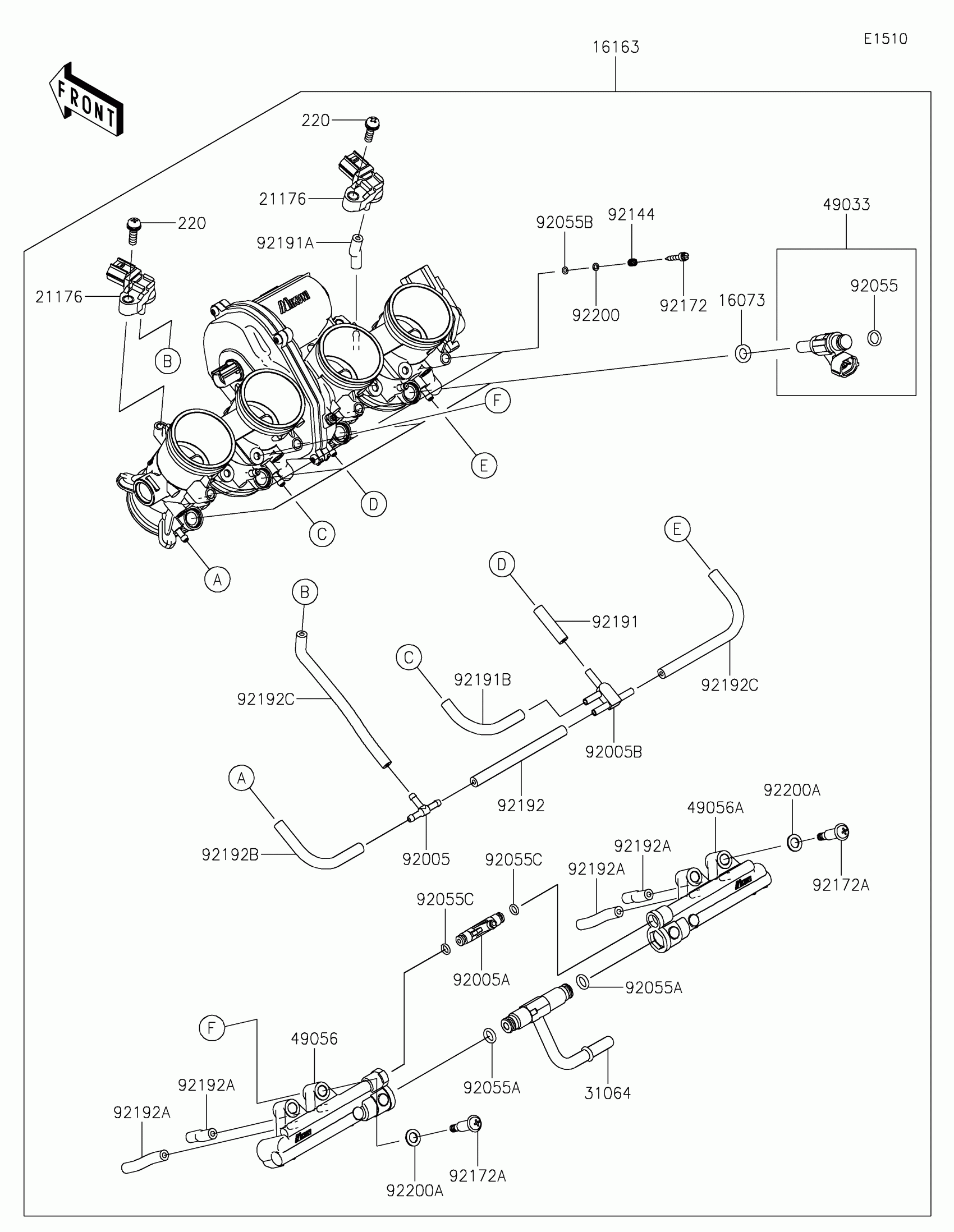

Kawasaki Versys 1100 SE LT ABS Throttle Diagram

INSULATOR

THROTTLE-ASSY

SENSOR,PRESSURE

PIPE-COMP

NOZZLE-INJECTION

PIPE-INJECTION,LH

PIPE-INJECTION,RH

FITTING

FITTING

FITTING

RING-O,INJECTION NOZZLE

RING-O

RING-O

RING-O

SPRING,THROTTLE STOP SCREW

SCREW

SCREW,PIPE INJECTION

TUBE,3.2X7.4X30

TUBE,3.2X7.4X40

TUBE,3.2X7.4X70

TUBE,3.2X7.4X90

TUBE,3.5X7.5X40

TUBE,3.2X7.4X80

TUBE,3.2X7.4X125

WASHER,PILOT AIR SCREW

WASHER

SCREW-PAN-CROS,5X16
