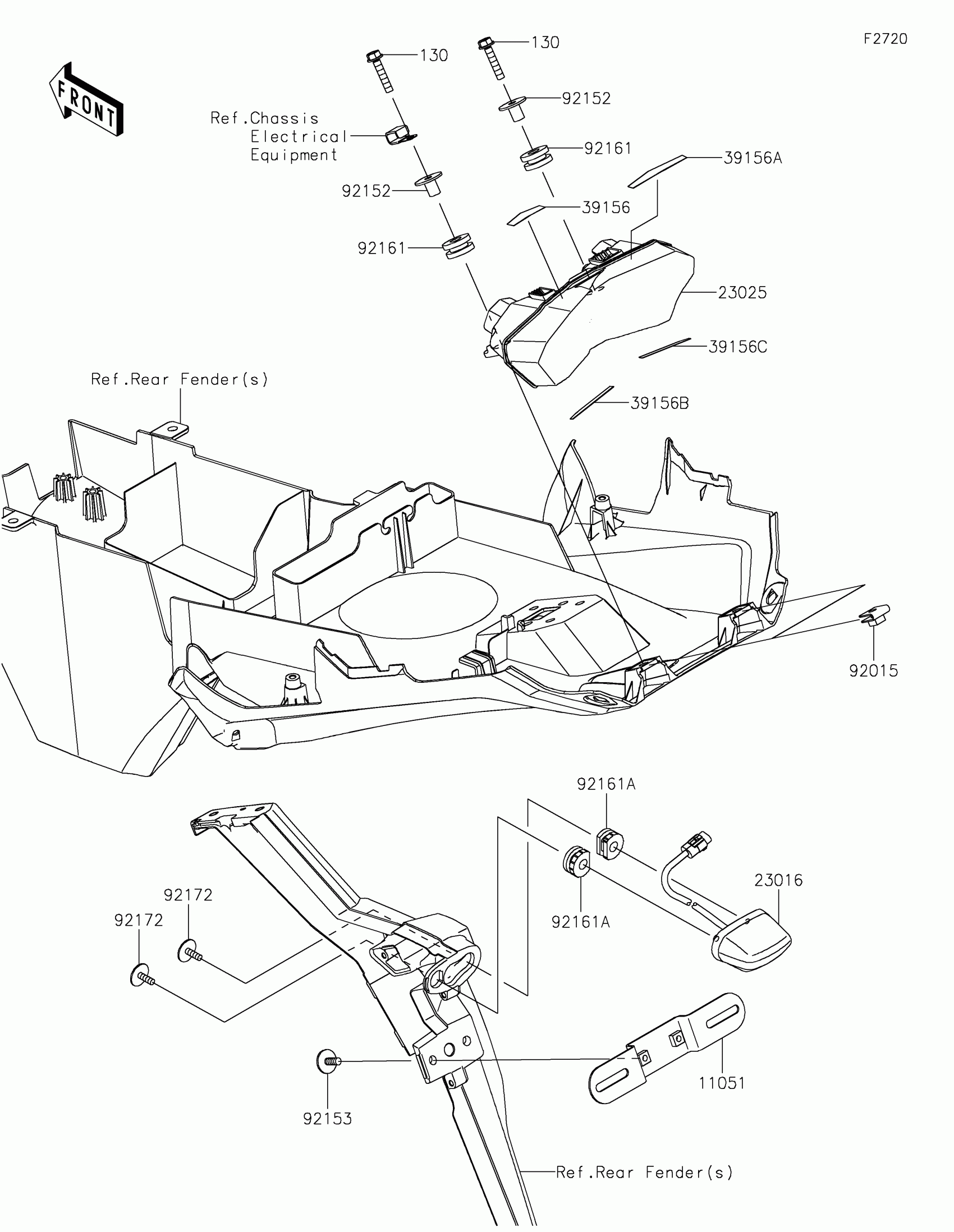

Kawasaki Versys 1100 SE LT ABS Taillight(s) Diagram

Description

Price

11051

BRACKET,LICENSE

11051-1503

$16.01

23016

LAMP-ASSY,LICENSE,LED

23016-0639

$65.84

23025

LAMP-TAIL,LED

23025-0387

$246.06

39156

PAD,TAIL LAMP,UPP,LH

39156-2478

$5.27

39156A

PAD,TAIL LAMP,UPP,RH

39156-2479

$5.27

39156B

PAD,TAIL LAMP,LWR,LH

39156-2480

$4.70

39156C

PAD,TAIL LAMP,LWR,RH

39156-2481

$4.70

92015

NUT,6MM

92015-1094

$8.58

92152

COLLAR,6.4X9.5X15.1

92152-2331

$6.63

92153

BOLT,6X16

92153-1423

$1.34

92161

DAMPER

92161-0163

$5.79

92161A

DAMPER,9X23X12

92161-1885

$7.68

92172

SCREW,TAPTITE,5X16

92172-0481

$3.19

130

BOLT-FLANGED,6X30

130BA0630

$1.46
