2025 Kawasaki Versys 1100 Se LT ABS Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

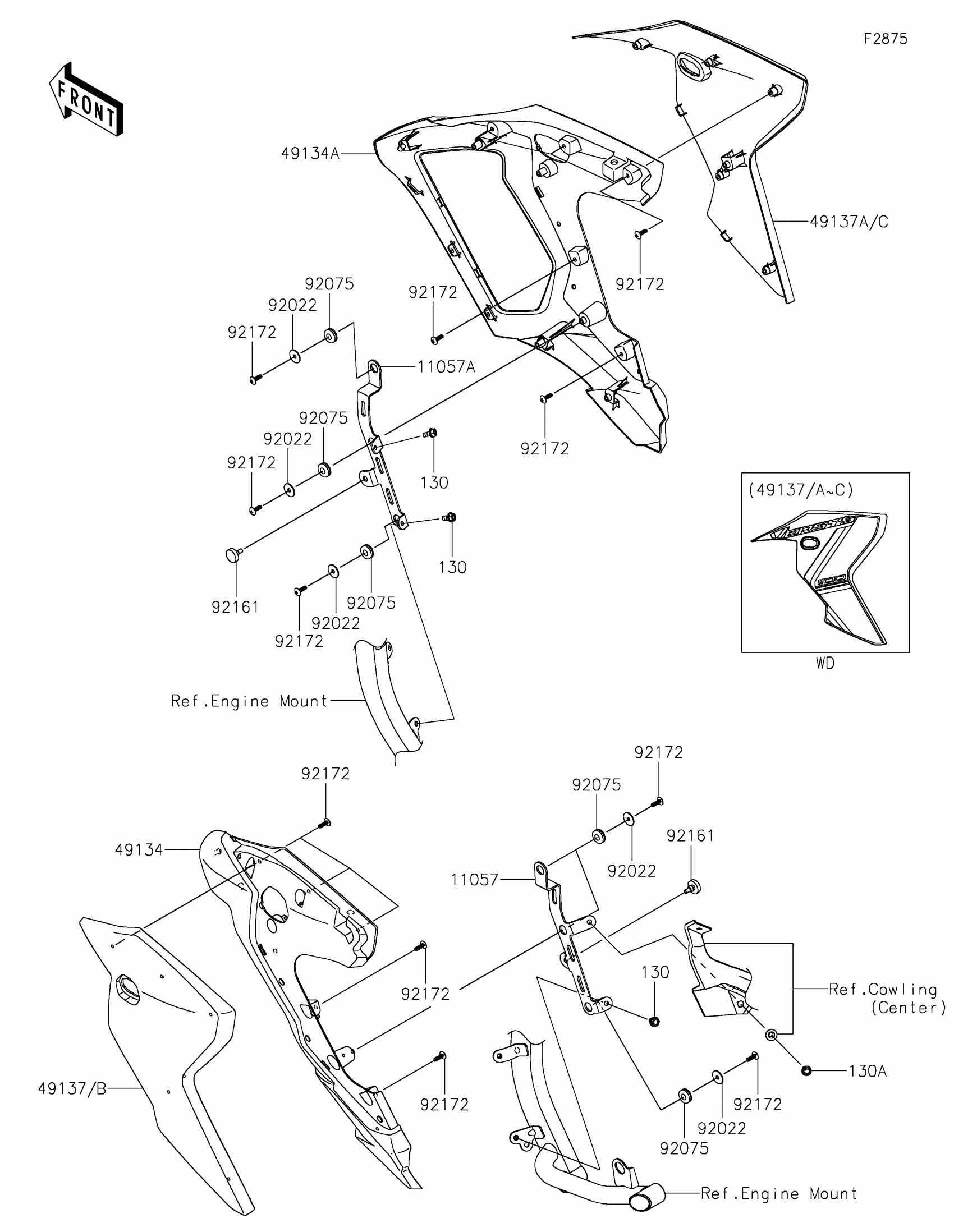

2025 Kawasaki Versys 1100 Se LT ABS Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SHROUD,LH

11057-1698

1
Out of stock

11057A

BRACKET,SHROUD,RH

11057-1699

1
Out of stock

49134

SHROUD,INNER,LH

49134-0004

1
Out of stock

49134A

SHROUD,INNER,RH

49134-0005

1
Out of stock

49137

SHROUD,OUTER,LH,M.D.BLACK

49137-5078-17K

1
Out of stock

49137A

SHROUD,OUTER,RH,M.D.BLACK

49137-5079-17K

1
Out of stock

49137B

SHROUD,OUTER,LH,M.D.BLACK

49137-5080-17K

1
Out of stock

49137C

SHROUD,OUTER,RH,M.D.BLACK

49137-5081-17K

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92161

DAMPER

92161-0183

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

130

BOLT-FLANGED,6X12

130CB0612

1
Out of stock

130A

BOLT-FLANGED,6X16

130CC0616

1
Out of stock
