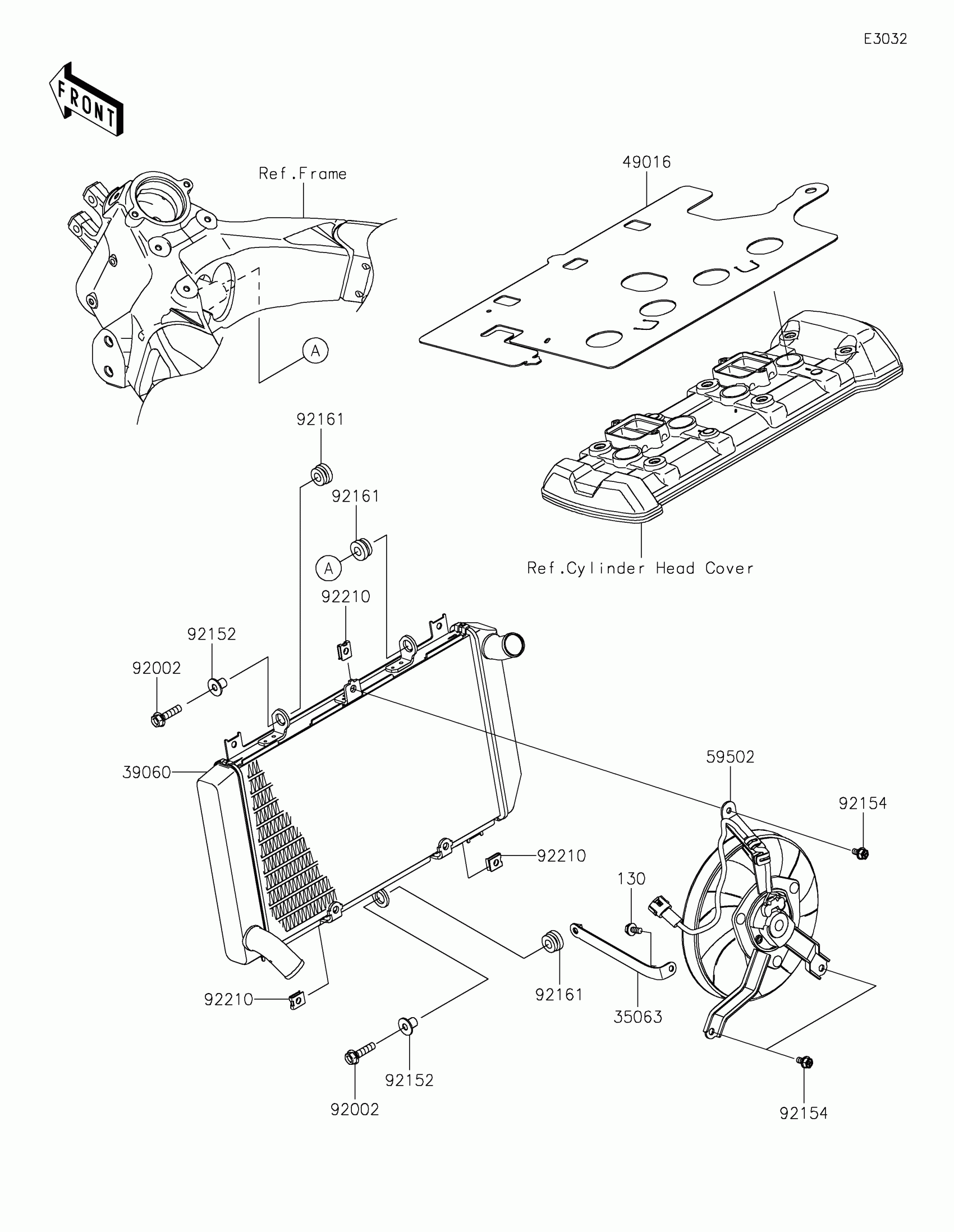

Find the part on the Radiator diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Versys 1100 Se LT ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35063

STAY

35063-0761

1

$5.88

In stock

39060

RADIATOR

39060-0779

1

$823.98

In stock

49016

COVER-SEAL

49016-0662

1

$36.67

In stock

59502

FAN-ASSY

59502-0651

1

$780.61

In stock

92002

BOLT,FLANGED,6X25

92002-1086

1

$4.37

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92154

BOLT

92154-1429

1

$3.75

In stock

92161

DAMPER

92161-2139

1

$2.20

In stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X16

130CC0616

1

$1.66

In stock
