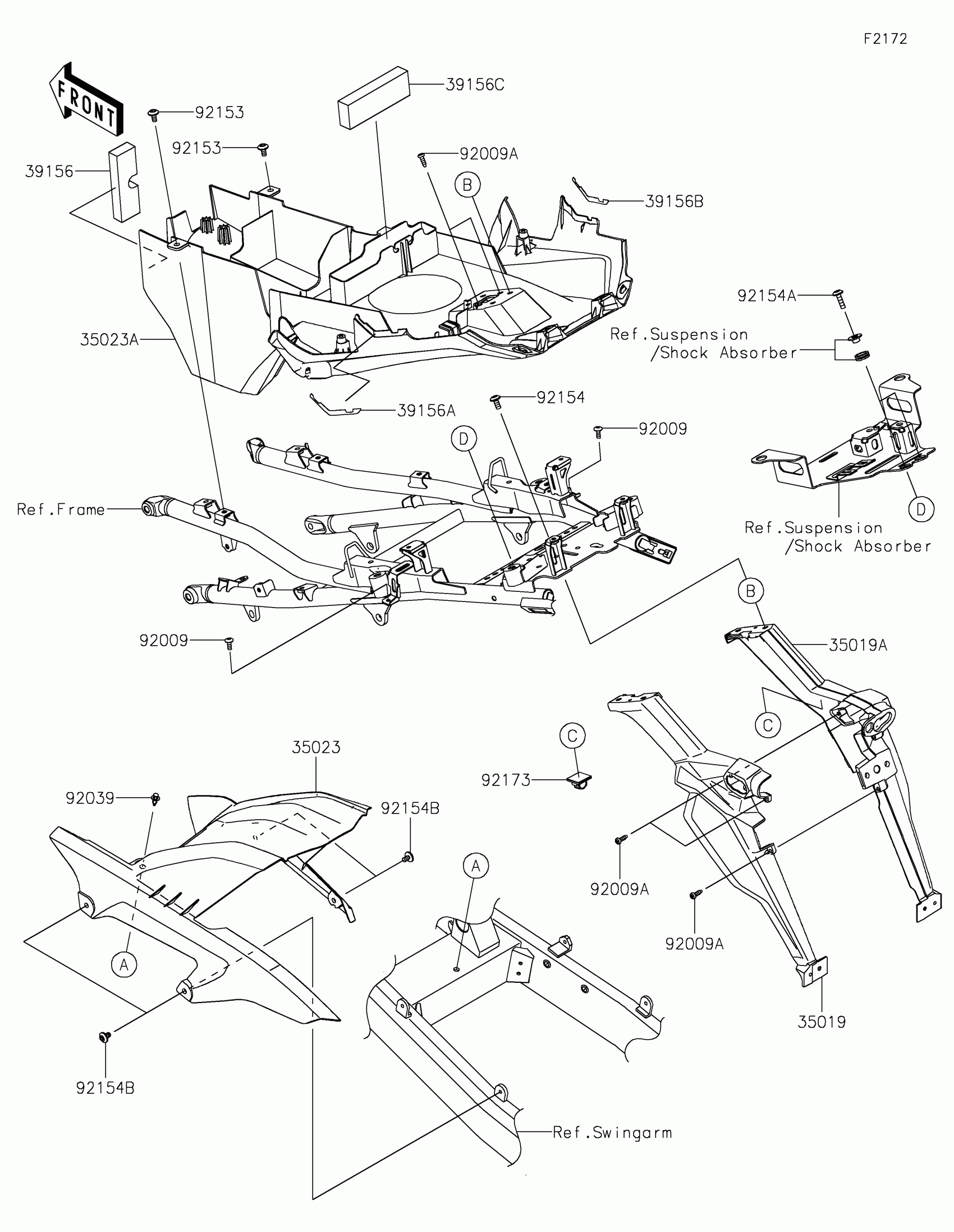

Kawasaki Versys 1100 SE LT ABS Rear Fender(s) Diagram

Description

Price

35019

FLAP,LH

35019-0643

$32.12

35019A

FLAP,RH

35019-0644

$35.12

35023

FENDER-REAR,INNER

35023-0449

$49.32

35023A

FENDER-REAR

35023-0462

$165.42

39156

PAD

39156-2422

$11.98

39156A

PAD

39156-2437

$4.70

39156B

PAD

39156-2450

$4.70

39156C

PAD,120X40X20

39156-2963

$10.91

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92009A

SCREW,TAPPING,5X16

92009-1984

$2.58

92039

RIVET

92039-0086

$5.54

92153

BOLT,SOCKET,6X12

92153-1948

$1.78

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,SOCKET,6X22

92154-0787

$2.67

92154B

BOLT,SOCKET,6X10

92154-4006

$1.69

92173

CLAMP,DRAIN

92173-1055

$6.34
