2025 Kawasaki Versys 1100 Se LT ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

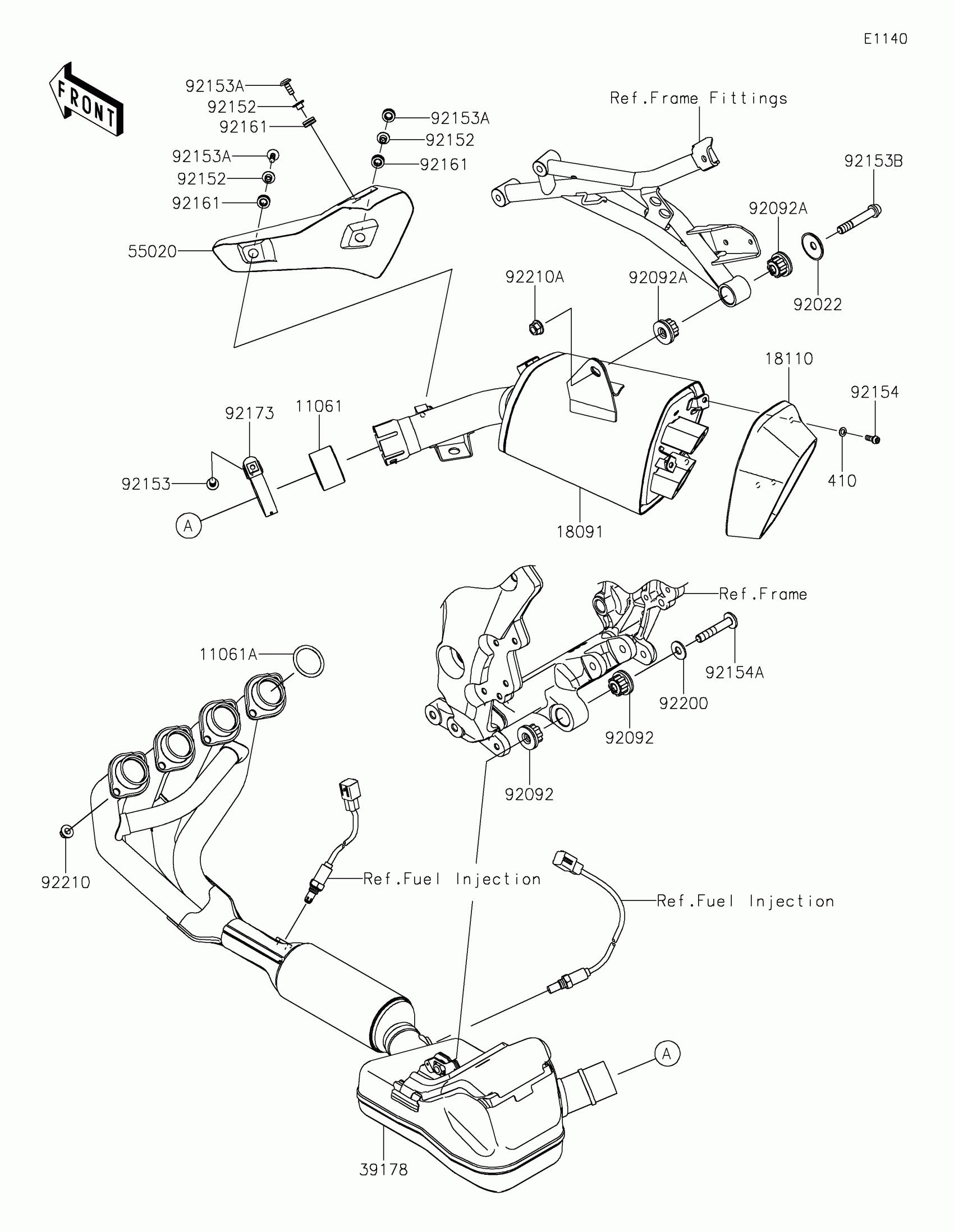

2025 Kawasaki Versys 1100 Se LT ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,MUFFLER CONNECTING

11061-0726

1
Out of stock

11061A

GASKET,EXHAUST PIPE HOLDER

11061-1373

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1315

1
Out of stock

18110

BODY END-MUFFLER

18110-0208

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0484

1
Out of stock

55020

GUARD,HEAT

55020-2239

1
Out of stock

92022

WASHER

92022-289

1
Out of stock

92092

BUSHING-RUBBER

92092-1081

1
Out of stock

92092A

BUSHING-RUBBER,MUFFLER

92092-1087

1
Out of stock

92152

COLLAR,6.3X8.3X16

92152-0286

1
Out of stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92153B

BOLT,SOCKET,10X60

92153-1837

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92154A

BOLT,SOCKET,10X65

92154-2642

1
Out of stock

92161

DAMPER

92161-0306

1
Out of stock

92173

CLAMP

92173-1320

1
Out of stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock
