2025 Kawasaki Versys 1100 Se LT ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki Versys 1100 Se LT ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

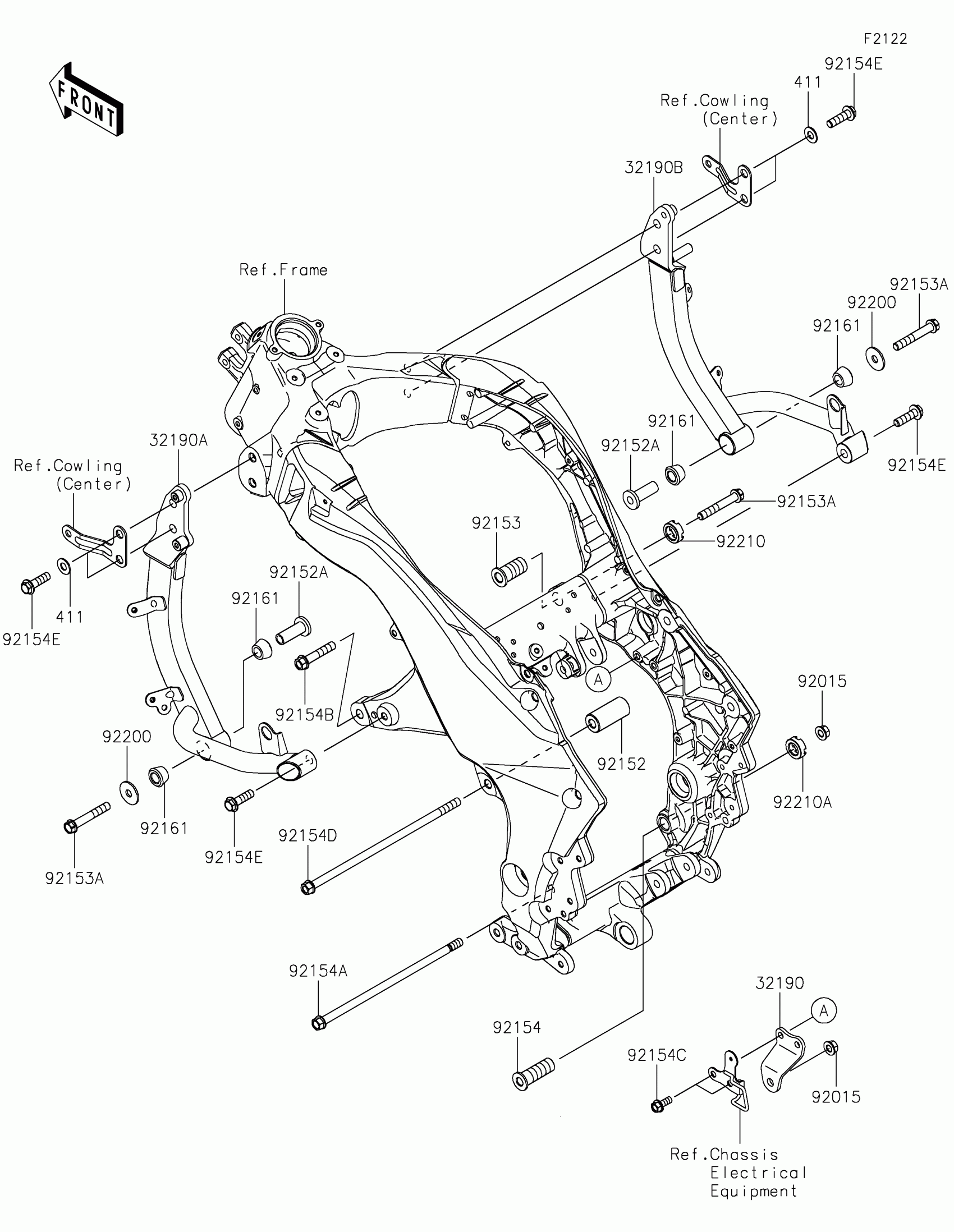

2025 Kawasaki Versys 1100 Se LT ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32190

1

$10.69

In stock

32190A

1

$168.14

In stock

32190B

1

$168.14

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92152

COLLAR,11X26X56.5

92152-0853

1

$14.78

In stock

92152A

COLLAR,10.5X14.5X44

92152-1908

1
Out of stock

92153

BOLT,SOCKET,20X43

92153-0488

1
Out of stock

92153A

BOLT,FLANGED,10X65

92153-1931

1

$6.16

In stock

92154

1

$29.09

In stock

92154A

BOLT,FLANGED,10X255

92154-0827

1

$23.26

In stock

92154B

BOLT,FLANGED,10X54

92154-0903

1

$7.32

In stock

92154C

BOLT,FLANGED,8X20

92154-1852

1

$2.15

In stock

92154D

BOLT,FLANGED,10X270

92154-2309

1

$29.09

In stock

92154E

BOLT,FLANGED,10X35

92154-7111

1

$4.90

In stock

92161

DAMPER,13.7X26X15

92161-1687

1

$3.27

In stock

92200

WASHER,10.2X32X2.3

92200-0978

1
Out of stock

92210

NUT,20MM

92210-0591

1
Out of stock

92210A

NUT,18MM

92210-1203

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock
