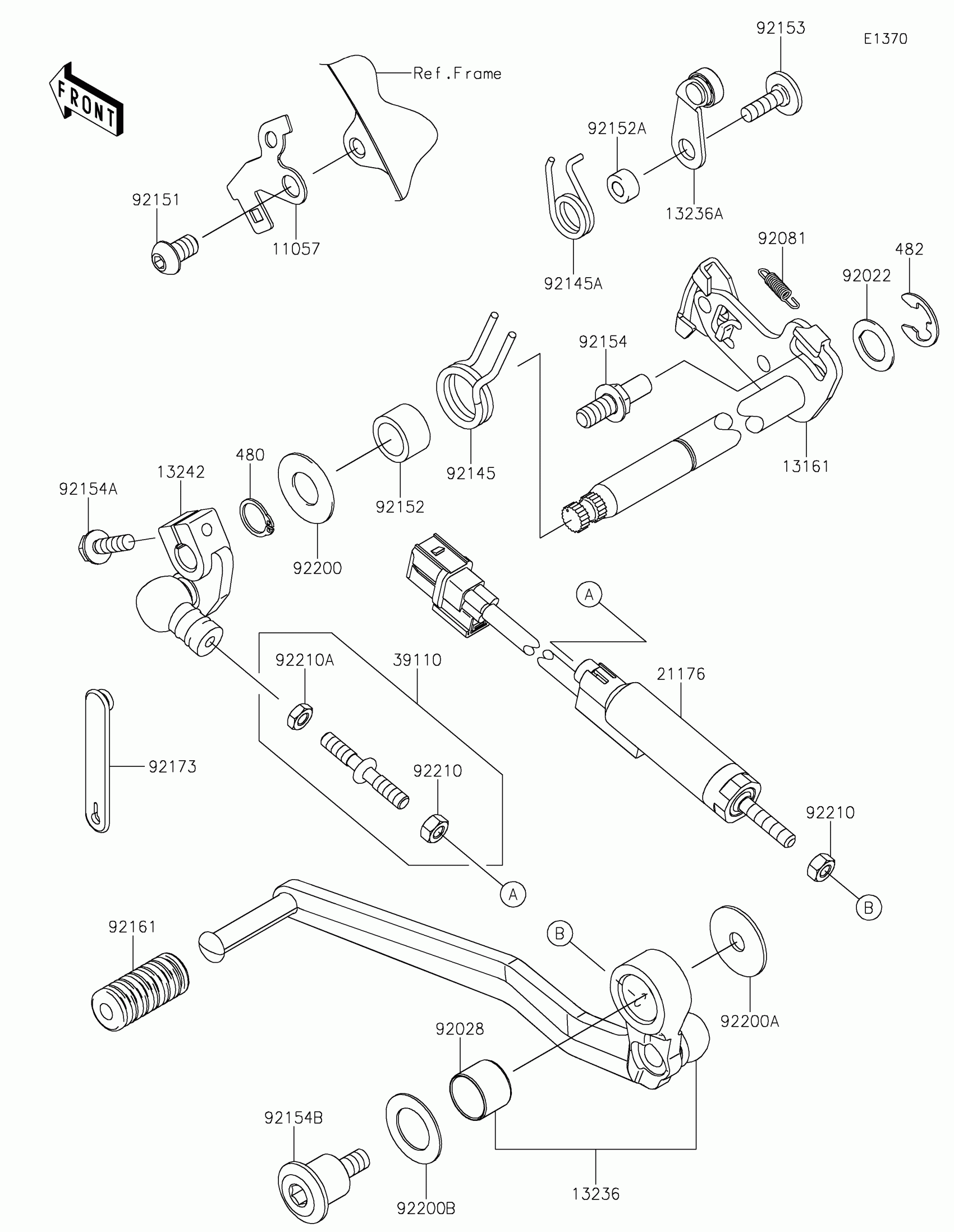

Kawasaki Versys 1100 SE LT ABS Gear Change Mechanism Diagram

Description

Price

11057

BRACKET,QUICK SHIFTER

11057-1984

$2.02

13161

LEVER-COMP-CHANGE SHAFT

13161-0617

$86.52

13236

LEVER-COMP,CHANGE PEDAL

13236-0812

$167.15

13236A

LEVER-COMP

13236-0835

$11.66

13242

LEVER-ASSY-CHANGE

13242-0264

$55.57

21176

SENSOR,QUICK SHIFTER

21176-0884

$230.94

39110

ROD-ASSY-TIE

39110-0048

$20.56

92022

WASHER,CHANGE SHAFT

92022-1628

$5.71

92028

BUSHING

92028-1558

$9.03

92081

SPRING,PAWL RETURN

92081-1708

$5.66

92145

SPRING

92145-1122

$9.37

92145A

SPRING

92145-2387

$7.39

92151

BOLT,8X14

92151-1438

$1.76

92152

COLLAR,14.2X19.9X12.0

92152-1383

$3.19

92152A

COLLAR

92152-2705

$3.49

92153

BOLT,6X20

92153-1505

$7.61

92154

BOLT,RETURN SPRING

92154-1838

$8.81

92154A

BOLT,FLANGED,6X20

92154-2090

$2.25

92154B

BOLT

92154-2822

$41.44

92161

DAMPER,CHANGE PEDAL

92161-2389

$4.65

92173

CLAMP

92173-1526

$3.56

92200

WASHER

92200-0265

$1.85

92200A

WASHER,8.2X30X1.5

92200-0810

$3.36

92200B

WASHER,18.3X30X1

92200-0812

$3.68

92210

NUT,6MM

92210-1100

$1.68

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.20

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.53
