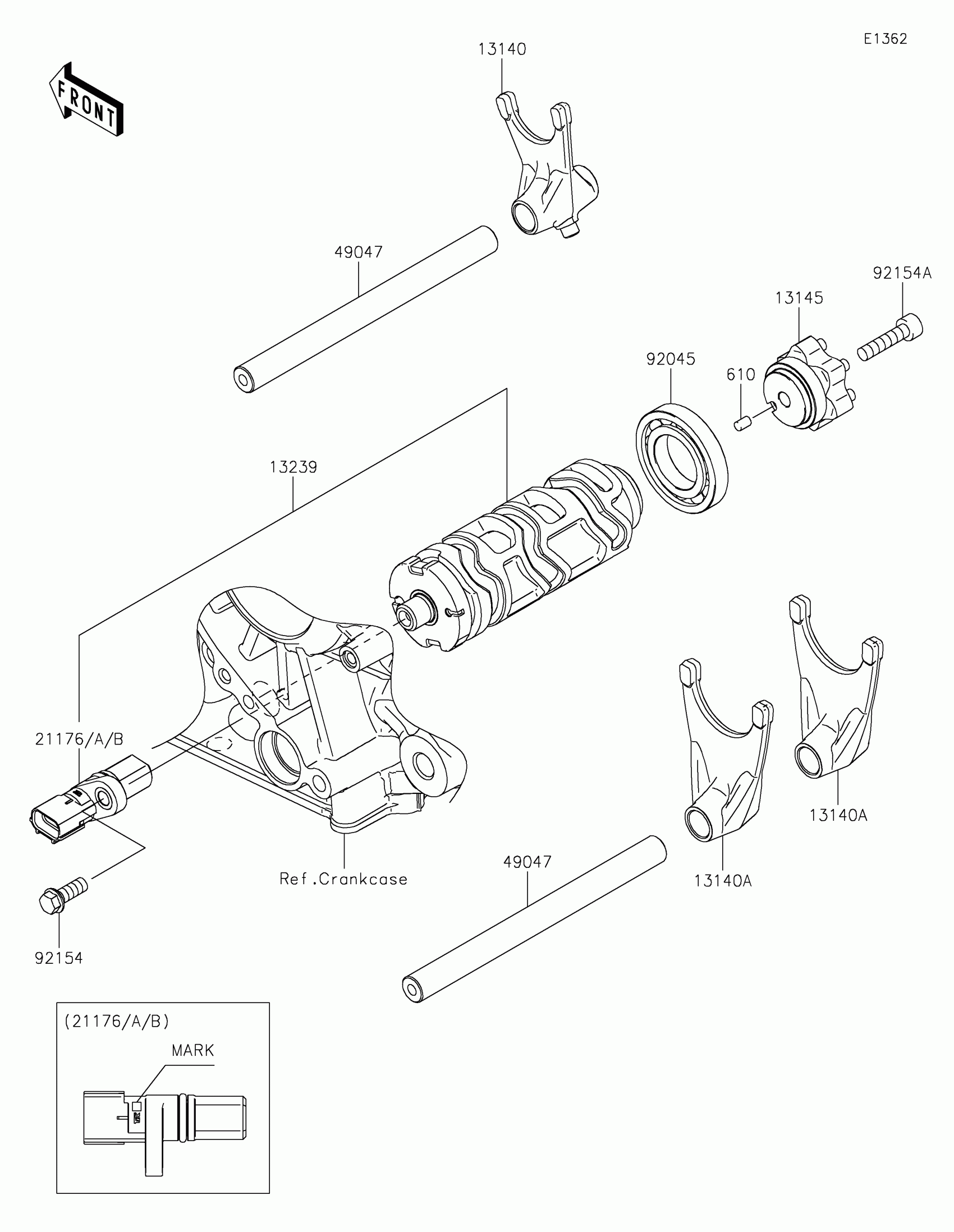

Kawasaki Versys 1100 SE LT ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT

13140-0061

$104.39

13140A

FORK-SHIFT

13140-0062

$104.39

13145

CAM-CHANGE DRUM

13145-0048

$58.84

13239

DRUM-ASSY-CHANGE

13239-0600

$367.86

21176

SENSOR,GEAR POSITION,M MARK

21176-0825

$151.78

21176A

SENSOR,GEAR POSITION,H MARK

21176-0845

$151.78

21176B

SENSOR,GEAR POSITION,L MARK

21176-0846

$151.78

49047

ROD-SHIFT

49047-0644

$29.16

92045

BEARING-BALL,16005

92045-1045

$28.25

92154

BOLT,FLANGED,6X16

92154-2096

$2.80

92154A

BOLT,SOCKET,6X25

92154-3829

$1.69

610

ROLLER,4X6

610A0406

$4.31
