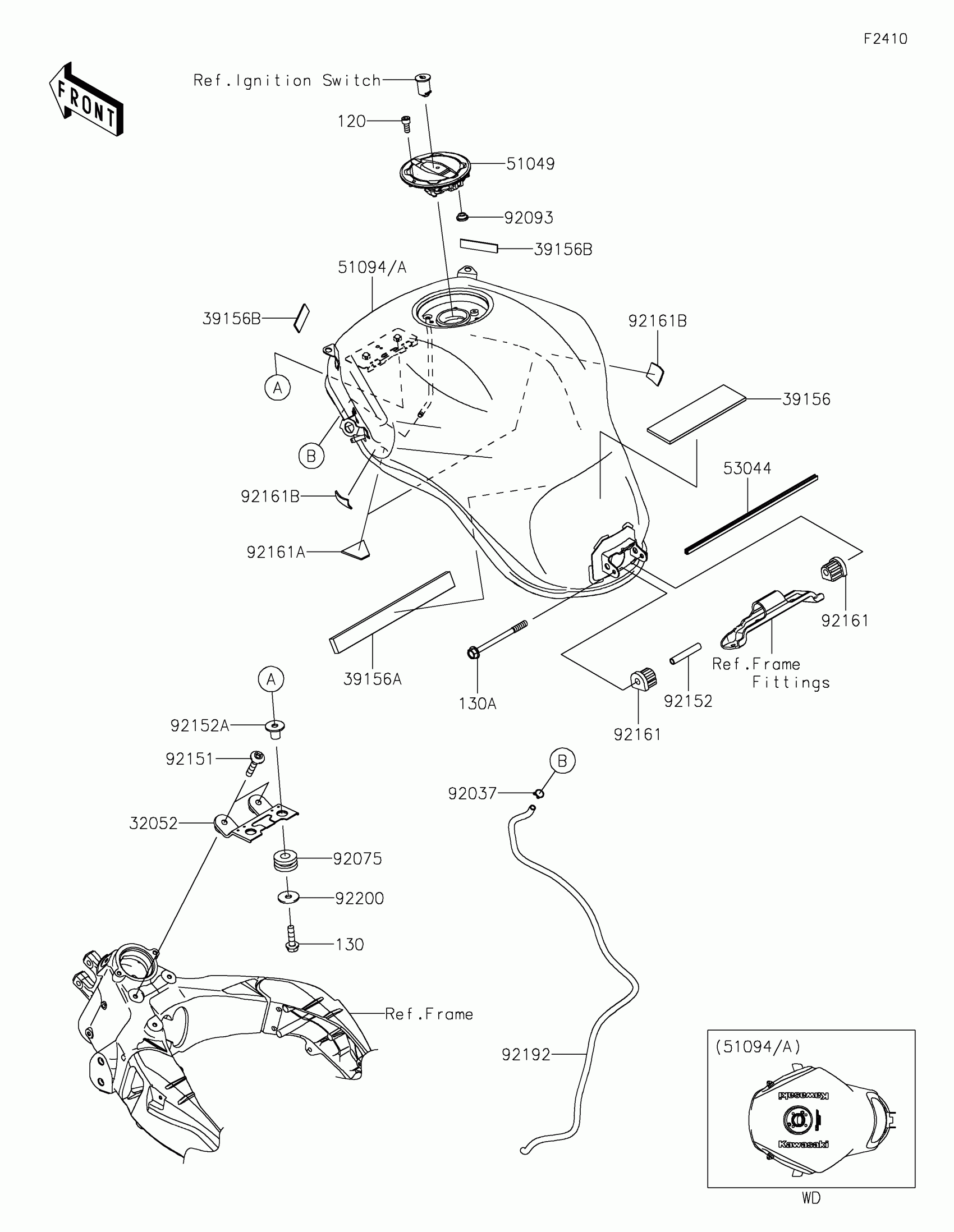

Kawasaki Versys 1100 SE LT ABS Fuel Tank Diagram

Description

Price

32052

BRACKET-TANK,F.S.BLACK

32052-0749-18R

$49.33

39156

PAD,FUEL TANK,RR

39156-0982

$7.34

39156A

PAD,25X260X10

39156-1866

$3.72

39156B

PAD,15X60X2

39156-2448

$1.27

51049

CAP-TANK,FUEL

51049-0756

$136.31

51094

TANK-COMP-FUEL,M.D.BLACK

51094-5048-J03

$974.87

51094A

TANK-COMP-FUEL,M.D.BLACK

51094-5049-J03

Unavailable

53044

TRIM

53044-1296

$11.99

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92152A

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92161

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92161A

DAMPER,30X48X3

92161-1768

$5.25

92161B

DAMPER,25X25X2

92161-1770

$1.17

92192

TUBE,6X9X926(30)

92192-1024

$24.04

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X70

130BB0670

$5.93
