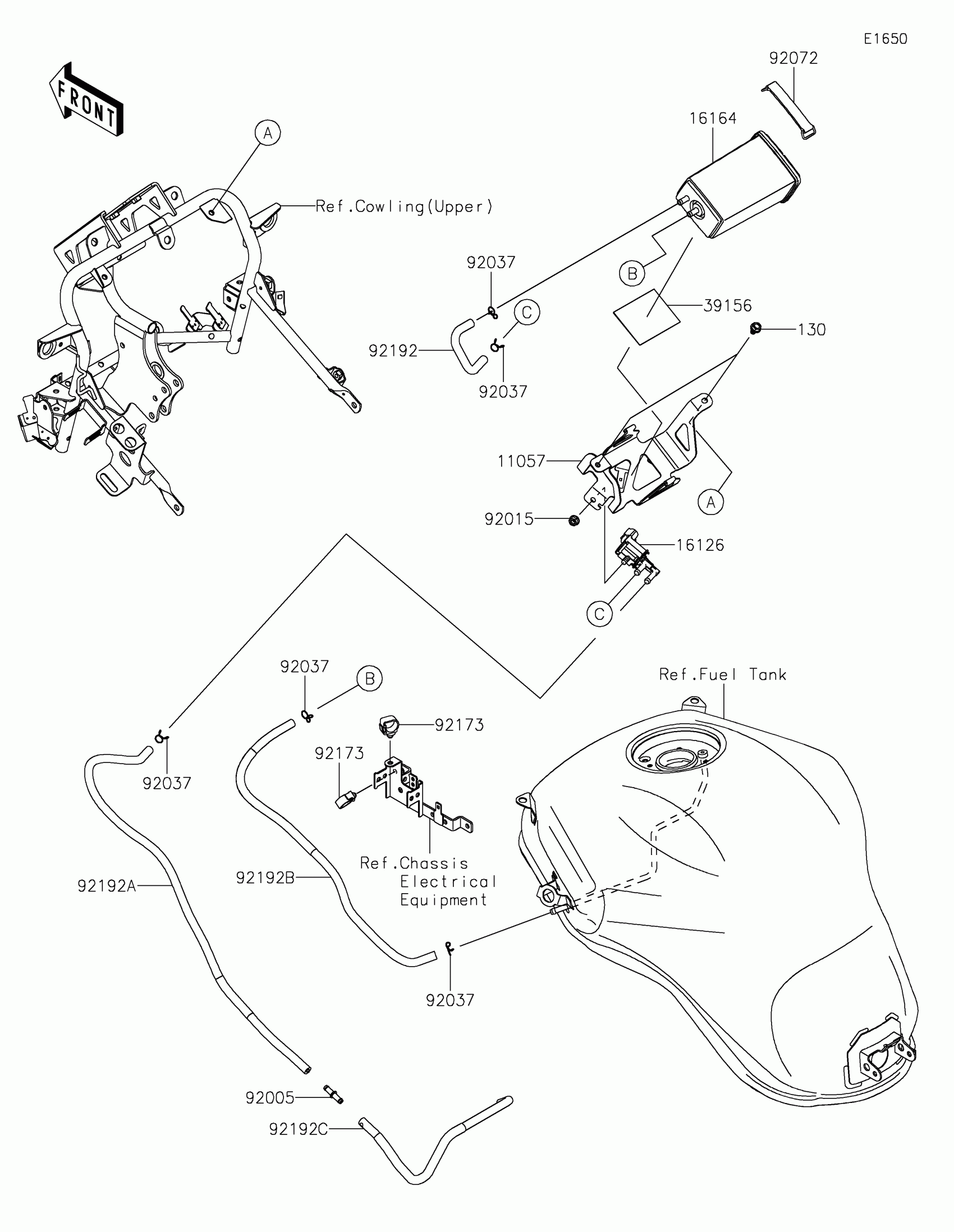

Kawasaki Versys 1100 SE LT ABS Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,CANISTER

11057-1728

$29.81

16126

VALVE,PCV

16126-0740

$106.99

16164

CANISTER

16164-0012

$149.73

39156

PAD,CANISTER BRACKET

39156-1871

$3.72

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-1712

$5.00

92072

BAND,TOOL,L=82

92072-1294

$14.90

92173

CLAMP,HOLDER CLIP

92173-0868

$3.02

92192

TUBE,CANISTER-VALVE

92192-1915

$25.37

92192A

TUBE,VALVE-THB(VALVE SIDE)

92192-1916

$71.26

92192B

TUBE,TANK-CANISTER

92192-1985

$71.10

92192C

TUBE,VALVE-THB(THB SIDE)

92192-2786

$52.51

130

BOLT-FLANGED,6X10

130BA0610

$1.20
