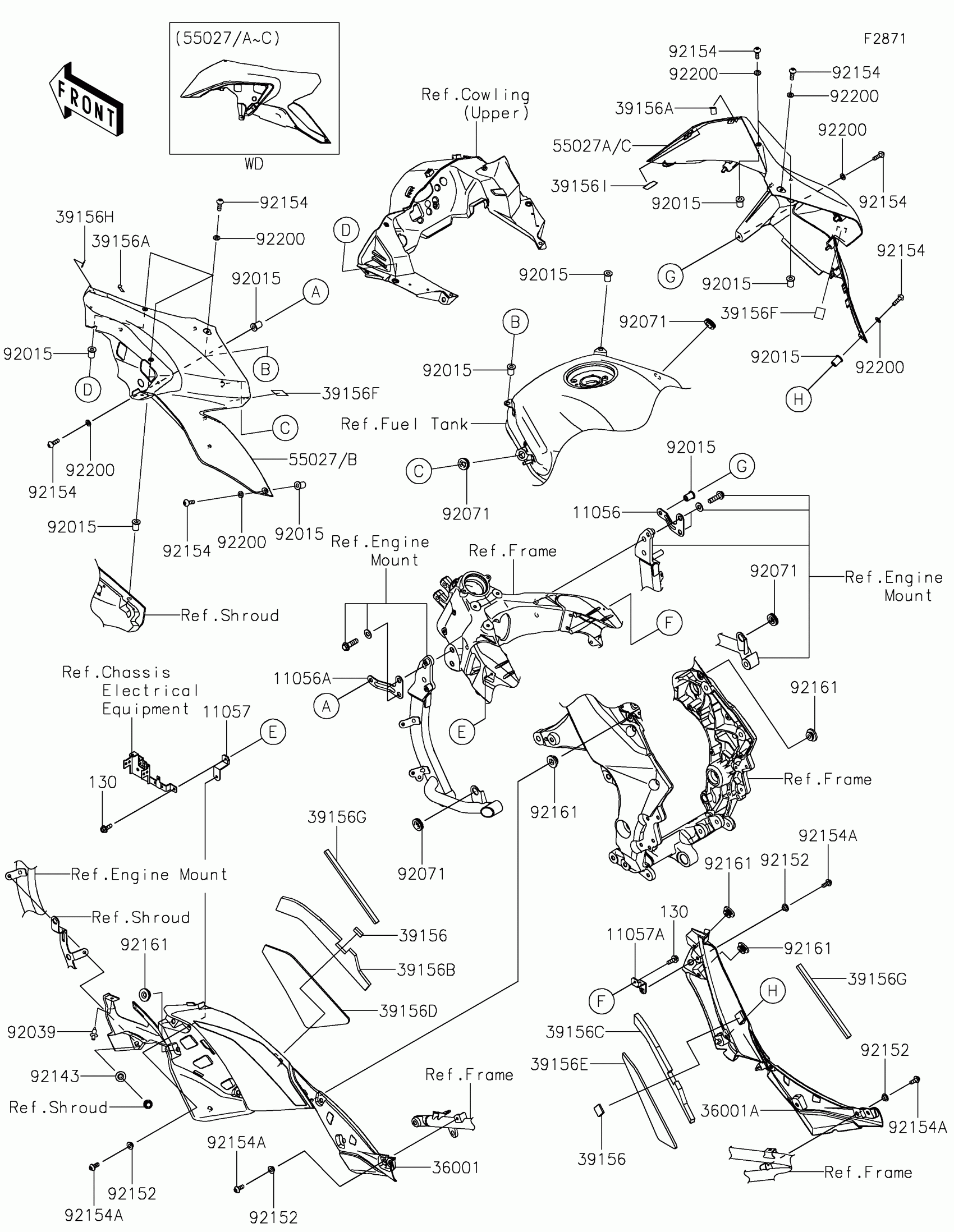

Kawasaki Versys 1100 SE LT ABS Cowling(Center) Diagram

#

Description
Price

11056

BRACKET,SIDE COVER,RH,FR

11056-1119

$6.63

11056A

BRACKET,SIDE COVER,LH,FR

11056-1120

$6.63

11057

BRACKET,LH

11057-1700

$5.88

11057A

BRACKET,RH

11057-1701

$5.88

36001

COVER-SIDE,LH

36001-0691

$112.11

36001A

COVER-SIDE,RH

36001-0692

$112.11

39156

PAD,18X23,T5

39156-0810

$1.93

39156A

PAD,15X20X0.2

39156-1784

$1.02

39156B

PAD,SIDE COVER,LH,UPP

39156-2408

$7.31

39156C

PAD,SIDE COVER,RH,UPP

39156-2409

$7.31

39156D

PAD,SIDE COVER,LH,LWR

39156-2439

$9.45

39156E

PAD,SIDE COVER,RH,LWR

39156-2440

$9.45

39156F

PAD,35X25X0.2

39156-2449

$1.52

39156G

PAD,8X210X10

39156-2454

$2.92

39156H

PAD,21X11X0.2

39156-2473

$2.68

39156I

PAD,21X11X0.2

39156-2474

$2.68

55027

COWLING,SIDE,LH,M.G.GRAY+BLK

55027-5454-J16

$505.83

55027A

COWLING,SIDE,RH,M.G.GRAY+BLK

55027-5455-J16

$505.83

55027B

COWLING,SIDE,LH,M.D.BLACK+WHT

55027-5457-J24

Unavailable

55027C

COWLING,SIDE,RH,M.D.BLACK+WHT

55027-5458-J24

Unavailable

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92071

GROMMET

92071-1043

$5.46

92143

COLLAR

92143-1087

$4.31

92152

COLLAR

92152-0451

$3.90

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92161

DAMPER

92161-1531

$3.02

92200

WASHER,5.2X10X1.0

92200-1820

$0.63

130

BOLT-FLANGED,5X14

130BA0514

$2.06
