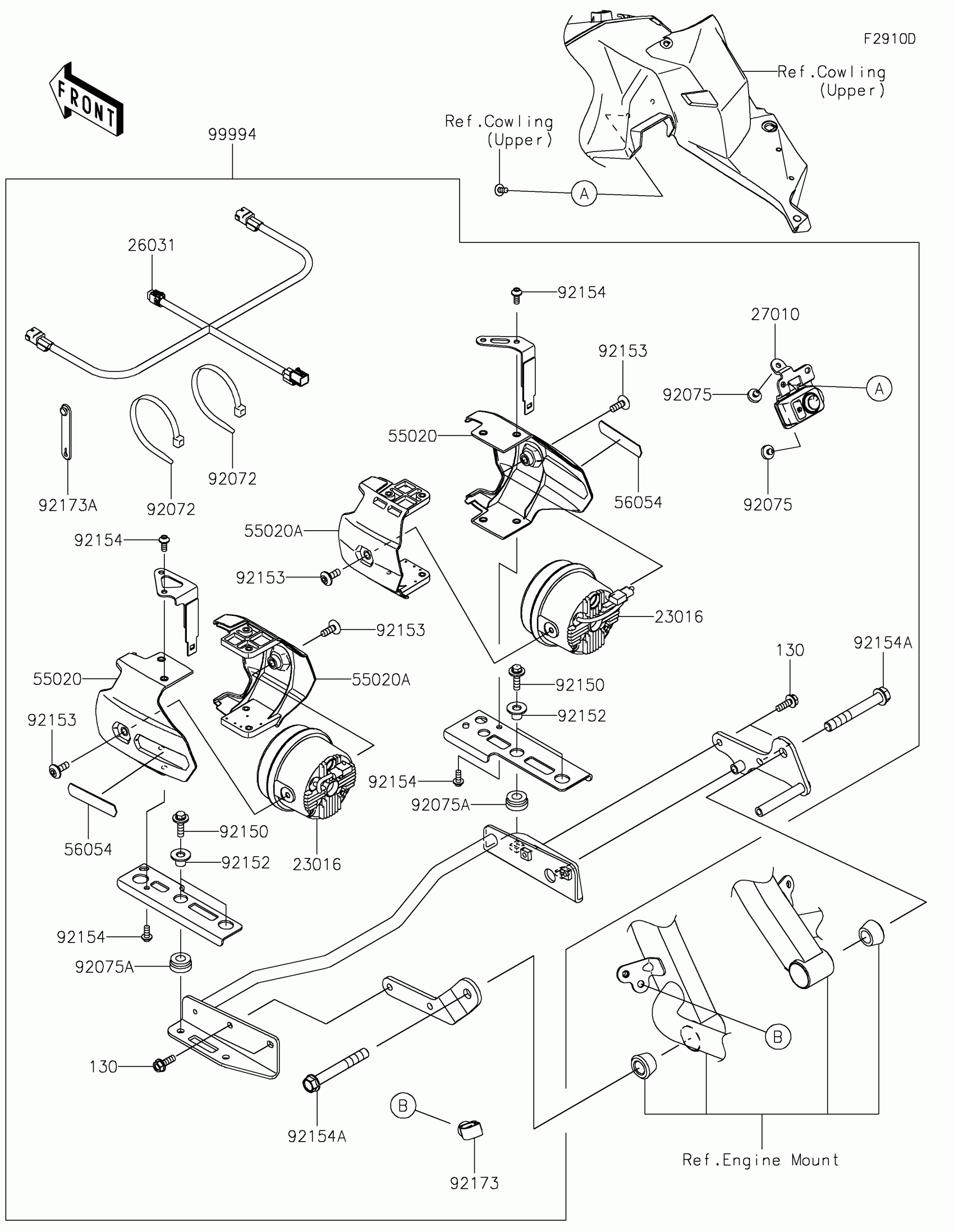

Kawasaki Versys 1100 SE LT ABS Accessory(Fog Lamp) Diagram

Description

Price

23016

LAMP-ASSY,LED,FOG,PIAA

23016-0599

$393.88

26031

HARNESS,FOG LAMP

26031-2644

$50.43

27010

SWITCH,FOG LAMP

27010-0891

$76.43

55020

GUARD,OUTER

55020-1825

$14.76

55020A

GUARD,INNER

55020-1826

$5.85

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$12.56

92072

BAND

92072-3851

$2.73

92075

DAMPER,BOOST SENSOR

92075-2113

$1.15

92075A

DAMPER

92075-277

$2.84

92150

BOLT,FLANGED,6X22

92150-1481

$4.31

92152

COLLAR,6.8X10X11.6

92152-1699

$4.41

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92154A

BOLT,FLANGED,10X75

92154-1923

$8.05

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-1526

$3.94

99994

FOG LAMP

99994-2192

$615.97

130

BOLT-FLANGED,6X18

130BB0618

$1.81
