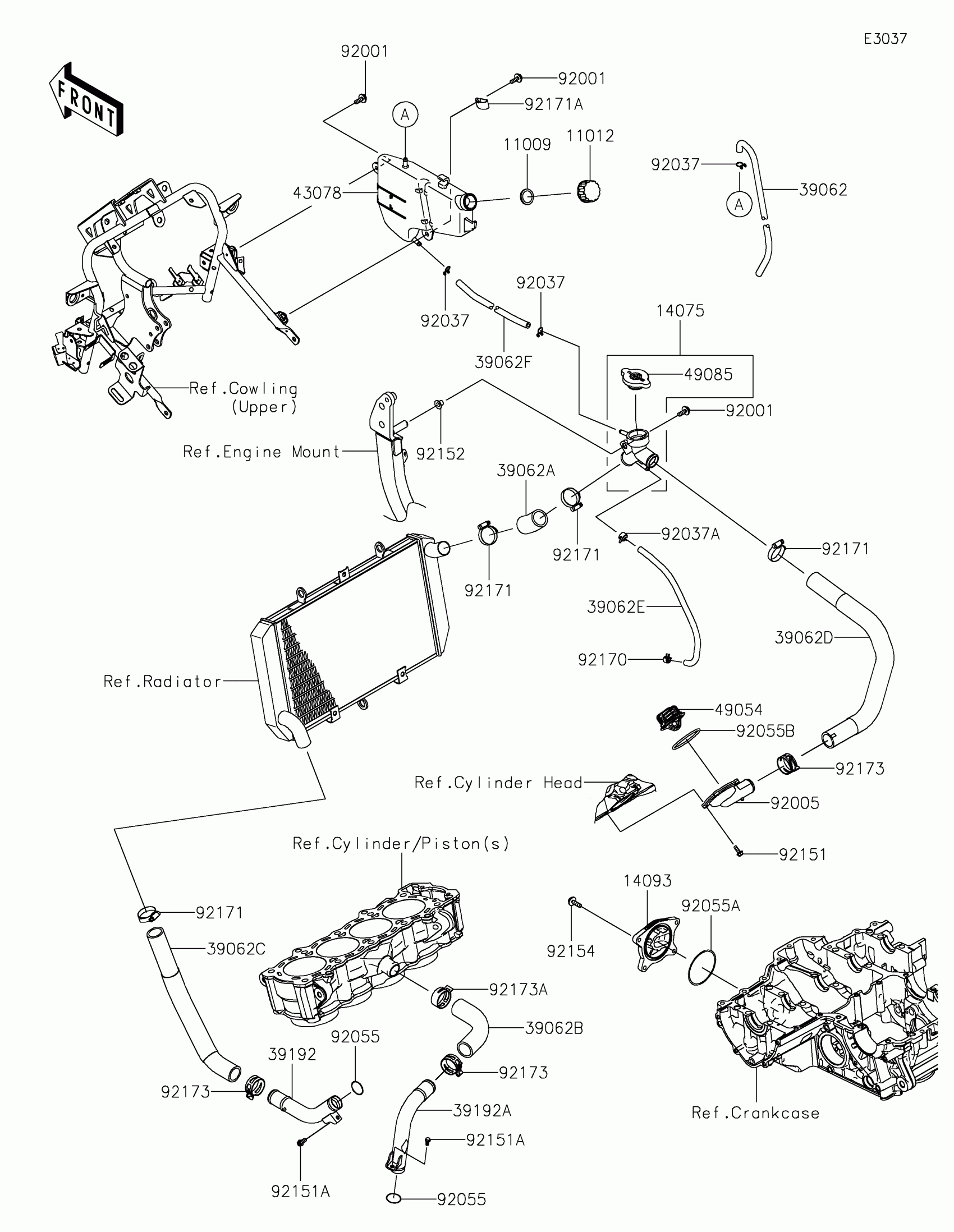

Find the part on the Water Pipe diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys® 1000 SE LT+ Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

14075

CAP-ASSY

14075-0028

1

$157.02

In stock

14093

COVER

14093-0144

1
Out of stock

39062

1

$16.07

In stock

39062A

1

$7.41

In stock

39062B

1

$17.32

In stock

39062C

1

$49.83

In stock

39062D

HOSE-COOLING,HEAD-CAP

39062-0820

1
Out of stock

39062E

HOSE-COOLING,AIR BLEED

39062-0821

1
Out of stock

39062F

1

$21.68

In stock

39192

1

$43.96

In stock

39192A

1

$39.12

In stock

43078

RESERVOIR

43078-0074

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92005

FITTING,THERMO CAP

92005-0842

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92055

RING-O,20.8X2.4

92055-0114

1
Out of stock

92055A

RING-O,63.3MM

92055-0739

1
Out of stock

92055B

RING-O,53.5X2.6

92055-0831

1
Out of stock

92151

BOLT,5X14

92151-1764

1
Out of stock

92151A

BOLT,6X12

92151-1997

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0403

1
Out of stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92171A

CLAMP

92171-0739

1
Out of stock

92173

CLAMP,34MM

92173-1360

1
Out of stock

92173A

CLAMP,35.5MM

92173-1432

1
Out of stock
