2020 Kawasaki Versys® 1000 SE LT+ Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

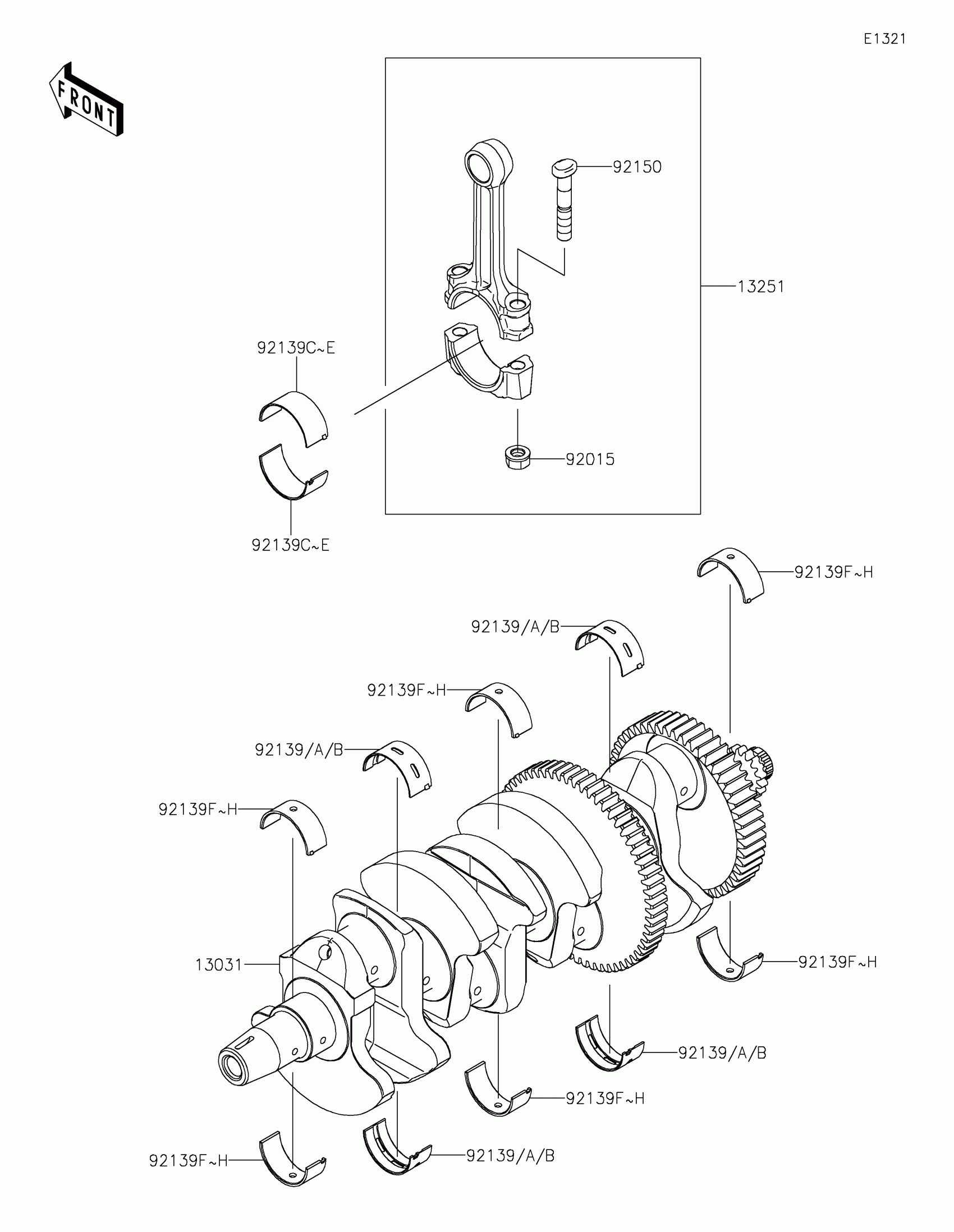

2020 Kawasaki Versys® 1000 SE LT+ Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0710

1
Out of stock

13251

ROD-ASSY-CONNECTING,II

13251-0726-II

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92139

BUSHING,CRANK #2,BLUE

92139-0032

—
Out of stock

92139A

BUSHING,CRANK #2,BLACK

92139-0033

1
Out of stock

92139B

BUSHING,CRANK #2,BROWN

92139-0034

—
Out of stock

92139C

BUSHING,CRANK PIN,BLUE

92139-0122

—
Out of stock

92139D

BUSHING,CRANK PIN,BLACK

92139-0123

1
Out of stock

92139E

BUSHING,CRANK PIN,BROWN

92139-0124

—
Out of stock

92139F

BUSHING,CRANK,#1,BLUE

92139-0217

—
Out of stock

92139G

BUSHING,CRANK,#1,BLACK

92139-0218

1
Out of stock

92139H

BUSHING,CRANK,#1,BROWN

92139-0219

—
Out of stock

92150

BOLT,CONNECTING ROD,8MM

92150-1216

1
Out of stock
