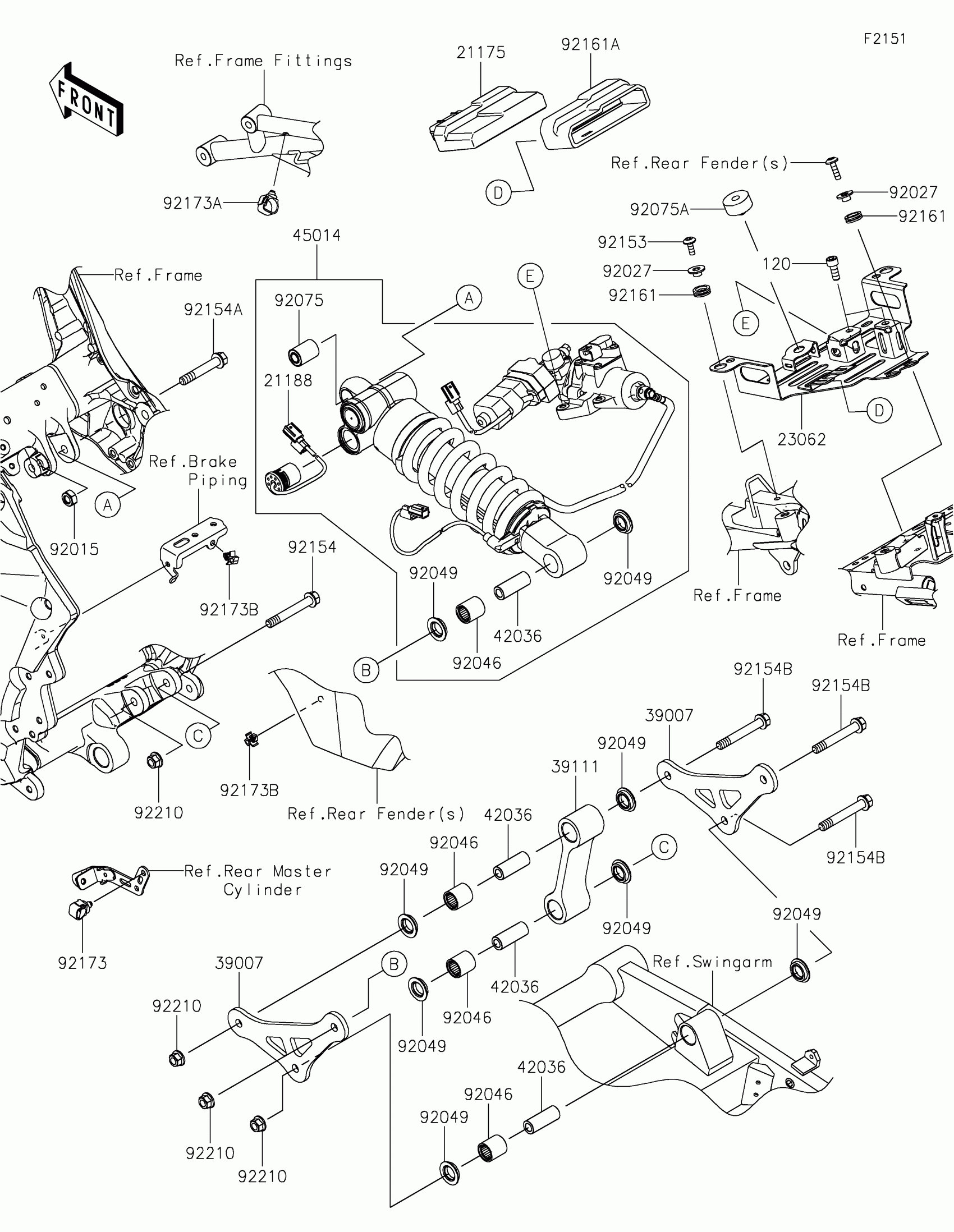

Kawasaki VERSYS® 1000 SE LT+ Suspension/Shock Absorber Diagram

Description

Price

120

BOLT-SOCKET,8X20

120CA0820

$4.45

21175

CONTROL UNIT-ELECTRONIC,KECS

21175-1555

$974.90

21188

SOLENOID

21188-0018

$507.78

23062

BRACKET-COMP,ADJ MOTOR

23062-1182

$294.24

39007

ARM-SUSP,F.S.BLACK

39007-0421-18R

$43.72

39111

ROD-TIE

39111-0361

$85.04

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

45014

SHOCKABSORBER,KECS

45014-0617

$4,203.73

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92027

COLLAR

92027-153

$6.22

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92075

DAMPER,SHOCKABSORBER

92075-1426

$12.32

92075A

DAMPER

92075-1737

$8.58

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,FLANGED,10X77

92154-0262

$5.59

92154A

BOLT,FLANGED,10X60

92154-0263

$5.29

92154B

BOLT

92154-0890

$10.90

92161

DAMPER,10X20X6

92161-1592

$7.32

92161A

DAMPER,ECU

92161-2137

$24.07

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173B

CLAMP

92173-1133

$3.90

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
