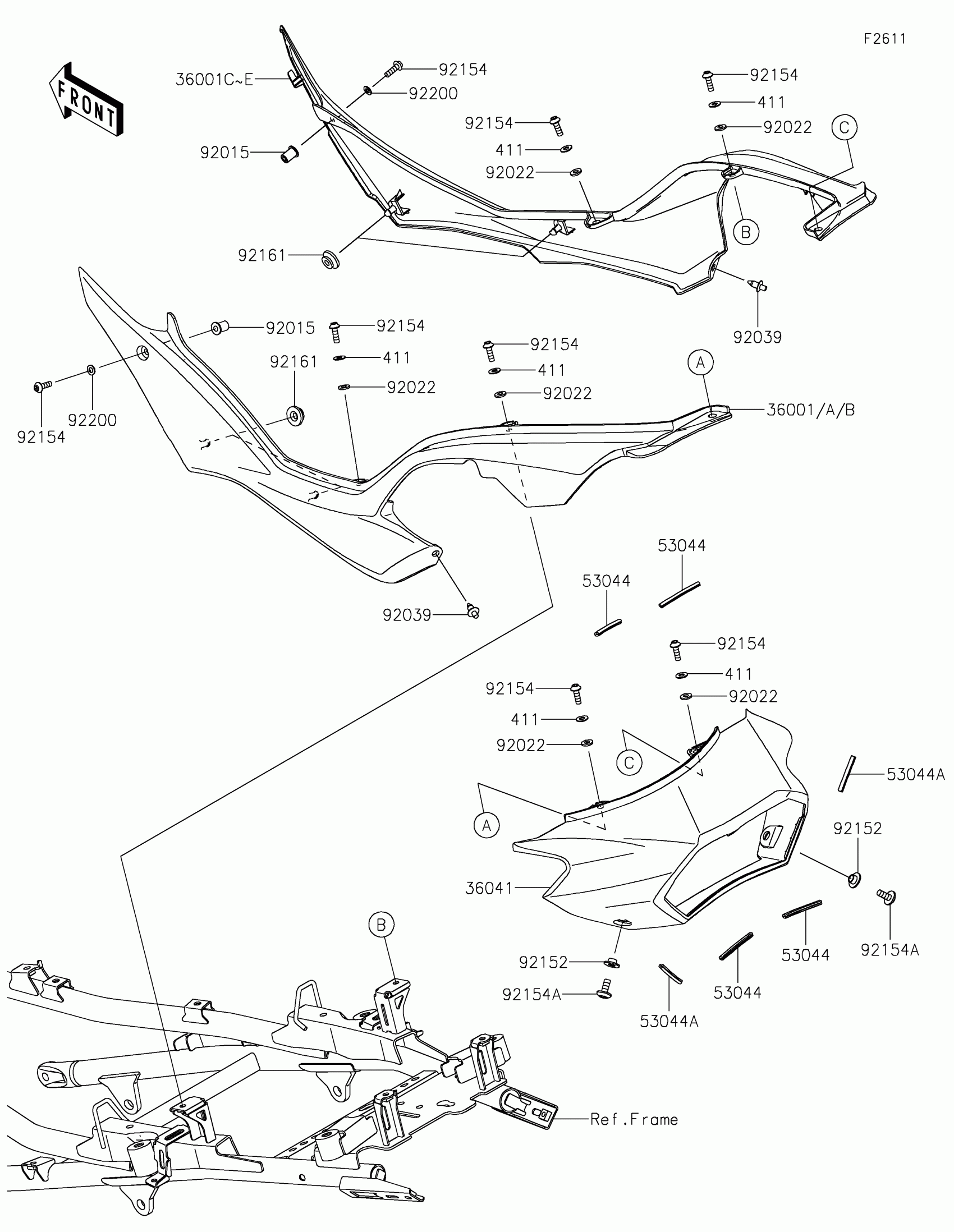

Kawasaki VERSYS® 1000 SE LT+ Side Covers Diagram

Description

Price

36001A

COVER-SIDE,LH,E.B.GREEN

36001-0689-J06

$184.96

36001B

COVER-SIDE,LH,M.C.GRAY

36001-0689-J07

Unavailable

36001D

COVER-SIDE,RH,E.B.GREEN

36001-0690-J06

$184.96

36001E

COVER-SIDE,RH,M.C.GRAY

36001-0690-J07

Unavailable

36041

COVER-TAIL

36041-0048

$72.89

411

WASHER-PLAIN,5MM

411AA0500

$0.56

53044

TRIM,48MM

53044-0643

$5.88

53044A

TRIM,38MM

53044-0660

$7.37

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92039

RIVET

92039-0068

$2.97

92152

COLLAR

92152-0718

$3.75

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,6X14

92154-0907

$1.97

92161

DAMPER

92161-1531

$3.02

92200

WASHER,5.2X10X1.0

92200-1820

$0.63
