2024 Kawasaki Versys 1000 SE LT+ Shroud Diagram

← All diagrams

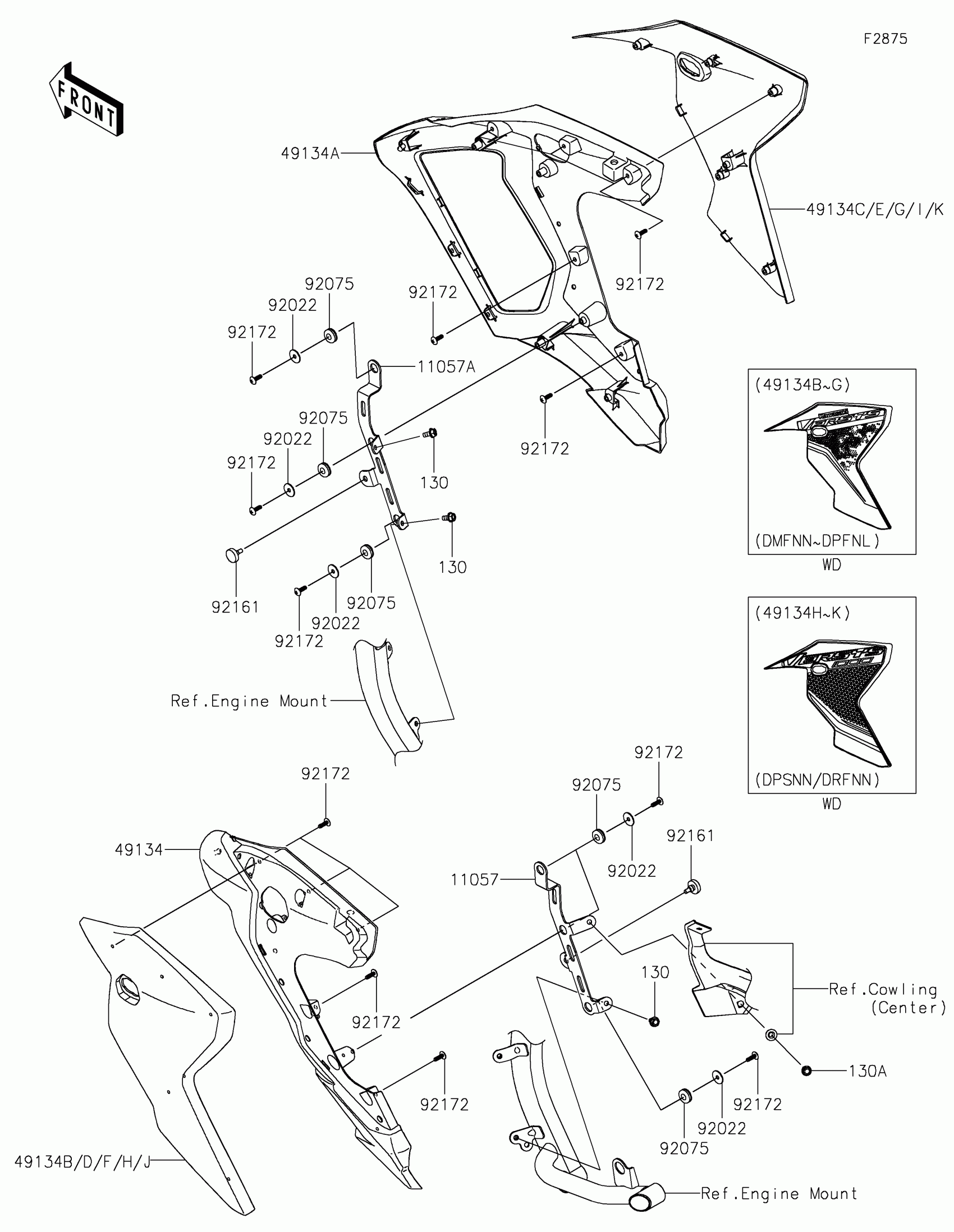

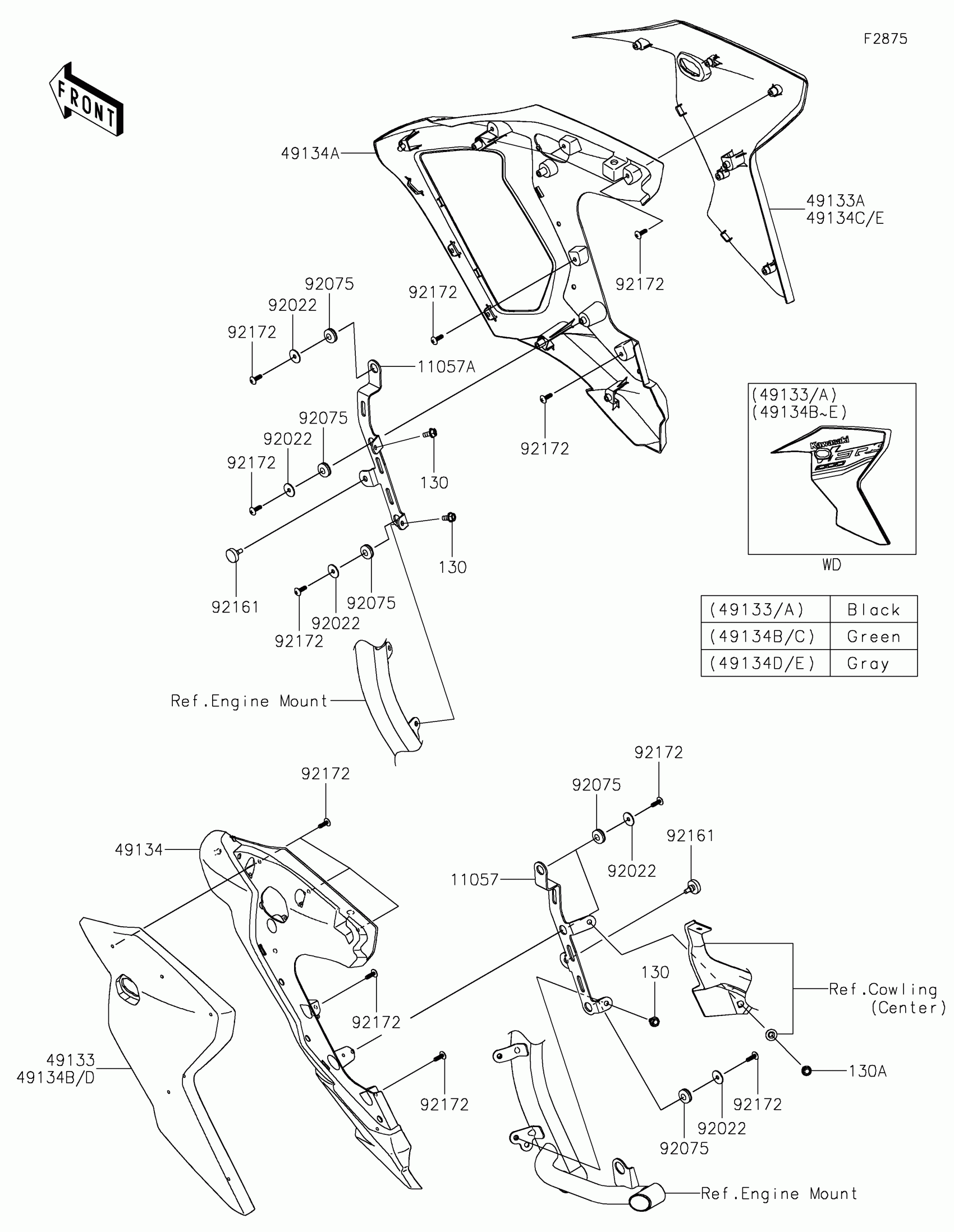

Find the part on the Shroud diagram for your 2024 Kawasaki Versys 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 1000 SE LT+ Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SHROUD,LH

11057-1698

1
Out of stock

11057A

BRACKET,SHROUD,RH

11057-1699

1
Out of stock

49134

SHROUD,INNER,LH

49134-0004

1
Out of stock

49134A

SHROUD,INNER,RH

49134-0005

1
Out of stock

49134B

SHROUD,OUTER,LH,M.D.BLACK

49134-5223-17K

1
Out of stock

49134C

SHROUD,OUTER,RH,M.D.BLACK

49134-5224-17K

1
Out of stock

49134F

SHROUD,OUTER,LH,M.D.BLACK

49134-5293-17K

1
Out of stock

49134G

SHROUD,OUTER,RH,M.D.BLACK

49134-5294-17K

1
Out of stock

49134H

SHROUD,OUTER,LH,M.F.S.BLACK

49134-5423-739

1
Out of stock

49134I

SHROUD,OUTER,RH,M.F.S.BLACK

49134-5424-739

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92161

DAMPER

92161-0183

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

130

BOLT-FLANGED,6X12

130CB0612

1

$2.12

In stock

130A

BOLT-FLANGED,6X16

130CC0616

1

$1.66

In stock
