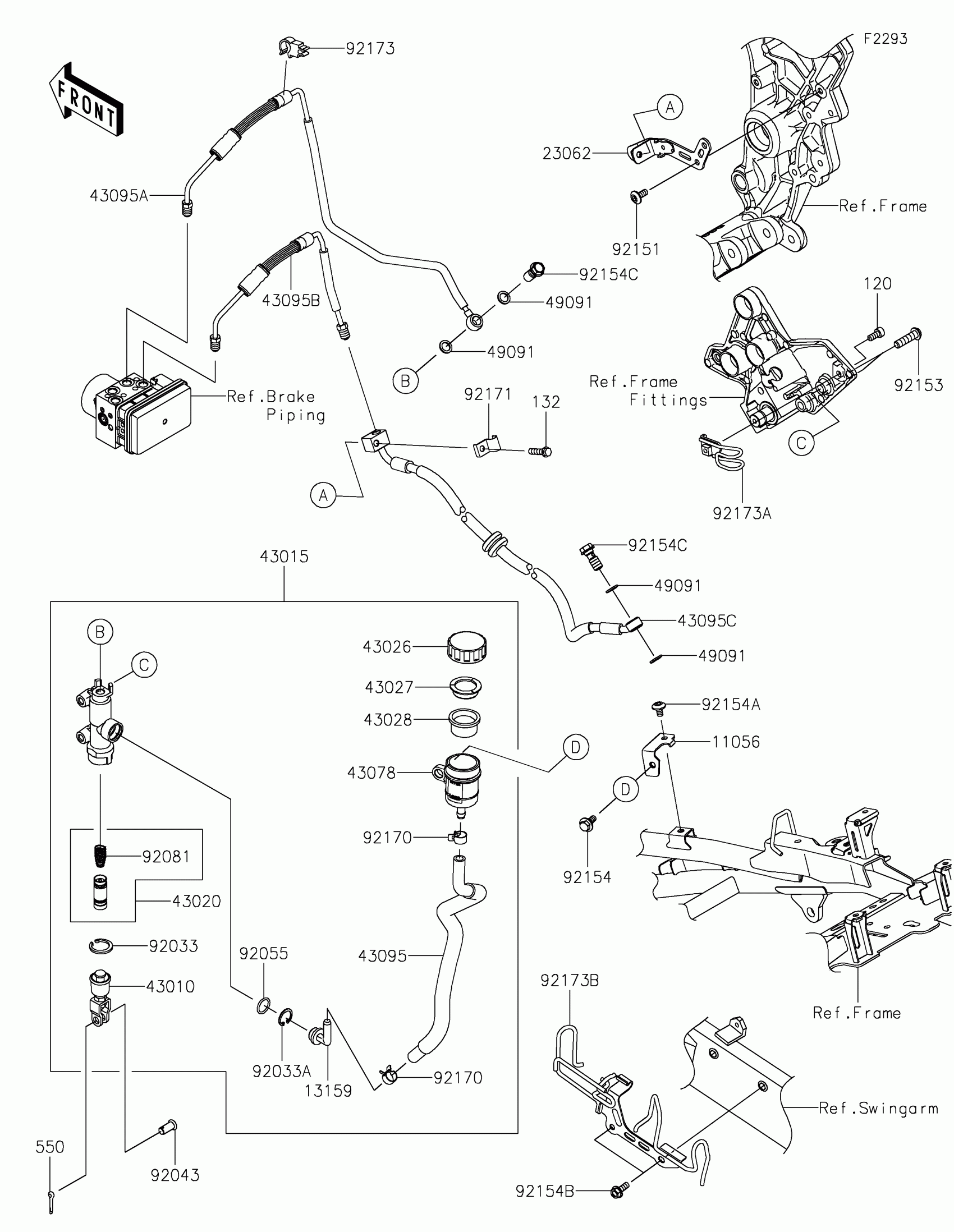

Kawasaki VERSYS® 1000 SE LT+ Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,RESERVOIR TANK

11056-7304

$7.32

120

BOLT-SOCKET,6X14

120CB0614

$4.12

13159

CONNECTOR

13159-1056

$14.10

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

23062

BRACKET-COMP

23062-1178

$11.02

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0572

$410.95

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0700

$35.06

43095A

HOSE-BRAKE,MASTER CYLINDER-HU

43095-1589

$174.17

43095B

HOSE-BRAKE,HU-SWING ARM

43095-1590

$129.20

43095C

HOSE-BRAKE,SWING ARM-CALIPER

43095-1591

$106.79

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0904

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,8X30

92153-0393

$3.73

92154

BOLT,FLANGED,6X16

92154-0385

$3.99

92154A

BOLT,SOCKET,6X10

92154-0774

$1.63

92154B

BOLT,FLANGED,6X16

92154-0899

$2.32

92154C

BOLT,BANJO,10X23

92154-1712

$3.94

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0620

$7.51

92173

CLAMP

92173-0170

$4.41

92173A

CLAMP,RR BRAKE HOSE

92173-1388

$20.41

92173B

CLAMP,SWING ARM

92173-1913

$92.55
