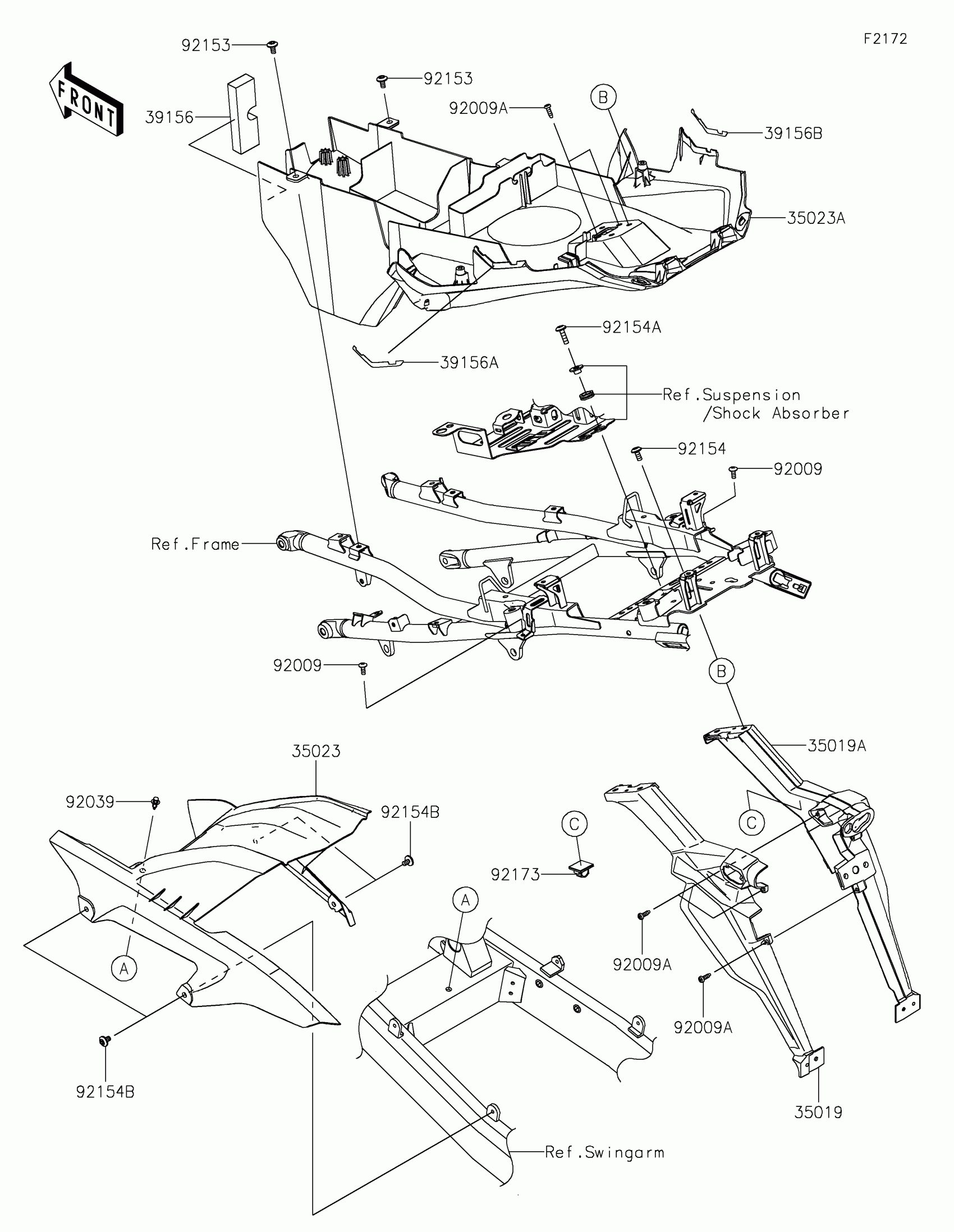

Kawasaki VERSYS® 1000 SE LT+ Rear Fender(s) Diagram

Description

Price

35019

FLAP,LH

35019-0643

$32.73

35019A

FLAP,RH

35019-0644

$35.79

35023

FENDER-REAR,INNER

35023-0449

$50.28

35023A

FENDER-REAR

35023-0462

$168.92

39156

PAD

39156-2422

$11.47

39156A

PAD

39156-2437

$4.17

39156B

PAD

39156-2450

$4.17

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92009A

SCREW,TAPPING,5X16

92009-1984

$1.82

92039

RIVET

92039-0086

$4.18

92153

BOLT,SOCKET,6X12

92153-1948

$1.53

92154

BOLT,SOCKET,6X14

92154-0745

$1.66

92154A

BOLT,SOCKET,6X22

92154-0787

$2.19

92154B

BOLT,SOCKET,6X10

92154-4006

$1.47

92173

CLAMP,DRAIN

92173-1055

$5.54
