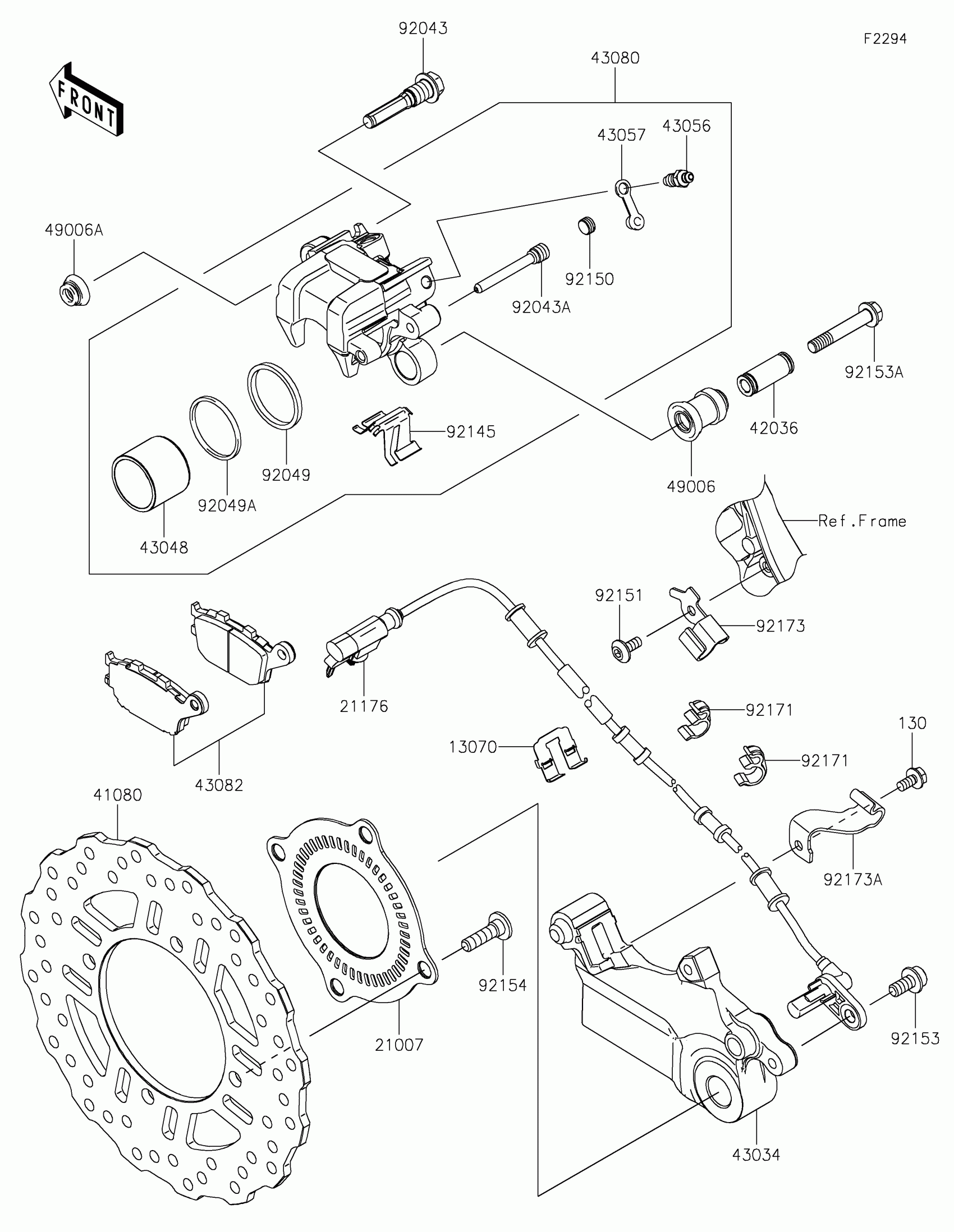

Kawasaki VERSYS® 1000 SE LT+ Rear Brake Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

13070

GUIDE,BRAKE PAD

13070-0076

$11.32

21007

ROTOR,SENSOR,RR

21007-0682

$91.38

21176

SENSOR,SPEED,RR

21176-0881

$134.58

41080

DISC,RR

41080-0632

Unavailable

42036

SLEEVE

42036-0050

$7.61

43034

HOLDER-BRAKE

43034-0148

$115.70

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

Unavailable

43082

PAD-ASSY-BRAKE

43082-0073

$77.94

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-1520

$7.81

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92150

BOLT,PLUG

92150-1692

$5.99

92151

BOLT,SOCKET,6X14

92151-1654

$1.35

92153

BOLT,SOCKET,8X16

92153-0327

$4.72

92153A

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,SOCKET,8X30

92154-1865

$3.57

92171

CLAMP,BRAKE HOSE

92171-1819

$4.85

92173

CLAMP,RR WHEEL SPEED SENSOR

92173-1144

$7.24

92173A

CLAMP,BRAKE HOLDER

92173-1912

$5.14
