2020 Kawasaki Versys® 1000 SE LT+ Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

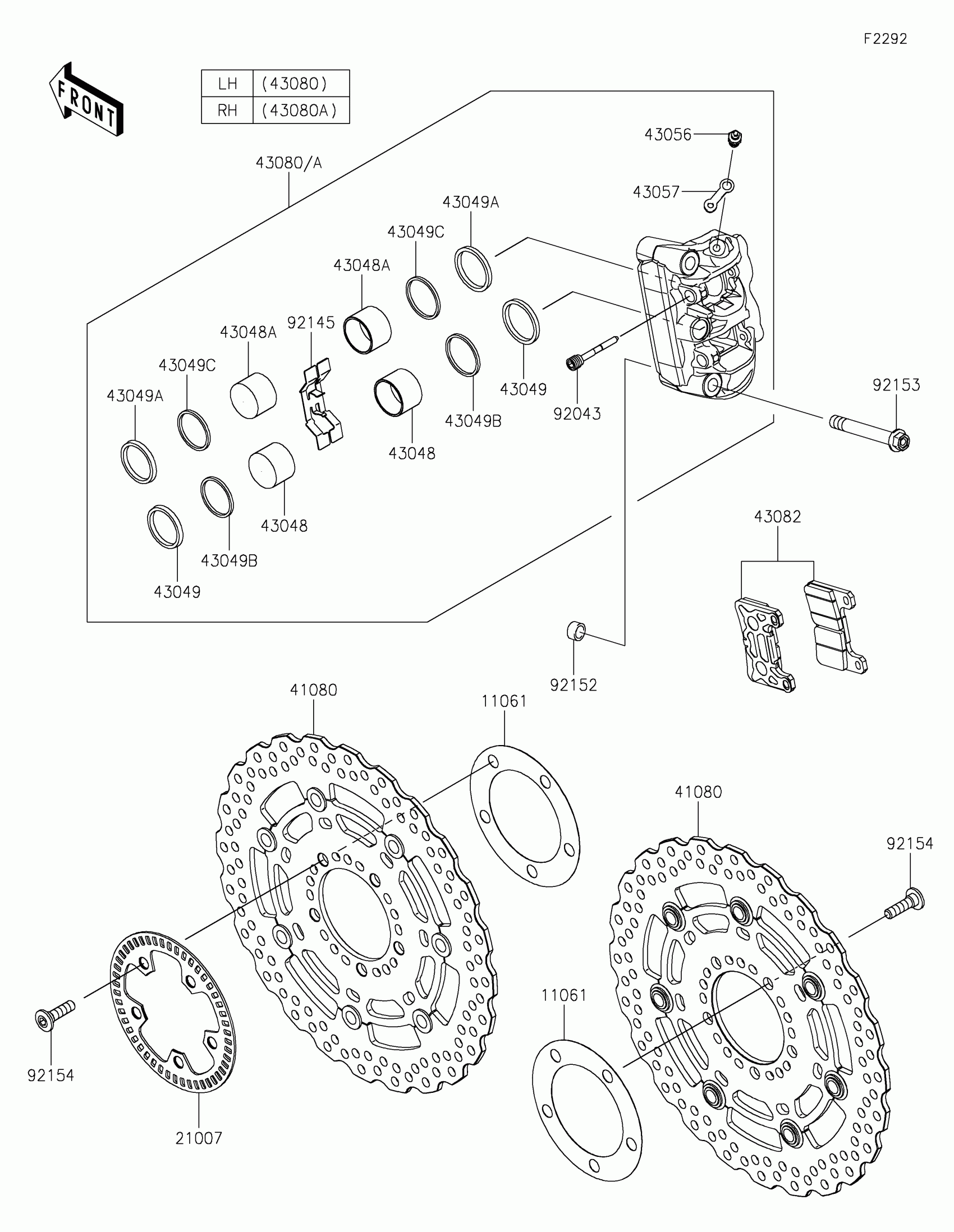

2020 Kawasaki Versys® 1000 SE LT+ Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0029

1
Out of stock

21007

ROTOR,SENSOR,FR

21007-0681

1
Out of stock

41080

DISC,FR,BLACK+SIL

41080-0697-11I

1
Out of stock

43048

PISTON-CALIPER

43048-0023

1
Out of stock

43048A

PISTON-CALIPER

43048-0024

1
Out of stock

43049

PACKING,PISTON

43049-0012

1
Out of stock

43049A

PACKING,PISTON

43049-0013

1
Out of stock

43049B

PACKING

43049-1068

1
Out of stock

43049C

PACKING,WIPER

43049-1107

1
Out of stock

43056

BREATHER-BRAKE

43056-0007

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0143-DJ

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0144-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0182

1
Out of stock

92043

PIN,PAD

92043-1709

1
Out of stock

92145

SPRING,PAD

92145-1873

1
Out of stock

92152

COLLAR,DOWEL PIN

92152-0679

1
Out of stock

92153

BOLT,FLANGED,10X73

92153-1890

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-1865

1
Out of stock
