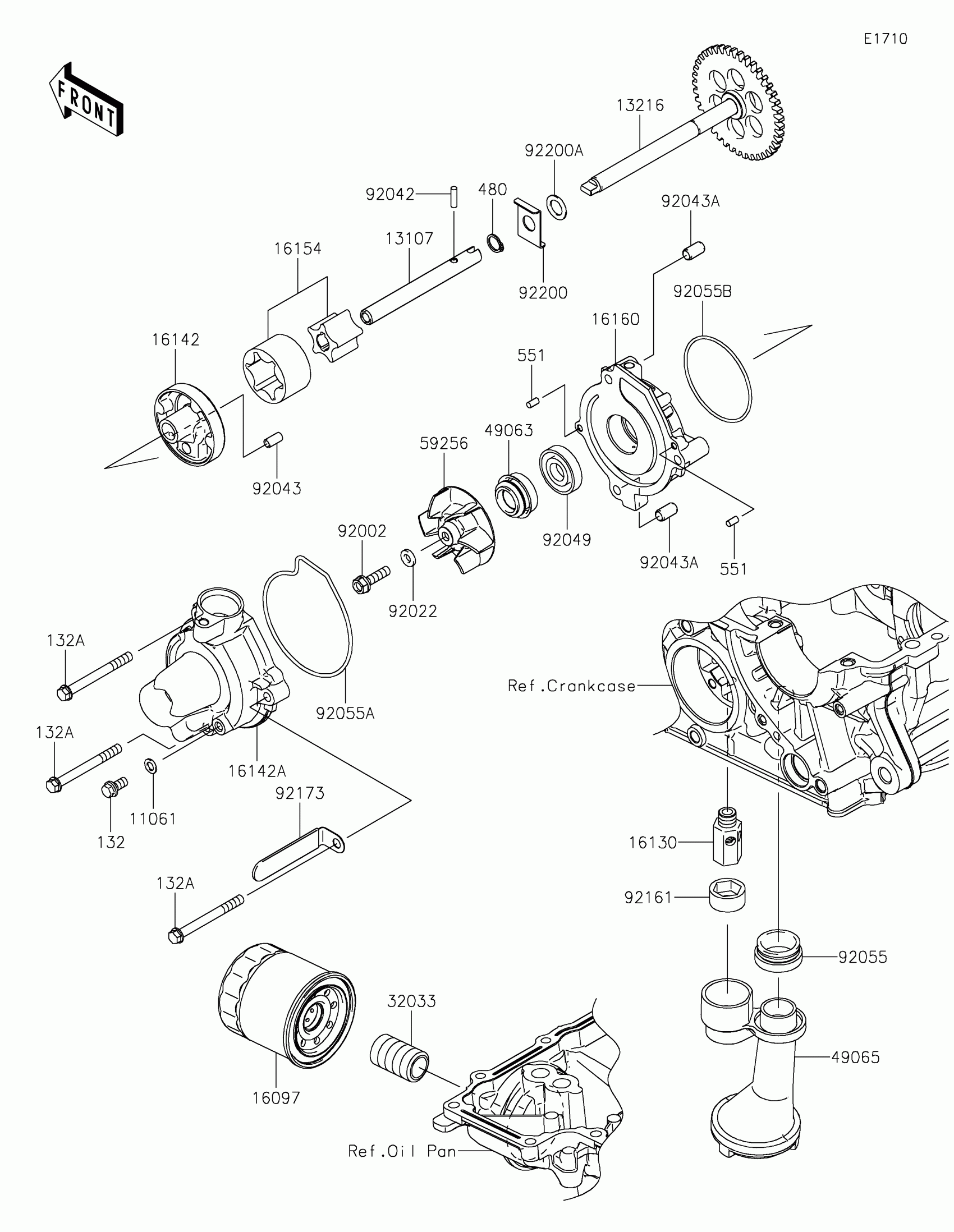

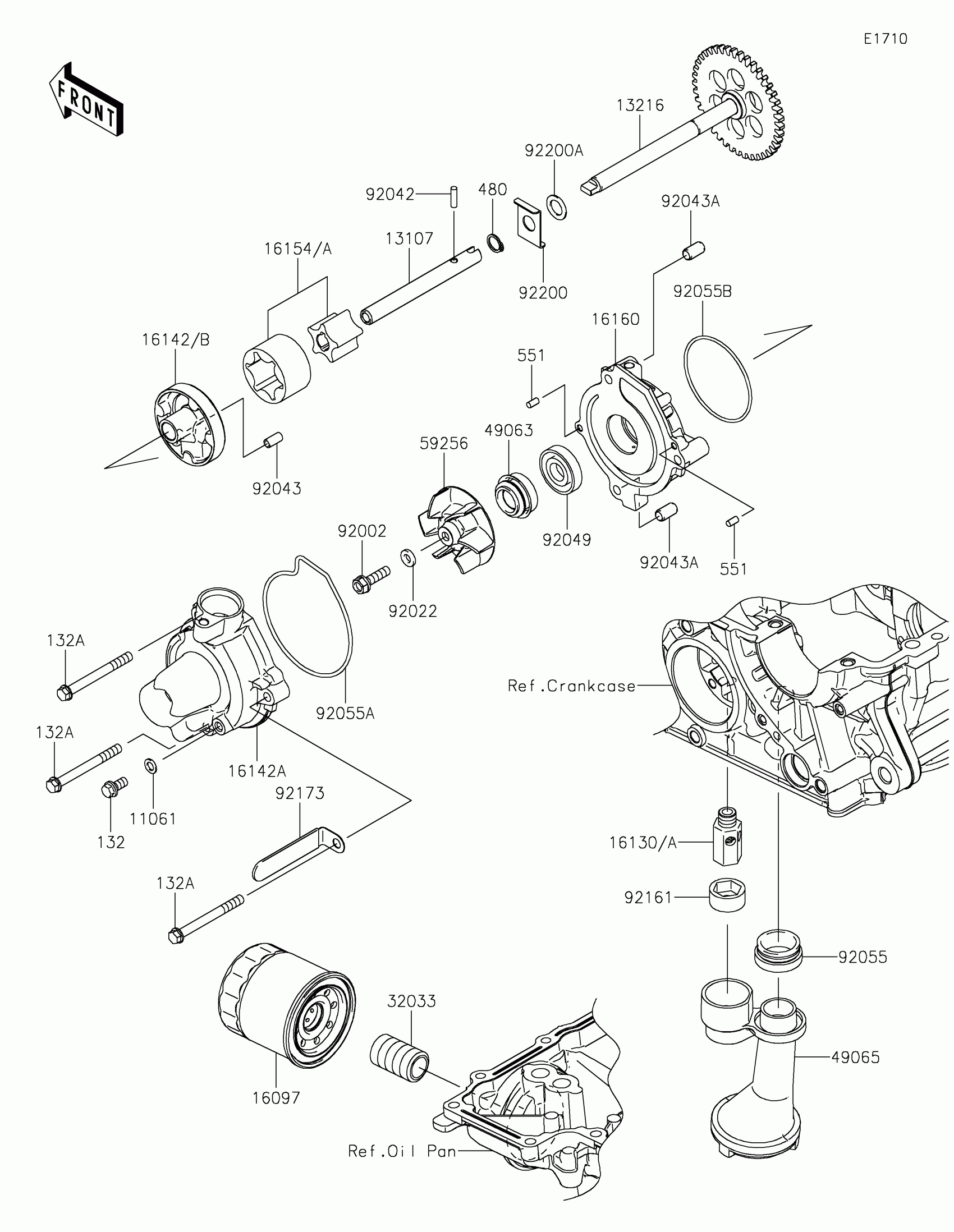

Find the part on the OIL Pump diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys® 1000 SE LT+ OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0107

1
Out of stock

13107

SHAFT

13107-0214

1
Out of stock

132

1

$1.12

In stock

13216

GEAR-COMP,OIL PUMP,41T

13216-0020

1
Out of stock

132A

1

$2.42

In stock

16097

FILTER-ASSY-OIL

16097-0008

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1
Out of stock

16142

COVER-PUMP

16142-0064

1
Out of stock

16142A

COVER-PUMP

16142-0747

1
Out of stock

16154

ROTOR-PUMP

16154-0057

1
Out of stock

16160

BODY

16160-0796

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

49065

FILTER-OIL

49065-0026

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

59256

IMPELLER

59256-0555

1
Out of stock

92002

BOLT,6X22

92002-1154

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92042

PIN,DOWEL,4X13.8

92042-030

1
Out of stock

92043

PIN,4.2X6X12

92043-1262

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL

92049-0798

1
Out of stock

92055

RING-O,OIL FILTER

92055-1503

1
Out of stock

92055A

RING-O,WATER PUMP COVER

92055-1571

1
Out of stock

92055B

RING-O,59.6X2.4

92055-3018

1
Out of stock

92161

DAMPER

92161-0070

1
Out of stock

92173

CLAMP

92173-1201

1
Out of stock

92200

WASHER

92200-0410

1
Out of stock

92200A

WASHER

92200-1009

1
Out of stock
