2024 Kawasaki Versys 1000 SE LT+ Muffler Diagram

← All diagrams

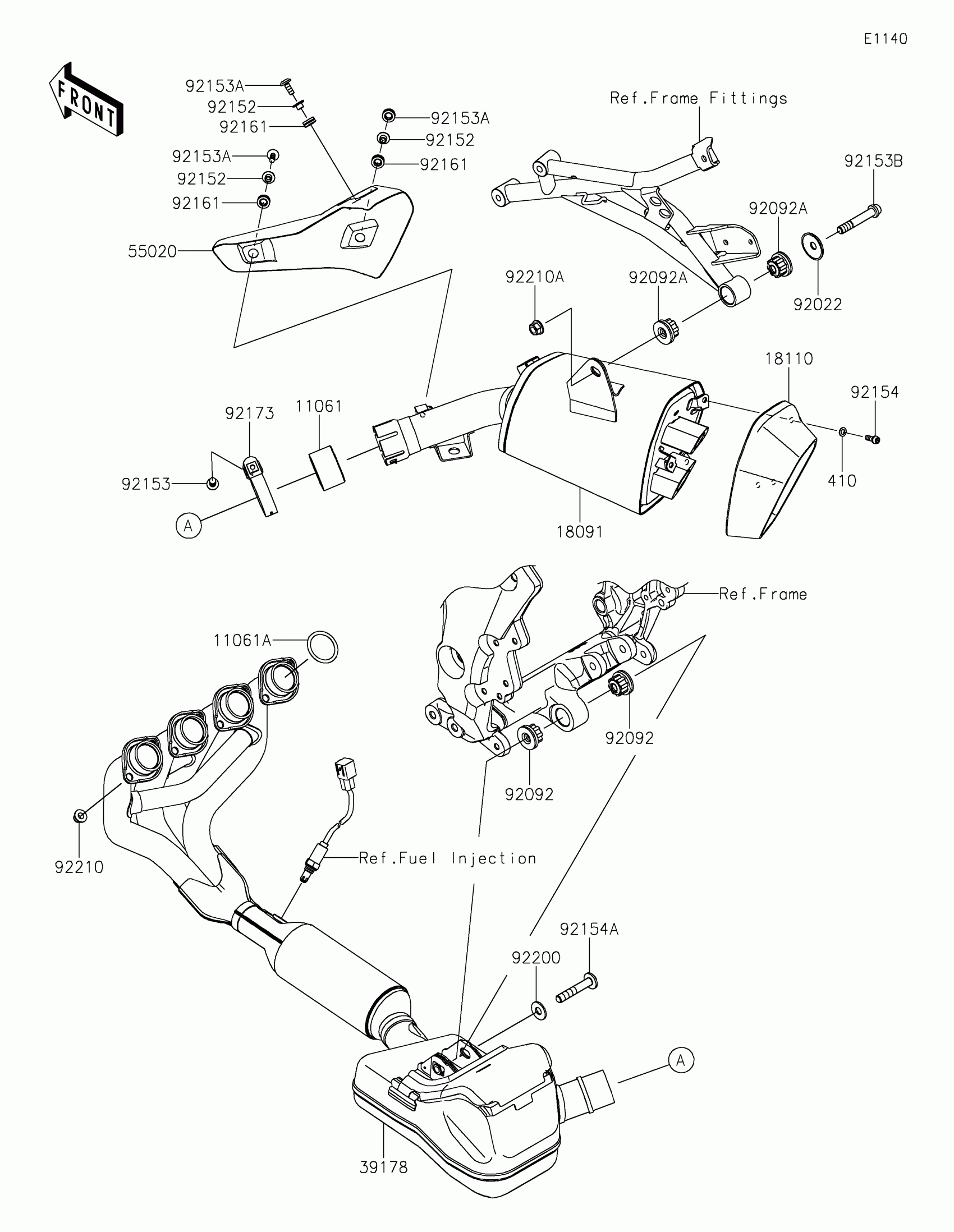

Find the part on the Muffler diagram for your 2024 Kawasaki Versys 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Versys 1000 SE LT+ Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,MUFFLER CONNECTING

11061-0726

1
Out of stock

11061A

GASKET,EXHAUST PIPE HOLDER

11061-1373

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1157

1
Out of stock

18110

BODY END-MUFFLER

18110-0208

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0431

1
Out of stock

55020

GUARD,HEAT

55020-2239

1
Out of stock

92022

WASHER

92022-289

1
Out of stock

92092

BUSHING-RUBBER

92092-1081

1
Out of stock

92092A

BUSHING-RUBBER,MUFFLER

92092-1087

1
Out of stock

92152

COLLAR,6.3X8.3X16

92152-0286

1
Out of stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92153A

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92153B

BOLT,SOCKET,10X60

92153-1837

1
Out of stock

92154

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92154A

BOLT,SOCKET,10X65

92154-2642

1
Out of stock

92161

DAMPER

92161-0306

1
Out of stock

92173

CLAMP

92173-1320

1
Out of stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

410

WASHER-PLAIN-SMALL,6MM

410S0600

1
Out of stock
