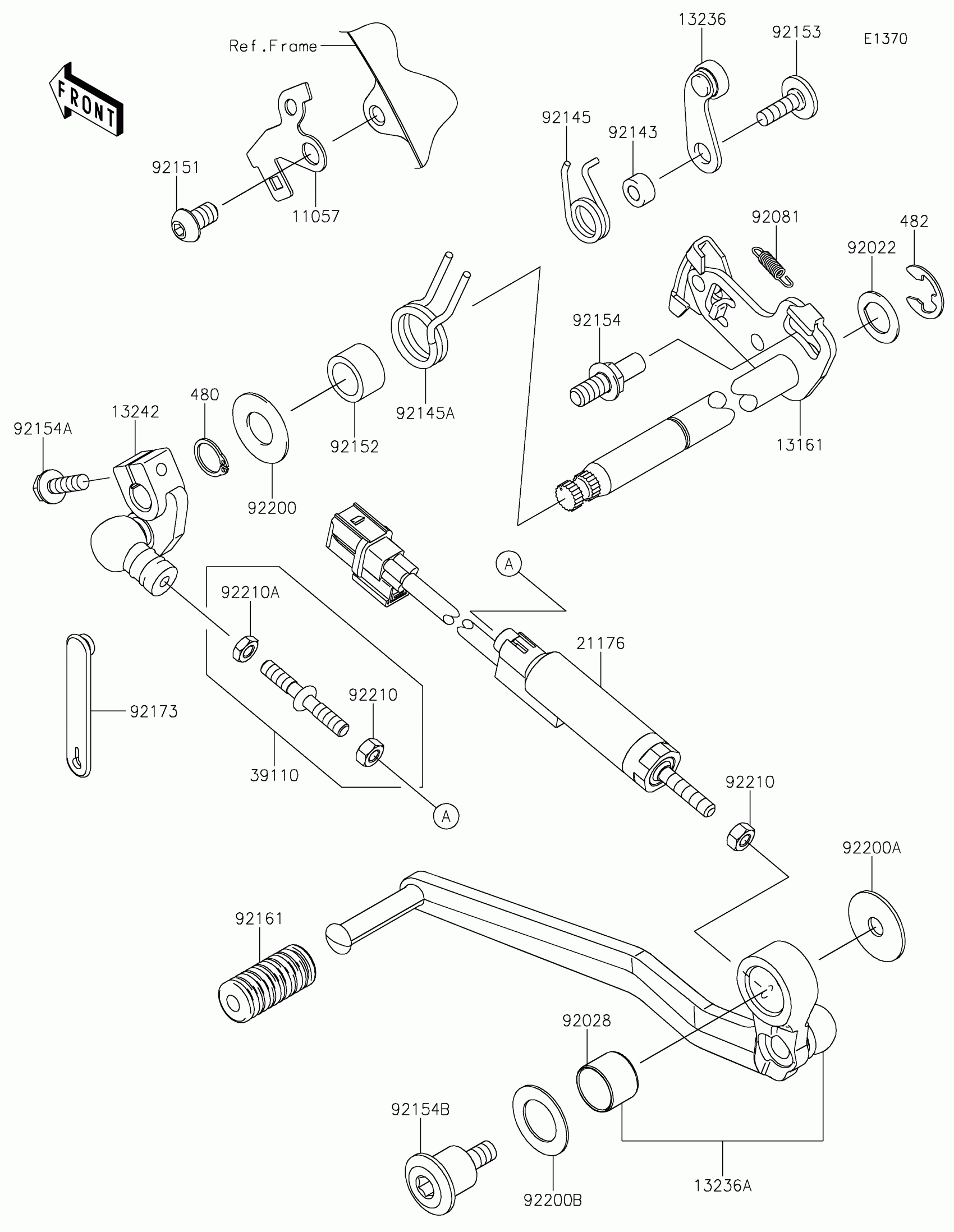

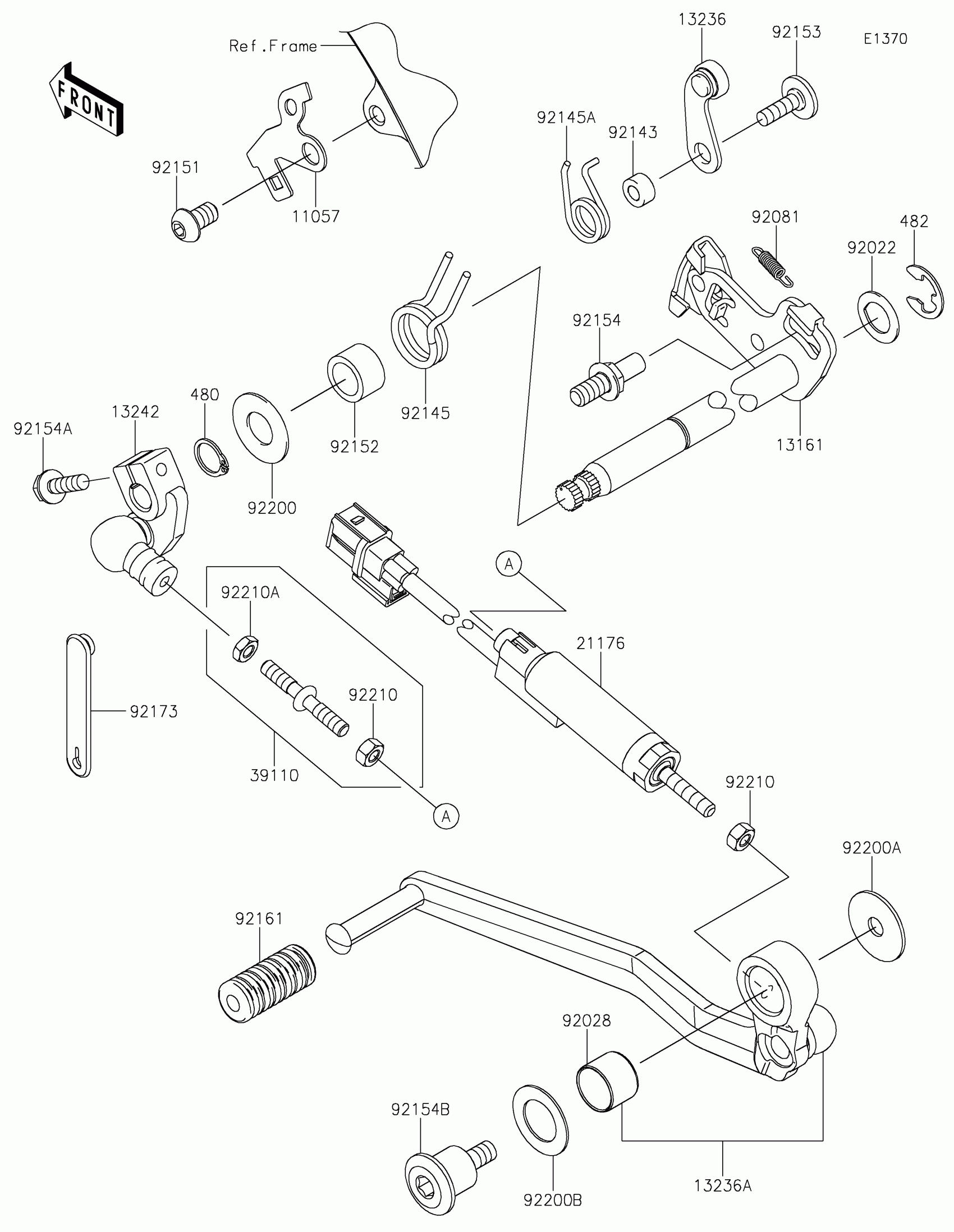

Kawasaki VERSYS® 1000 SE LT+ Gear Change Mechanism Diagram

Description

Price

11057

BRACKET,QUICK SHIFTER

11057-1984

$2.44

13161

LEVER-COMP-CHANGE SHAFT

13161-0601

$88.13

13236

LEVER-COMP

13236-0068

$12.86

13236A

LEVER-COMP,CHANGE PEDAL

13236-0812

$163.69

13242

LEVER-ASSY-CHANGE

13242-0156

$56.62

21176

SENSOR,QUICK SHIFTER

21176-0884

$226.15

39110

ROD-ASSY-TIE

39110-0048

$21.95

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92028

BUSHING

92028-1558

$9.31

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92143

COLLAR

92143-1595

$9.51

92145

SPRING

92145-1871

$11.12

92145A

SPRING,GEAR POSITION

92145-1872

$7.36

92151

BOLT,8X14

92151-1438

$2.46

92152

COLLAR,14.2X19.9X12.0

92152-1383

$4.18

92153

BOLT,6X20

92153-1505

$7.75

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92154A

BOLT,FLANGED,6X20

92154-2090

$2.75

92154B

BOLT

92154-2822

$40.66

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

92173

CLAMP

92173-1526

$3.94

92200

WASHER

92200-0265

$2.61

92200A

WASHER,8.2X30X1.5

92200-0810

$4.41

92200B

WASHER,18.3X30X1

92200-0812

$4.10

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
