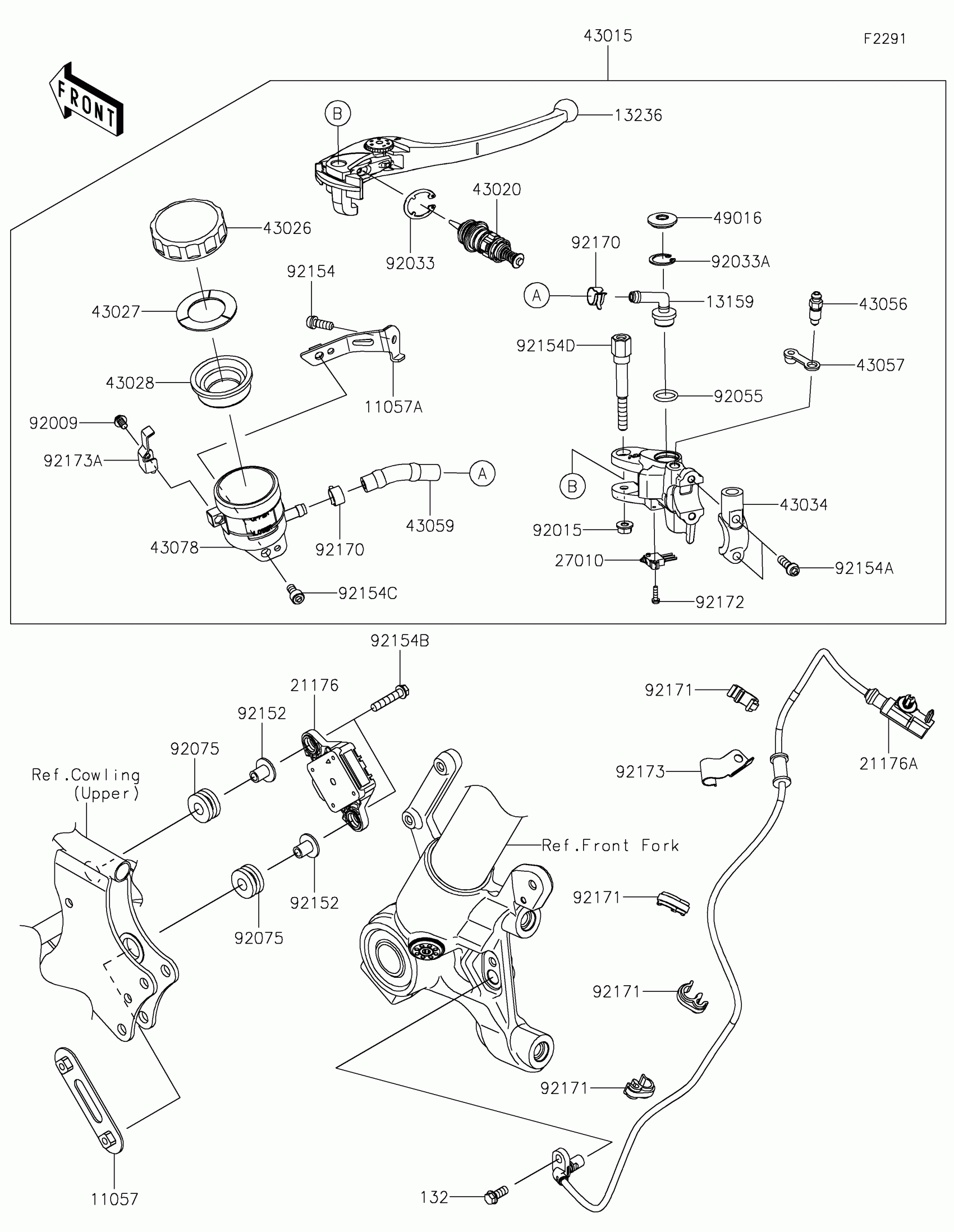

Kawasaki VERSYS® 1000 SE LT+ Front Master Cylinder Diagram

#

Description
Price

11057

BRACKET,SENSOR

11057-0381

$4.85

11057A

BRACKET,RESERVOIR

11057-1314

$10.00

13159

CONNECTOR

13159-1061

$12.96

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.49

13236

LEVER-COMP,FRONT BRAKE

13236-0814

$71.47

21176

SENSOR,INERTIAL

21176-0878

$666.31

21176A

SENSOR,SPEED,FR

21176-0880

$131.80

27010

SWITCH,BRAKE

27010-0915

$74.90

43015

CYLINDER-ASSY-MASTER,FR

43015-0748

$433.96

43020

PISTON-COMP-BRAKE

43020-0010

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0057

$23.99

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43059

HOSE-BRAKE

43059-1561

$15.50

43078

RESERVOIR

43078-0591

$30.88

49016

COVER-SEAL

49016-1147

$6.29

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92075

DAMPER,10X24X12

92075-1690

$5.00

92152

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92154

BOLT,SOCKET,6X16

92154-1454

$1.19

92154A

BOLT,SOCKET,6X22

92154-1724

$2.49

92154B

BOLT,FLANGED,6X30

92154-1857

$2.15

92154C

BOLT,SOCKET,6X8

92154-2914

$2.17

92154D

BOLT,FR M/C PIVOT

92154-3824

$7.83

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

92172

SCREW

92172-1243

$0.64

92173

CLAMP

92173-0801

$5.33

92173A

CLAMP

92173-1790

$11.55
