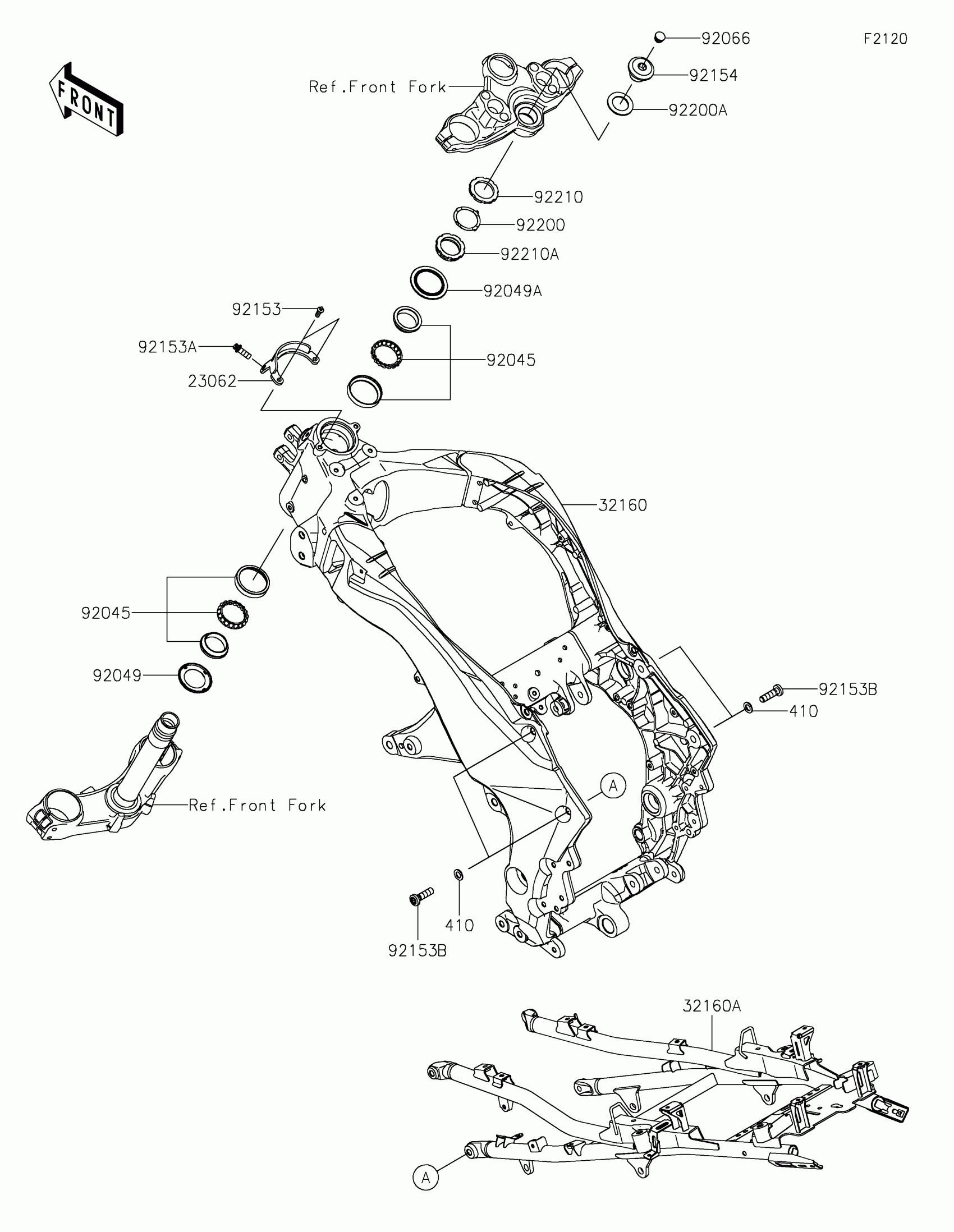

Kawasaki Versys 1000 SE LT+ Frame Diagram

Description

Price

23062

BRACKET-COMP,HANDLE LOCK

23062-1175

$37.84

32160

FRAME-COMP,MAIN,F.S.BLACK

32160-0995-18R

$2,170.03

32160A

FRAME-COMP,RR

32160-1838

$753.98

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$17.91

92066

PLUG

92066-0071

$3.35

92153

BOLT,TORX,6X16

92153-0967

$2.61

92153A

BOLT,TORX,8X22

92153-1273

$5.79

92153B

BOLT,SOCKET,10X35

92153-1904

$5.65

92154

BOLT,26MM

92154-7059

$28.76

92200

WASHER

92200-0036

$5.00

92200A

WASHER,27X42X2.3

92200-0081

$3.74

92210

NUT,35MM

92210-0095

$18.25

92210A

NUT,35MM

92210-0823

$24.27

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59
