2020 Kawasaki Versys® 1000 SE LT+ Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

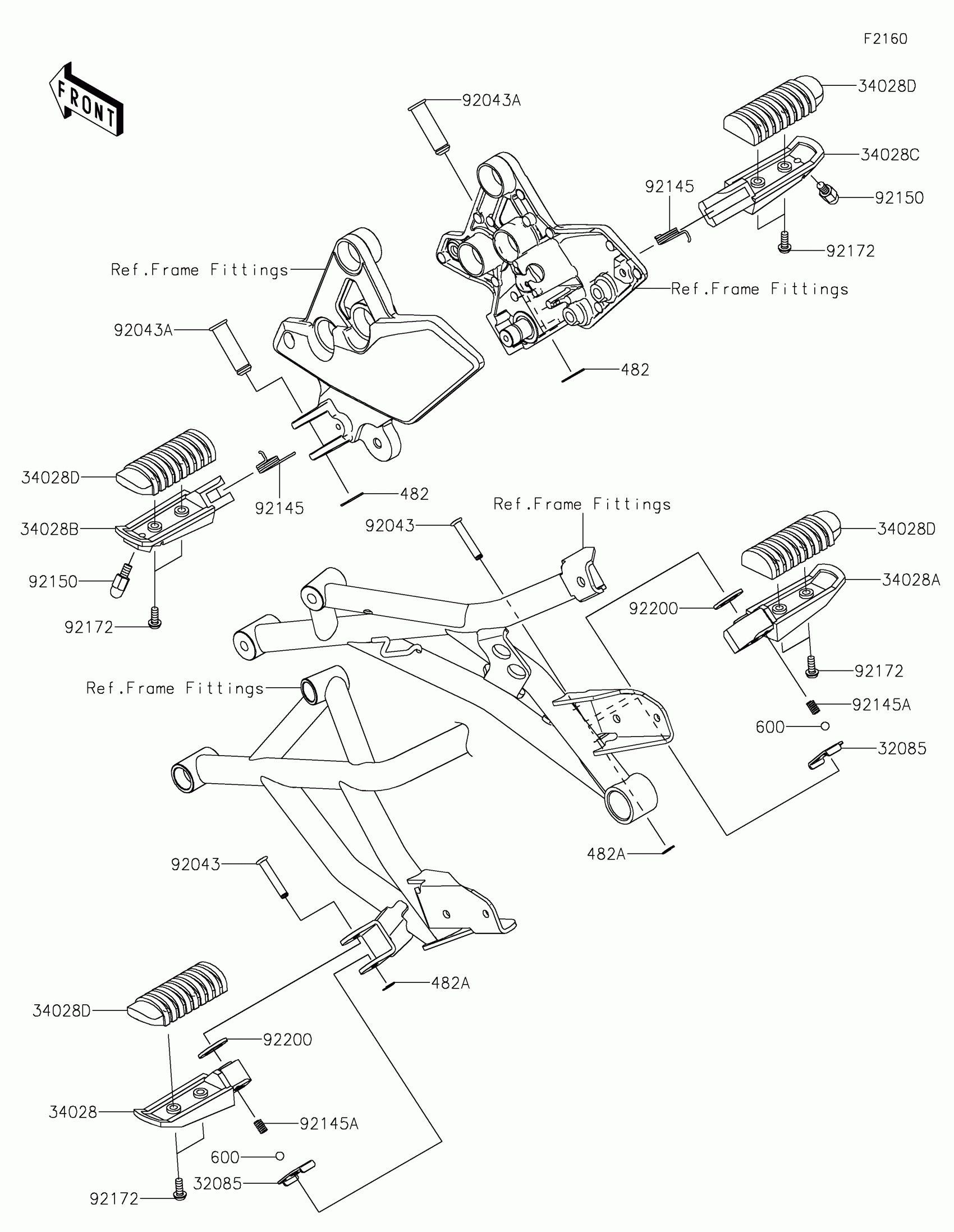

2020 Kawasaki Versys® 1000 SE LT+ Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,RR,LH

34028-0314

1

$41.49

In stock

34028A

STEP,RR,RH

34028-0315

1

$41.49

In stock

34028B

STEP,FR,LH

34028-0352

1

$37.81

In stock

34028C

STEP,FR,RH

34028-0353

1

$37.81

In stock

34028D

STEP,RUBBER

34028-1430

1

$21.09

In stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

92043

PIN,6X31.1

92043-0742

1
Out of stock

92043A

PIN,12X42.5

92043-1594

1
Out of stock

92144

SPRING,STEP RETURN

92144-1567

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92150

BOLT,BANK SENSOR

92150-1114

1
Out of stock

92172

SCREW,5X14

92172-0976

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock
