2024 Kawasaki Versys 1000 SE LT+ Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Versys 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

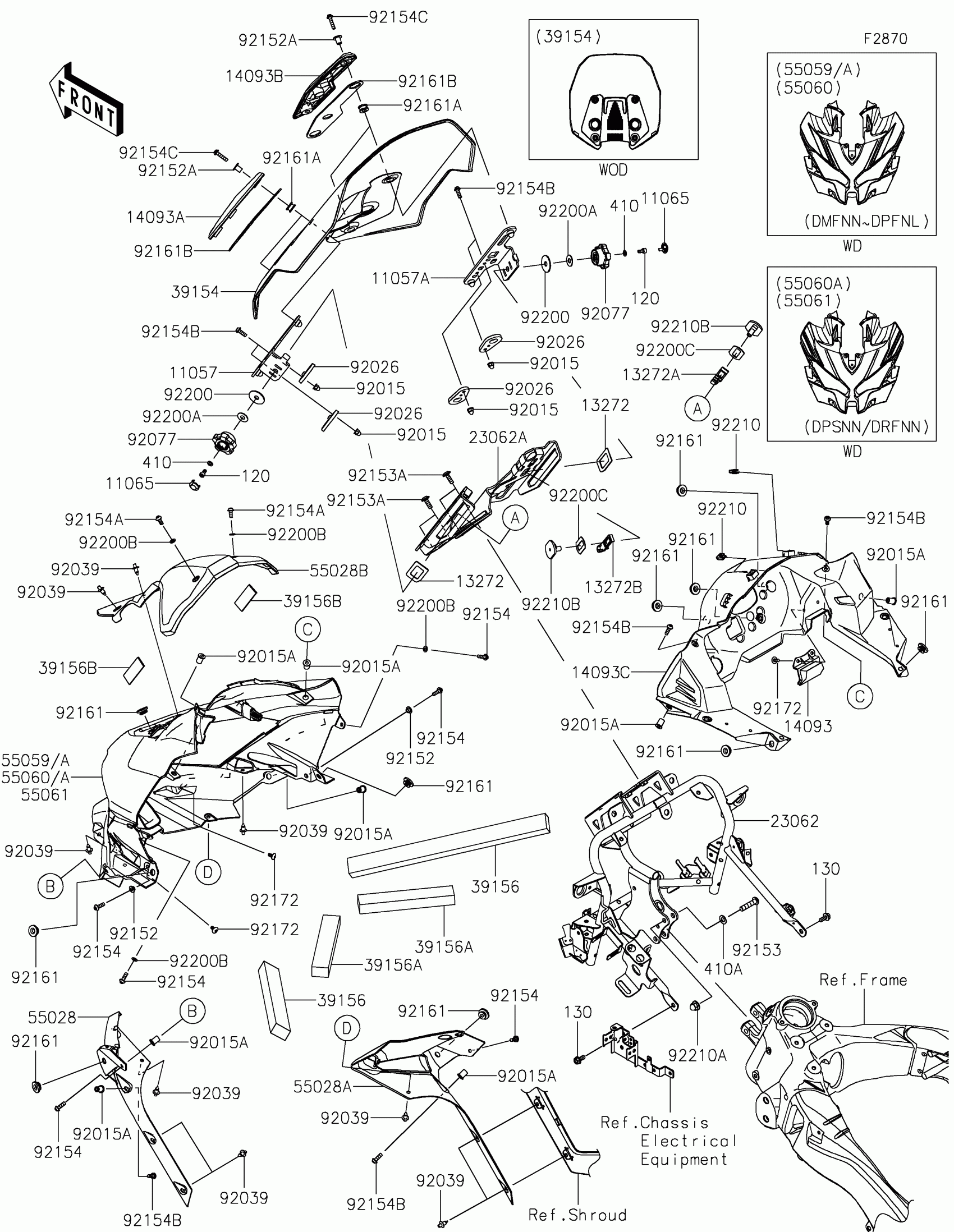

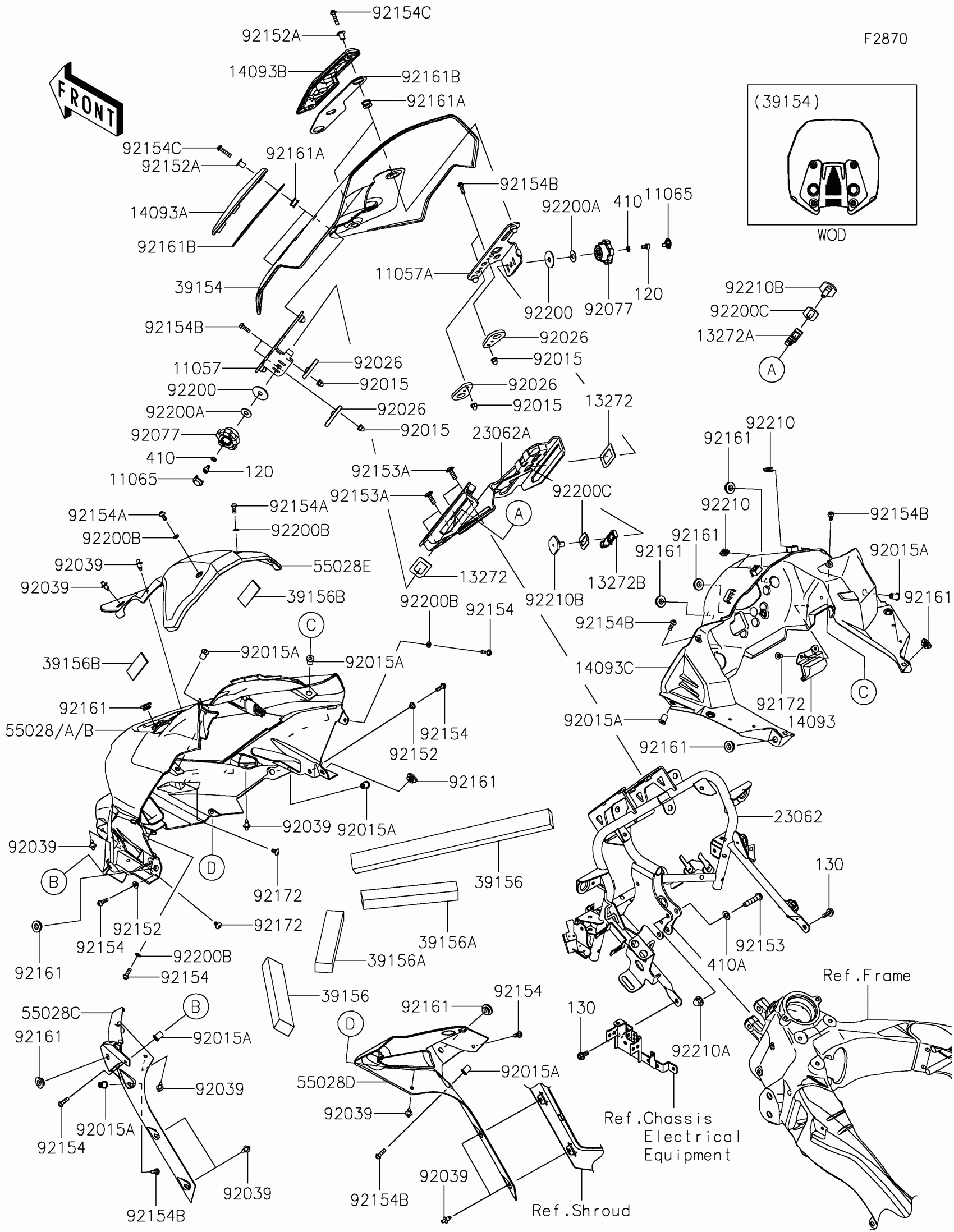

2024 Kawasaki Versys 1000 SE LT+ Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1960

1
Out of stock

11057A

BRACKET

11057-1961

1
Out of stock

11065

CAP,KNOB

11065-0734

1
Out of stock

13272

PLATE

13272-2582

1
Out of stock

13272A

PLATE

13272-2583

1
Out of stock

13272B

PLATE

13272-2584

1
Out of stock

14093

COVER,FOG SWITCH

14093-0730

1
Out of stock

14093A

COVER,LH

14093-0733

1
Out of stock

14093B

COVER,RH

14093-0734

1
Out of stock

14093C

COVER,METER

14093-0910

1
Out of stock

23062

BRACKET-COMP,COWLING

23062-1173

1
Out of stock

23062A

BRACKET-COMP,WINDSHIELD

23062-1203

1
Out of stock

39154

WINDSHIELD,LARGE

39154-0360

1
Out of stock

39156

PAD,20X370X30

39156-2435

1
Out of stock

39156A

PAD,20X170X30

39156-2436

1
Out of stock

39156B

PAD,68X20X2

39156-2472

1
Out of stock

55028

COWLING,UPP,LWR,LH

55028-0682

1
Out of stock

55028A

COWLING,UPP,LWR,RH

55028-0683

1
Out of stock

55028B

COWLING,METER VISOR

55028-0700

1
Out of stock

55059

COWLING,UPP,CNT,E.B.GREEN

55059-5253-60R

1
Out of stock

55060

COWLING,UPP,CNT,M.G.GRAY

55060-5034-45W

1
Out of stock

55060A

COWLING,UPP,M.M.S.RED

55060-5396-69E

1
Out of stock

92015

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92026

SPACER

92026-0859

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92077

KNOB,ADJUSTERS

92077-0703

1
Out of stock

92152

COLLAR

92152-0451

1
Out of stock

92152A

COLLAR

92152-2509

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92153A

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-0917

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154C

BOLT,SOCKET,5X23

92154-3820

1
Out of stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92161A

DAMPER

92161-1938

1

$2.05

In stock

92161B

DAMPER

92161-2138

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92200

WASHER,8.2X30X1.5

92200-0810

1
Out of stock

92200A

WASHER,8.2X20X1

92200-1751

1
Out of stock

92200B

WASHER,5.2X10X1.0

92200-1820

1
Out of stock

92200C

WASHER,23.5X32X1

92200-2264

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

92210A

NUT,CAP,8MM

92210-1132

1
Out of stock

92210B

NUT,5MM

92210-1723

1
Out of stock

120

BOLT-SOCKET,5X10

120CA0510

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

410

WASHER-PLAIN-SMALL

410AA0500

1
Out of stock

410A

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock
