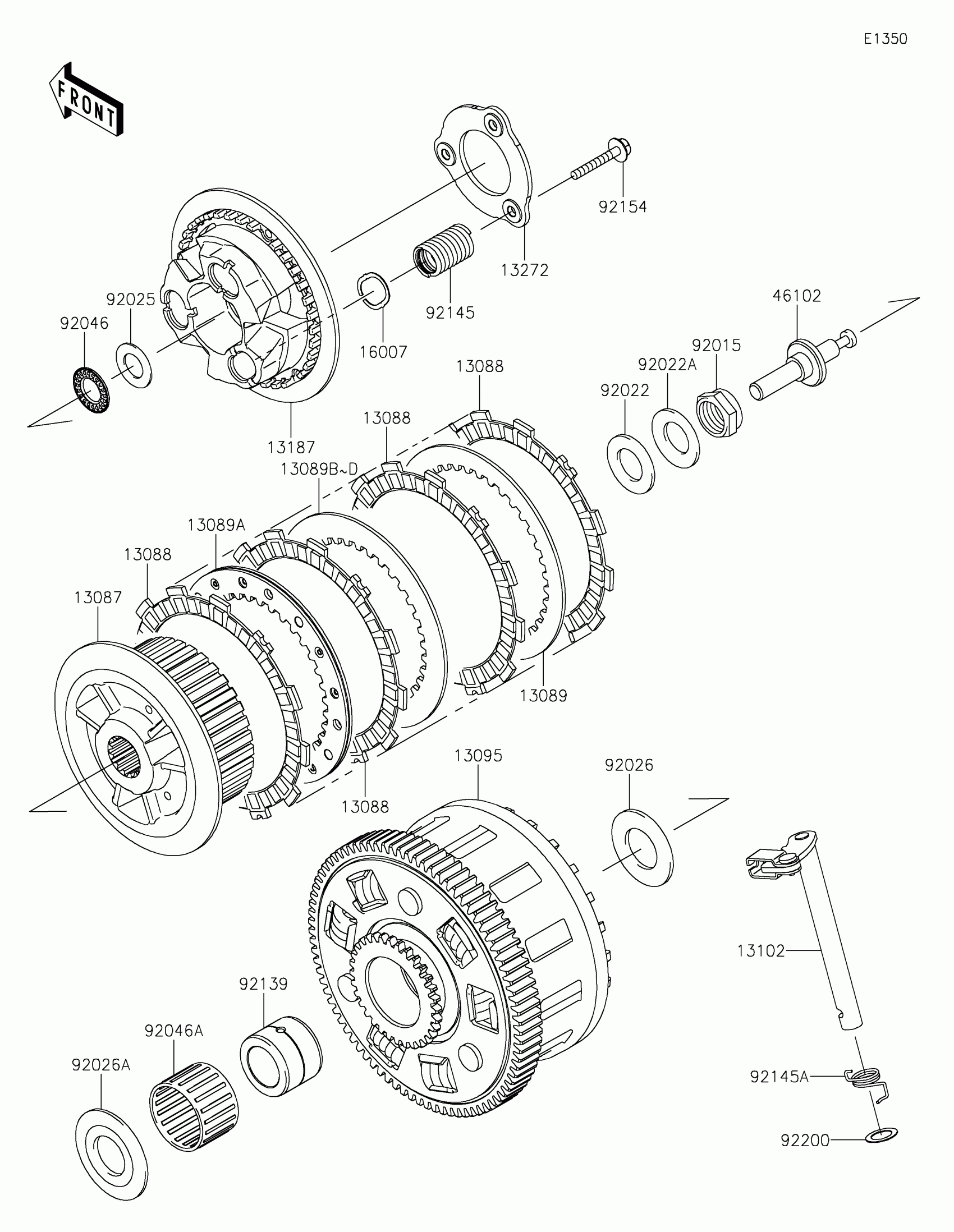

Find the part on the Clutch diagram for your 2020 Kawasaki Versys® 1000 SE LT+, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Versys® 1000 SE LT+ Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0583

1
Out of stock

13088

PLATE-FRICTION

13088-0568

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-0023

1
Out of stock

13089A

PLATE-CLUTCH,SPG COMP

13089-0024

1
Out of stock

13089B

PLATE-CLUTCH,T=2.0

13089-1073

—
Out of stock

13089C

PLATE-CLUTCH,T=2.3

13089-1084

1
Out of stock

13089D

PLATE-CLUTCH,T=2.6

13089-1115

—
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0118

1

$528.10

In stock

13102

RELEASE-COMP-CLUTCH

13102-0079

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0031

1
Out of stock

13272

PLATE

13272-1413

1

$14.14

In stock

16007

SEAT-SPRING

16007-0711

1
Out of stock

46102

ROD

46102-0630

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92022A

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92025

SHIM,15.3X27.5X1.20

92025-1137

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER

92026-1497

1
Out of stock

92046

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92046A

BEARING-NEEDLE,K38X43X28.8X

92046-1263

1
Out of stock

92139

BUSHING,25X38X29.05

92139-0067

1
Out of stock

92145

SPRING

92145-1630

1
Out of stock

92145A

SPRING,RELEASE-COMP

92145-1770

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1116

1
Out of stock

92200

WASHER,12X18.5X0.5

92200-1487

1
Out of stock
