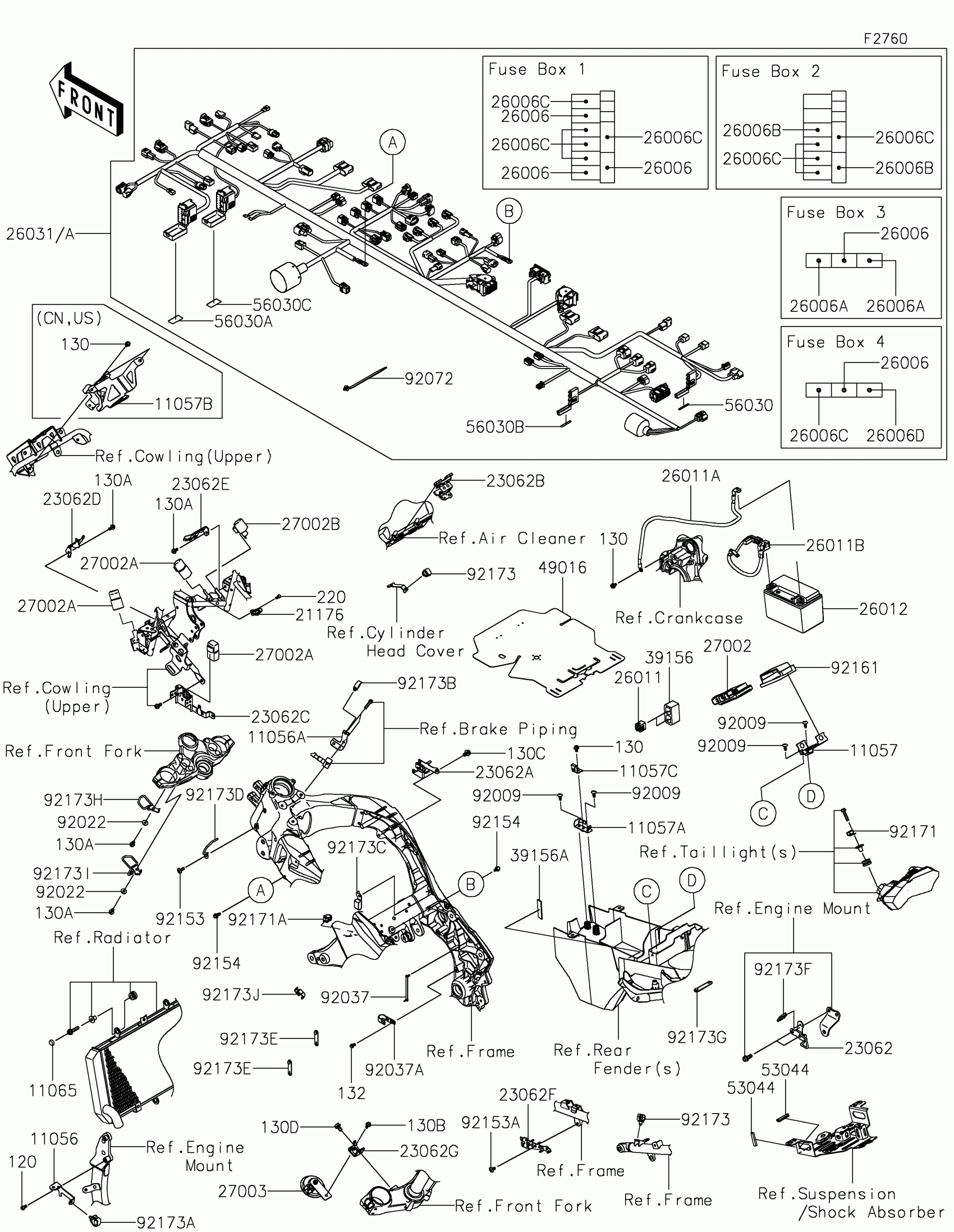

Kawasaki VERSYS® 1000 SE LT+ Chassis Electrical Equipment(DKF) Diagram

#

Description
Price

11056

BRACKET,ENGINE

11056-1478

$6.26

11056A

BRACKET,WHEEL SPEED SENSOR

11056-4165

$3.96

11057

BRACKET,RELAY BOX

11057-1688

$11.30

11057A

BRACKET,RR FENDER

11057-1707

$6.38

11057B

BRACKET,CANISTER

11057-1728

$29.81

11057C

BRACKET,WATERPROOF JOINT

11057-2454

$4.60

11065

CAP,BOLT

11065-0752

$2.30

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP,CABLE GUIDE

23062-0811

$18.95

23062A

BRACKET-COMP,A/C,RH

23062-1179

$20.77

23062B

BRACKET-COMP,A/C,RR

23062-1180

$12.58

23062C

BRACKET-COMP,IMMOBI AMP.

23062-1181

$18.06

23062D

BRACKET-COMP,DC PUT

23062-1200

$27.22

23062E

BRACKET-COMP,FOG SWITCH

23062-1201

$27.22

23062F

BRACKET-COMP,KECS HARNESS

23062-1202

$24.59

23062G

BRACKET-COMP,HORN

23062-1206

$11.02

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,BATTERY(-)

26011-1861

$50.62

26011B

WIRE-LEAD,BATTERY(+)

26011-1862

$53.78

26012

BATTERY,YTX9-BS,12V 8AH

26012-0838

Unavailable

26031

HARNESS,MAIN

26031-2632

$1,249.55

26031A

HARNESS,MAIN

26031-2634

$1,249.55

27002

RELAY-ASSY

27002-0028

$143.14

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0142

$69.87

39156

PAD,DIAG CONNECTOR

39156-2354

$5.83

39156A

PAD,15X60X2

39156-2448

$1.27

49016

COVER-SEAL

49016-0667

$36.67

53044

TRIM,L=40

53044-0662

$4.74

56030

LABEL,FUSE BOX3

56030-0400

$4.37

56030A

LABEL,FUSE BOX1

56030-1432

$3.23

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X14

130BA0614

$1.20

130C

BOLT-FLANGED,8X12

130BA0812

$0.95

130D

BOLT-FLANGED,8X14

130BA0814

$2.16

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

220

SCREW-PAN-CROS,5X16

220AB0516

$1.74

56030B

LABEL,FUSE BOX4

56030-1436

$3.23

56030C

LABEL,FUSE BOX2

56030-1438

$3.23

92009

SCREW,TAPPING

92009-1113

$3.92

92022

WASHER

92022-2247

$0.62

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037A

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92153A

BOLT,SOCKET,6X12

92153-1948

$1.78

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92171

CLAMP

92171-0813

$8.68

92171A

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173C

CLAMP,84MM

92173-1008

$5.33

92173D

CLAMP,IRON WIRE

92173-1199

$5.98

92173E

CLAMP,RUBBER PLATE

92173-1229

$3.94

92173F

CLAMP,CABLE CLIP

92173-1242

$1.71

92173G

CLAMP

92173-1526

$3.94

92173H

CLAMP,FRONT FORK,LH

92173-1914

$24.59

92173I

CLAMP,FRONT FORK,RH

92173-1915

$24.59

92173J

CLAMP

92173-1971

$3.21
