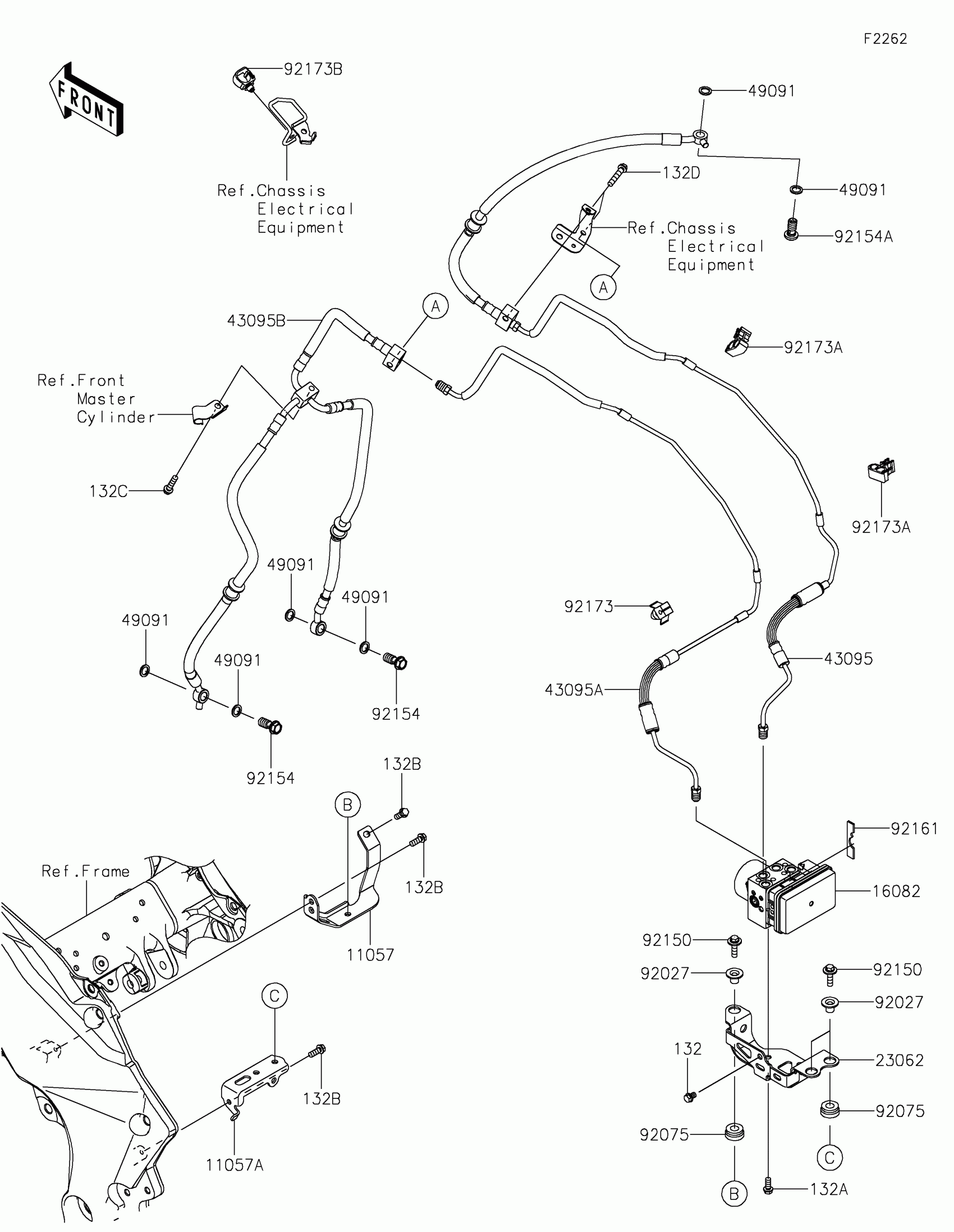

Kawasaki VERSYS® 1000 SE LT+ Brake Piping Diagram

Description

Price

11057

BRACKET,FR

11057-1705

$9.49

11057A

BRACKET,RR

11057-1706

$8.98

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$2.49

132A

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

132B

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132C

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132D

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

16082

PUMP-ASSY-OIL,ABS,9.1MP

16082-0804

$1,563.34

23062

BRACKET-COMP,ABS

23062-1177

$18.06

43095

HOSE-BRAKE,FR M/CYL.-ABS HU

43095-1584

$225.31

43095A

HOSE-BRAKE,ABS HU-CALIPER

43095-1587

$161.28

43095B

HOSE-BRAKE,HEAD PIPE-CALIPER

43095-1588

$240.36

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92150

BOLT,FLANGED,6X22

92150-1481

$4.31

92154

BOLT,BANJO,10X23

92154-1712

$3.94

92154A

BOLT,BANJO,10X21

92154-3834

$29.05

92161

DAMPER

92161-1673

$2.00

92173

CLAMP

92173-0088

$3.65

92173A

CLAMP,CLIP

92173-0799

$14.90

92173B

CLAMP,HOLDER CLIP

92173-0868

$3.02
