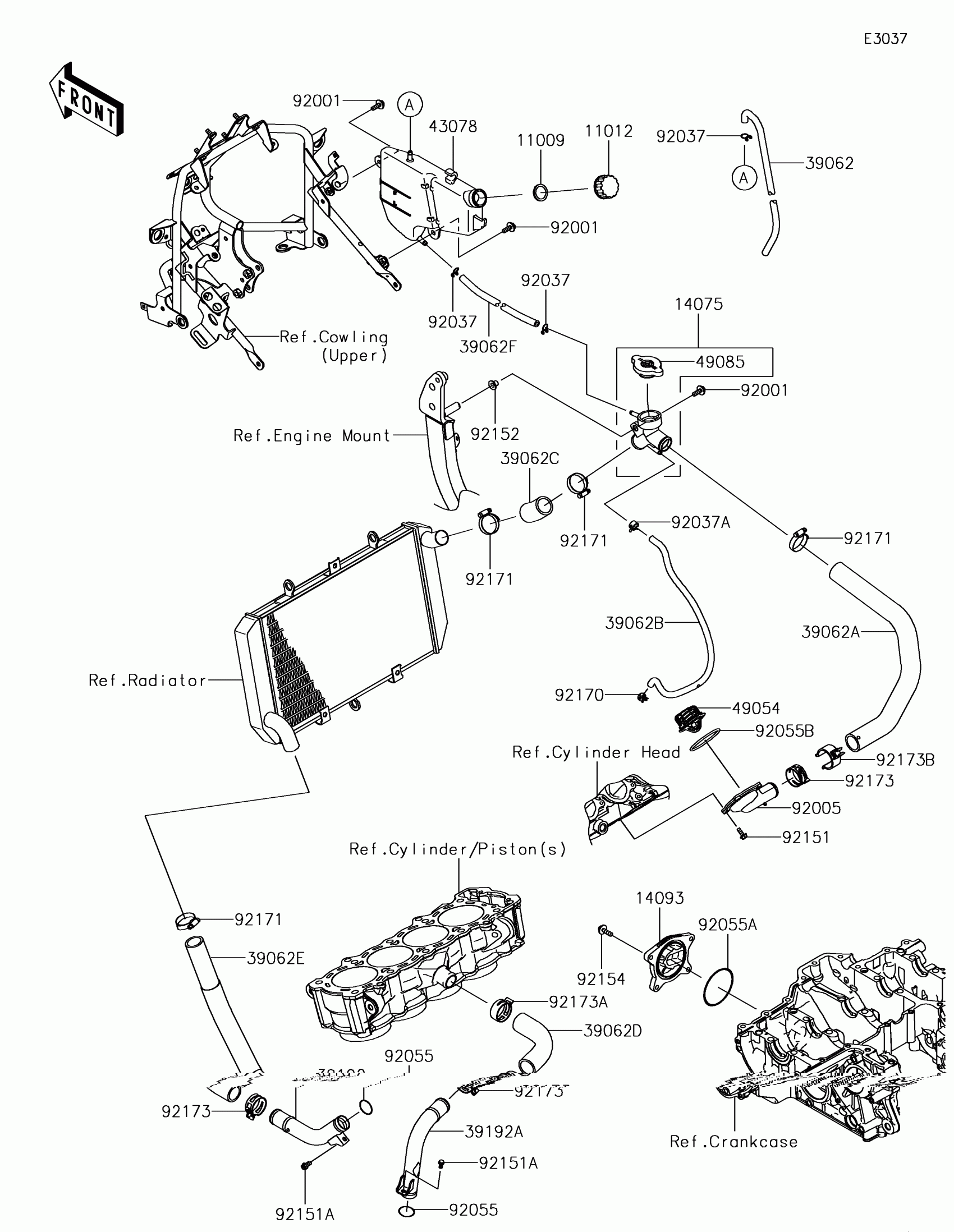

Kawasaki VERSYS® 1000 LT Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

14075

CAP-ASSY

14075-0028

$153.78

14093

COVER

14093-0144

$39.80

39062

HOSE-COOLING,OVER FLOW

39062-0590

$17.14

39062A

HOSE-COOLING,HEAD-CAP

39062-0591

$44.20

39062B

HOSE-COOLING,AIR BLEED

39062-0699

$11.33

39062C

HOSE-COOLING,CAP-RAD.

39062-0727

$7.52

39062D

HOSE-COOLING,PIPE-CYLINDER

39062-0757

$18.52

39062E

HOSE-COOLING,RAD.-PIPE

39062-0768

$48.88

39062F

HOSE-COOLING,OVERFLOW

39062-1814

$23.17

39192

PIPE-WATER,RADIATOR-WATER PUMP

39192-0631

$43.13

39192A

PIPE-WATER,WATER PUMP-CYLINDER

39192-0632

$43.03

43078

RESERVOIR

43078-0074

$44.88

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92001

BOLT,6X18

92001-1342

Unavailable

92005

FITTING,THERMO CAP

92005-0842

$79.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,20.8X2.4

92055-0114

$3.90

92055A

RING-O,63.3MM

92055-0739

$4.10

92055B

RING-O,53.5X2.6

92055-0831

$7.85

92151

BOLT,5X14

92151-1764

$2.41

92151A

BOLT,6X12

92151-1997

$1.54

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92154

BOLT,FLANGED,6X22

92154-0403

$3.35

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92173

CLAMP,34MM

92173-1360

$3.96

92173A

CLAMP,35.5MM

92173-1432

$3.56

92173B

CLAMP

92173-1438

$3.60
