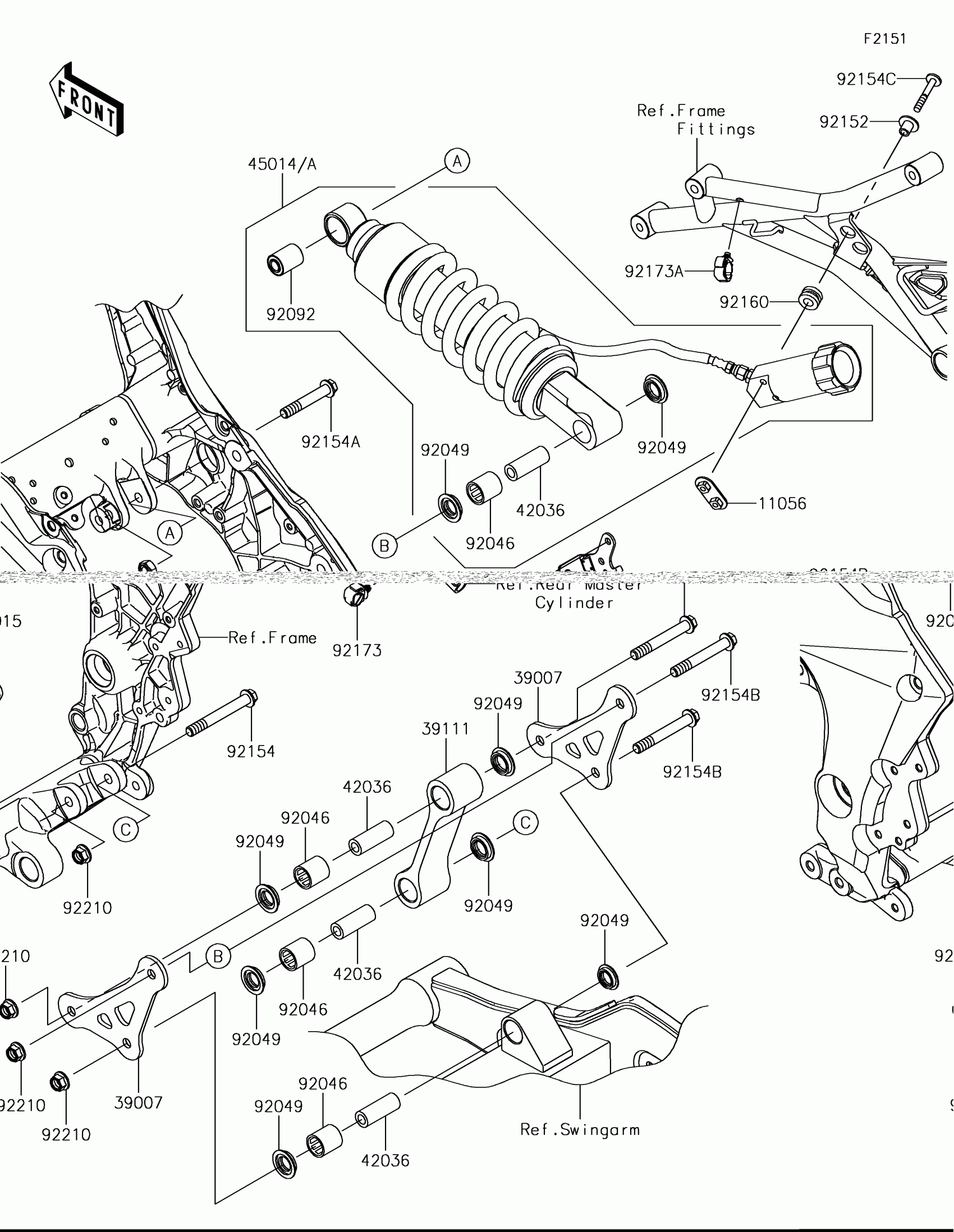

Kawasaki VERSYS® 1000 LT Suspension/Shock Absorber Diagram

Description

Price

11056

BRACKET

11056-1914

$5.65

39007

ARM-SUSP,F.S.BLACK

39007-0356-18R

$45.32

39111

ROD-TIE

39111-0311

$85.04

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

45014

SHOCKABSORBER,P.SILVER

45014-0474-37Y

$1,054.59

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-1058

$29.88

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92154

BOLT,FLANGED,10X77

92154-0262

$5.59

92154A

BOLT,FLANGED,10X60

92154-0263

$5.29

92154B

BOLT

92154-0890

$10.90

92154C

BOLT,SOCKET,6X42

92154-1006

$0.58

92160

DAMPER,10X20X12

92160-1167

$4.69

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP,HOLDER CLIP

92173-0868

$3.02

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
