Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.64

13107

SHAFT,IDLER GEAR

13107-1377

$6.22

13194

CLUTCH-ONEWAY

13194-1096

$106.12

13280

HOLDER,MAGNETIC SWITCH

13280-0814

$11.88

14092

COVER

14092-0109

$9.50

16073

INSULATOR

16073-0053

$11.93

16085

GEAR,CLUTCH ONEWAY

16085-0609

$125.33

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0748

$605.62

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD

26011-0768

$43.41

27010

SWITCH

27010-0770

$108.75

461

WASHER-SPRING,5MM

461DB0500

$1.50

59051

GEAR-SPUR,IDLER

59051-0762

$93.61

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92048

RACE

92048-0018

$63.92

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0024

$10.21

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92153

BOLT

92153-1850

$11.93

92153A

BOLT

92153-1866

$4.65

92154

BOLT,TORX,6X14

92154-1225

$1.71

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92210

NUT,6MM

92210-0188

$2.15

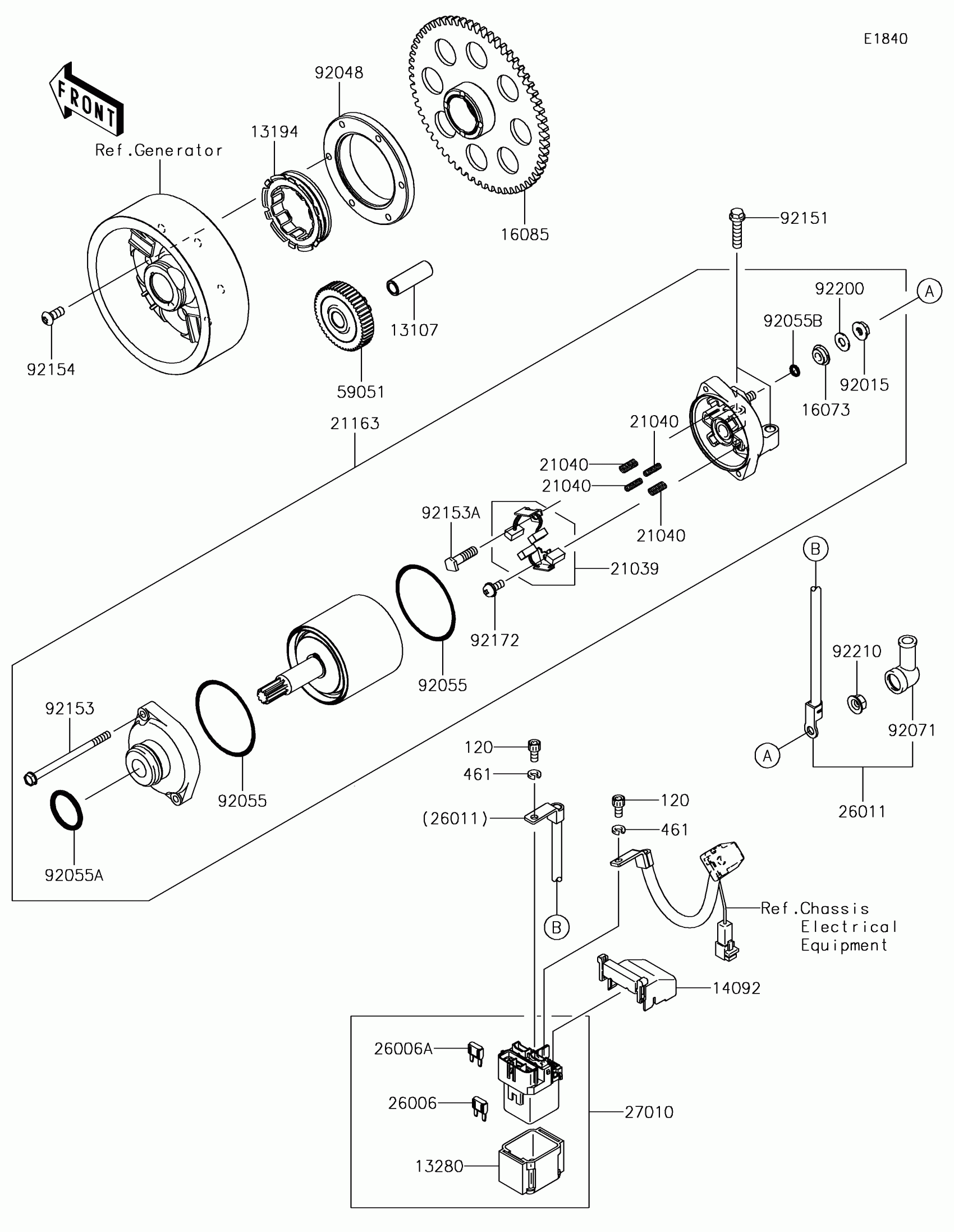

Kawasaki VERSYS® 1000 LT Starter Motor Diagram

BOLT-SOCKET,5X10

SHAFT,IDLER GEAR

CLUTCH-ONEWAY

HOLDER,MAGNETIC SWITCH

COVER

INSULATOR

GEAR,CLUTCH ONEWAY

BRUSH,CARBON

SPRING-BRUSH

STARTER-ELECTRIC

FUSE,MINI BLADE,15A,BLUE

FUSE,MINI BLADE,30A,GREEN

WIRE-LEAD

SWITCH

WASHER-SPRING,5MM

GEAR-SPUR,IDLER

NUT,STARTER MOTOR

RACE

RING-O

RING-O

RING-O,4.5X2.0

GROMMET

BOLT,FLANGED-SMALL,6X25

BOLT

BOLT

BOLT,TORX,6X14

SCREW

WASHER

NUT,6MM
