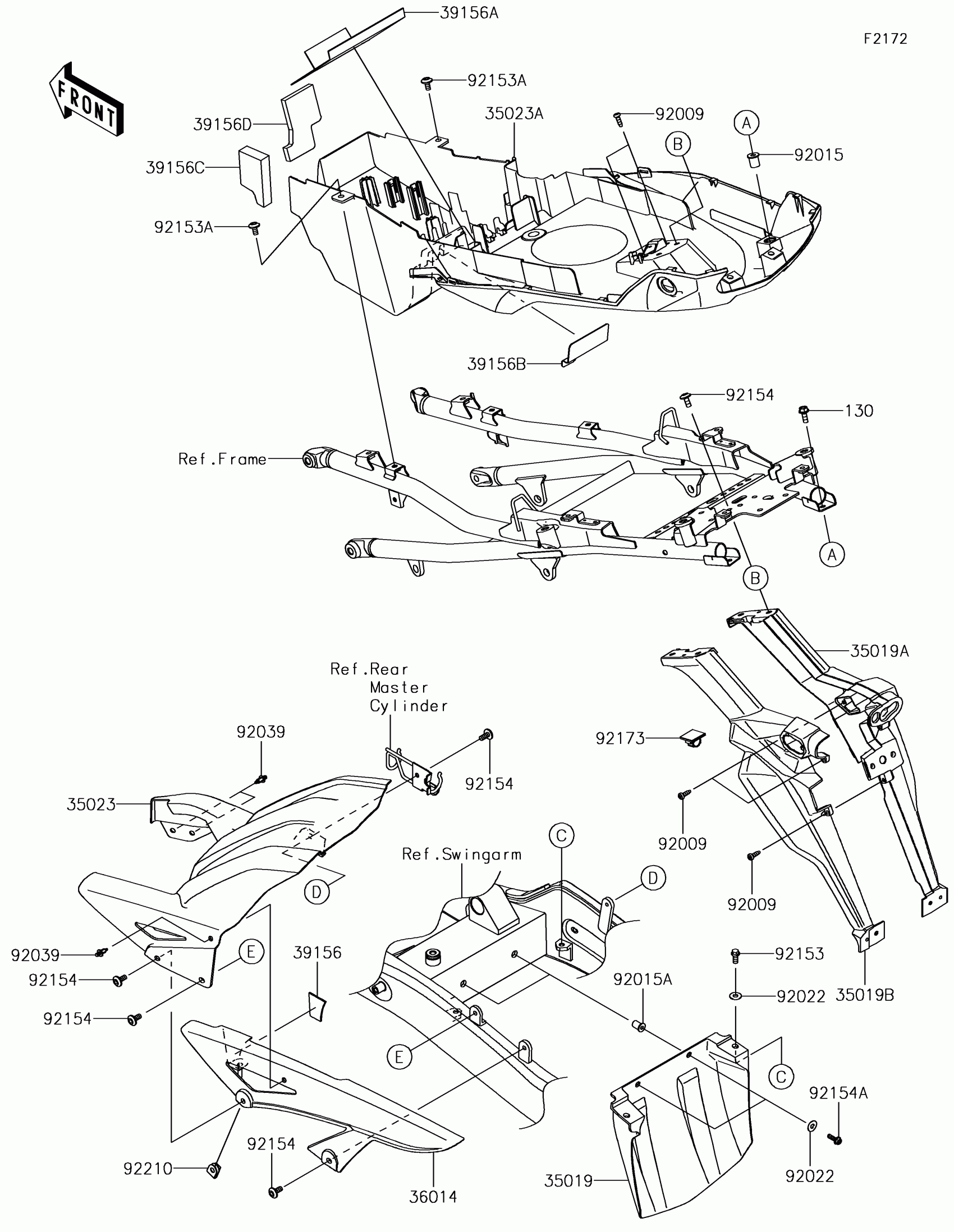

Kawasaki VERSYS® 1000 LT Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130CA0618

$1.78

35019

FLAP,RR

35019-0563

$32.36

35019A

FLAP,RR,RH

35019-0586

$35.12

35019B

FLAP,RR,LH

35019-0596

$32.12

35023

FENDER-REAR,INNER

35023-0336

$64.61

35023A

FENDER-REAR

35023-0425

$175.30

36014

CASE-CHAIN

36014-0557

$39.77

39156

PAD,CHAIN CASE

39156-0816

$3.32

39156A

PAD,BATTERY

39156-0893

$26.91

39156B

PAD,60X76X1

39156-1863

$8.49

39156C

PAD,82X45X15

39156-1864

$8.22

39156D

PAD,72X85X8

39156-1865

$8.49

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92039

RIVET

92039-0060

$3.39

92153

BOLT

92153-1805

$2.61

92153A

BOLT,SOCKET,6X12

92153-1948

$1.78

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,FLANGED,5X16

92154-1004

$1.19

92173

CLAMP,DRAIN

92173-1055

$6.34

92210

NUT,6MM

92210-0277

$4.92
