Description

Price

130

BOLT-FLANGED,6X22

130BA0622

$1.29

130A

BOLT-FLANGED,6X70

130BB0670

$5.93

14069

BREATHER,TANK

14069-0008

$6.89

32052

BRACKET-TANK,F.S.BLACK

32052-0749-18R

$49.33

39156

PAD,FUEL TANK,RR

39156-0982

$7.34

39156A

PAD,25X260X10

39156-1866

$3.72

51001

TANK-COMP-FUEL,M.S.BLACK

51001-0816-660

$1,263.10

51049

CAP-TANK,FUEL

51049-0039

$136.23

53044

TRIM

53044-1296

$11.99

702

TUBE-RUBBER,6X200

702A06200

$8.98

702A

TUBE-RUBBER,6X9X450

702A06450

$1.50

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,6.8X10X60

92152-1182

$4.83

92152A

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92161

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92161A

DAMPER,30X48X3

92161-1768

$5.25

92161B

DAMPER,25X25X2

92161-1770

$1.17

92192

TUBE,6X9X926(30)

92192-1024

$24.04

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

92037

CLAMP,TUBE

92037-010

$3.92

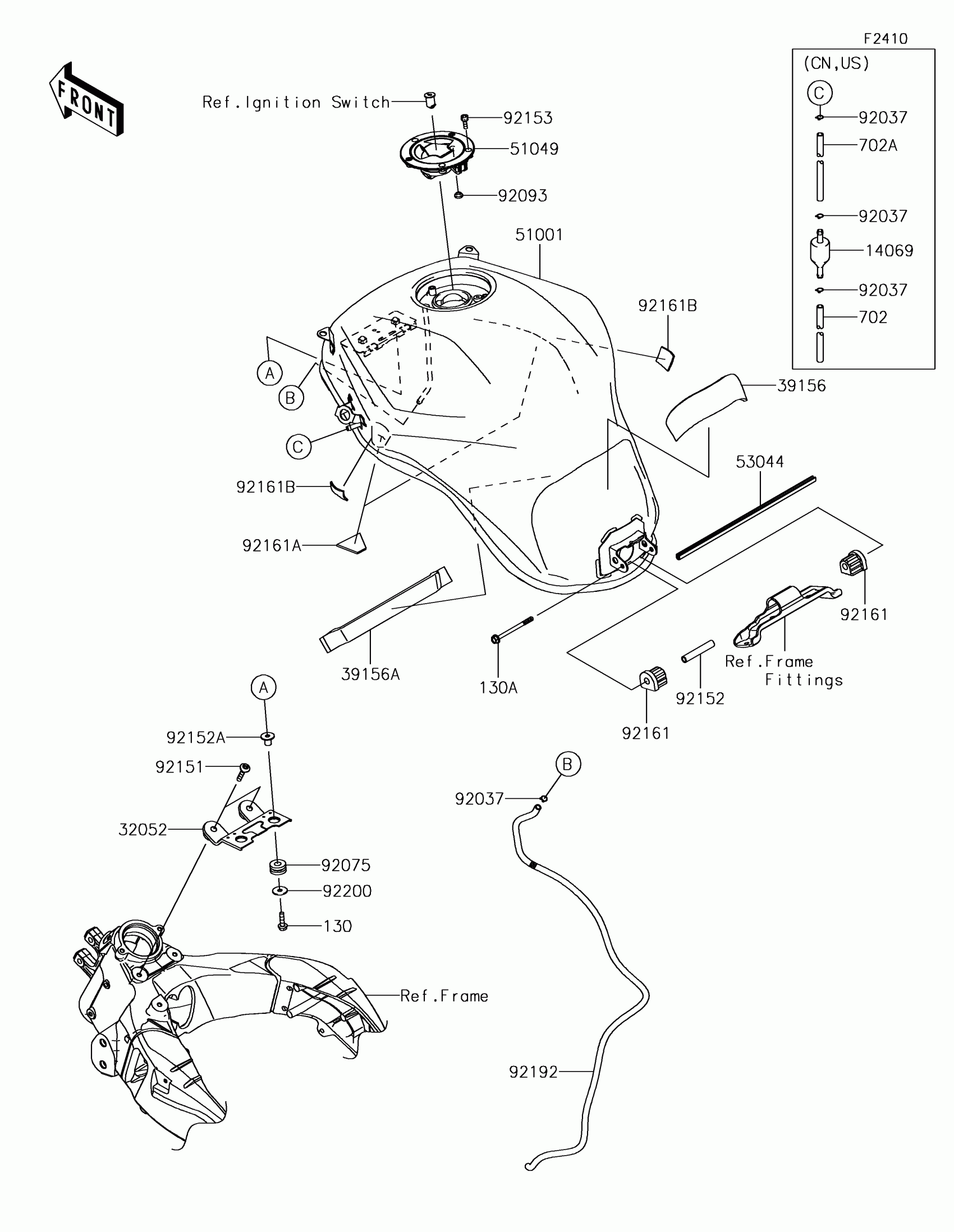

Kawasaki VERSYS® 1000 LT Fuel Tank Diagram

BOLT-FLANGED,6X22

BOLT-FLANGED,6X70

BREATHER,TANK

BRACKET-TANK,F.S.BLACK

PAD,FUEL TANK,RR

PAD,25X260X10

TANK-COMP-FUEL,M.S.BLACK

CAP-TANK,FUEL

TRIM

TUBE-RUBBER,6X200

TUBE-RUBBER,6X9X450

CLAMP,TUBE

DAMPER,10X24X12

SEAL,FUEL TANK CAP

BOLT,SOCKET,6X30

COLLAR,6.8X10X60

COLLAR,6.3X9.5X14.1

BOLT,SOCKET,5X16

DAMPER,FUEL TANK,RR

DAMPER,30X48X3

DAMPER,25X25X2

TUBE,6X9X926(30)

WASHER,6.5X22X1.6

CLAMP,TUBE
