2018 Kawasaki Versys® 1000 LT Fuel Evaporative System Diagram

← All diagrams

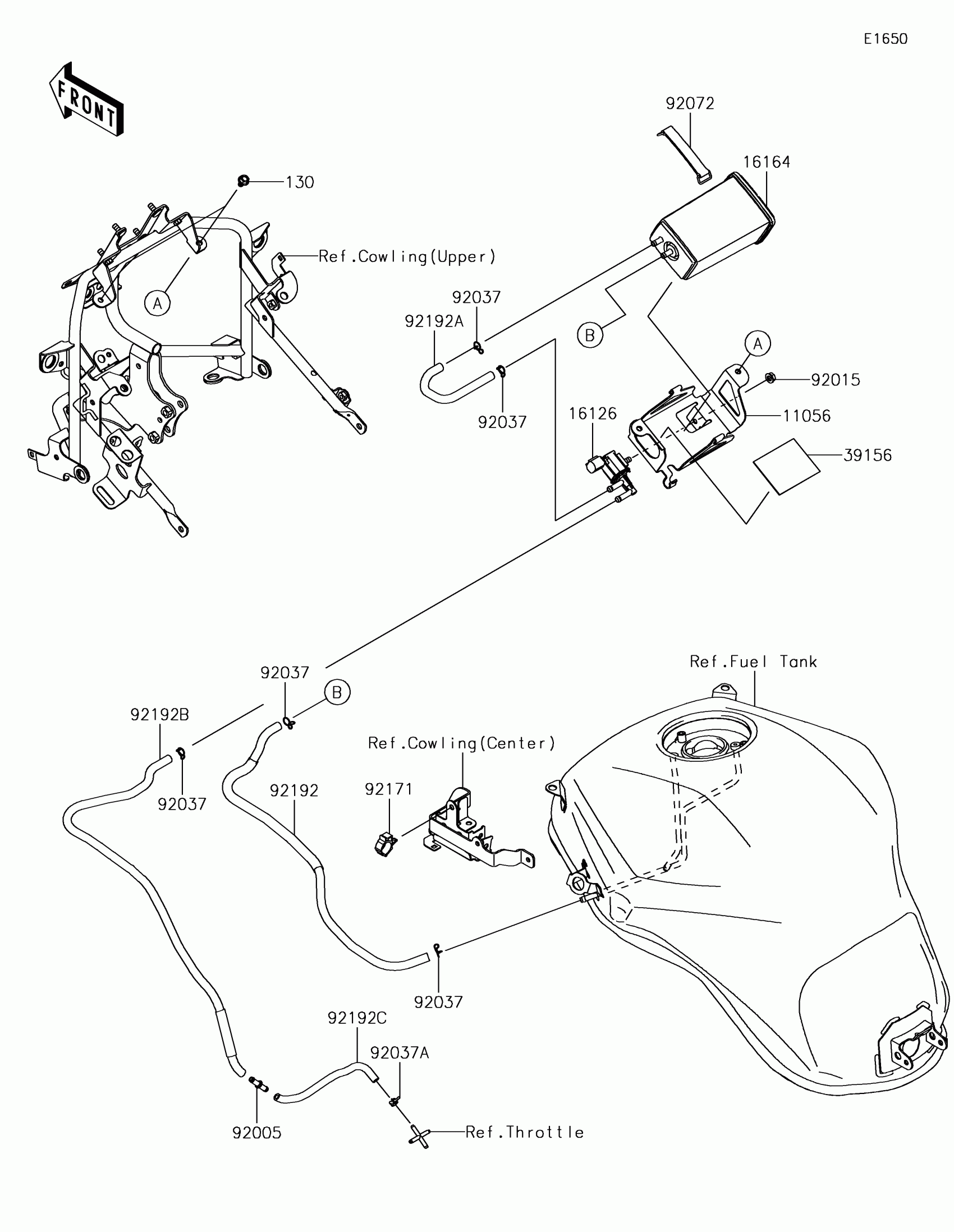

Find the part on the Fuel Evaporative System diagram for your 2018 Kawasaki Versys® 1000 LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Kawasaki Versys® 1000 LT Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CANISTER

11056-4205

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

39156

1

$3.27

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP

92037-1712

1
Out of stock

92037A

CLAMP,7.8MM

92037-2116

1
Out of stock

92072

BAND,TOOL,L=82

92072-1294

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92192

TUBE,TANK-CANISTER

92192-1764

1
Out of stock

92192A

TUBE,CANISTER-VALVE

92192-1765

1
Out of stock

92192B

TUBE,VALVE-THB(VALVE SIDE)

92192-1766

1
Out of stock

92192C

TUBE,VALVE-THB(THB SIDE)

92192-1767

1
Out of stock
